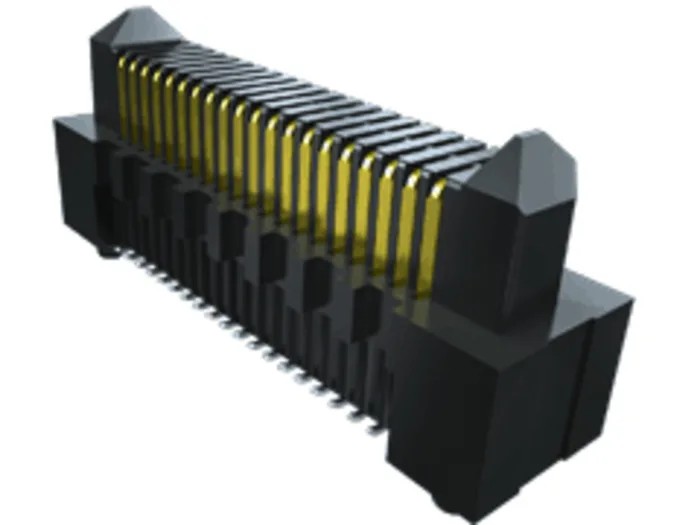

Samtec ERM8 Series Straight Surface PCB Header 80 Contacts 0.8 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 318V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.2A |
| Model | ERM8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ERM8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Positions | Up to 200 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 80 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
| Stack Height | 7.00 mm - 16.00 mm |
Key Features
- This PCB header features a shrouded design for added protection and durability.
- Its contacts are made of phosphor bronze with gold plating to ensure excellent conductivity and corrosion resistance.
- Designed with 2 rows and a 0.8 mm row pitch for compact integration.
- Suitable for surface mount applications with a straight orientation for easy PCB installation.
- Operates reliably across a temperature range from -55°C up to 125°C.
- Rated for 2.2A current and voltage up to 318V, supporting rugged industrial performance.
- Constructed with a high-performance liquid crystal polymer housing for durability and electrical insulation.
- Stack height ranges between 7.00 mm and 16.00 mm, catering to various application requirements.
Product Description
Samtec ERM8-030-05.0-S-DV-L-K-TR Straight Surface PCB Header is a high-quality connector designed for demanding electronic applications. Featuring 80 male contacts arranged in two rows with a precise 0.8 mm pitch, this shrouded header offers robust board-to-board connection capability ideal for industrial, manufacturing, electronics, and communication equipment.
The connector utilizes phosphor bronze contact material with gold plating, ensuring excellent conductivity, wear resistance, and corrosion protection for long-term operation. The housing is made from liquid crystal polymer, known for its outstanding mechanical strength and electrical insulation properties, enabling the header to perform reliably within a wide temperature range from -55°C to 125°C.
With a generous stack height between 7.00 mm and 16.00 mm, this component supports flexible design architectures. Rated for continuous current up to 2.2A and voltage up to 318V, the ERM8 series header is suitable for rugged applications requiring high-speed signal integrity and durability. Its straight orientation and surface mount design facilitate easy, secure installation on printed circuit boards.
This PCB header features a shrouded design for enhanced protection and durable connections. Phosphor bronze contacts with gold plating ensure superior conductivity and corrosion resistance. Two rows with 80 contacts and 0.8 mm pitch provide compact and reliable connectivity.
Supports operating temperatures from -55°C to 125°C for versatile industrial use. Rated for 2.2A current and 318V voltage robust enough for many electronic systems. Liquid crystal polymer housing provides mechanical strength and insulation.
Surface mount with straight orientation simplifies PCB assembly.
This Samtec ERM8 series PCB header is ideal for industrial electronics manufacturing, telecommunications, computer hardware, and other applications demanding durable and precise electrical connectors. Browse the Electronics Components category on EnvMart for related PCB connector products and accessories.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum voltage of 318V, making it suitable for various electronic applications.
It is rated for a continuous current of 2.2A, which supports its use in rugged industrial environments.
The contacts are made of phosphor bronze with gold plating, while the housing is constructed from liquid crystal polymer, providing excellent conductivity and insulation.
This PCB header operates reliably across a temperature range from -55°C to 125°C, suitable for various industrial applications.
This model features 80 male contacts arranged in two rows, designed for compact integration on printed circuit boards.
The contact pitch for this PCB header is 0.8 mm, allowing for dense connection layouts.
It uses solder termination, which is standard for securing connections on printed circuit boards.
The stack height for this PCB header ranges from 7.00 mm to 16.00 mm, accommodating various design requirements.
This model supports surface mounting, providing ease of installation on PCBs.
This header features a shrouded design, which enhances protection and connection reliability.
It is ideal for industrial electronics manufacturing, telecommunications, computer hardware, and other applications requiring durable electrical connectors.
The country of origin for this model is the United States, ensuring compliance with local manufacturing standards.
