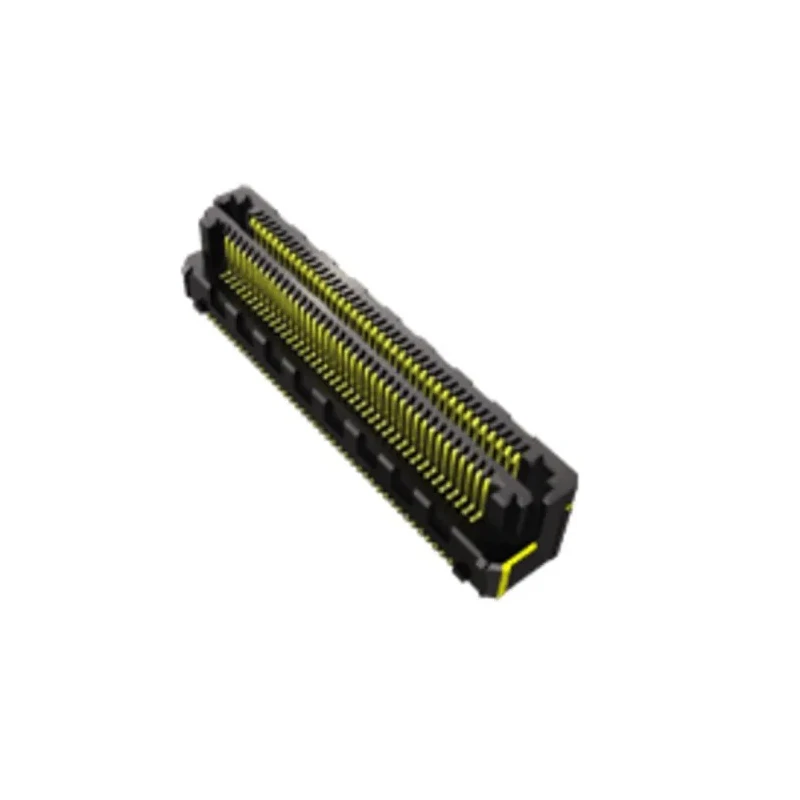

Samtec LSHM Series Straight Surface PCB Header 40 Contact 0.5 mm Pitch 2 Row Shrouded LSHM-120-02.5-F-DV-A-N-K-TR

Samtec LSHM-120-02.5-F-DV-A-N-K-TR is a precision-engineered PCB header from the LSHM series designed for surface mounting applications requiring compact and reliable board-to-board connections. Featuring 40 gold-plated phosphor bronze contacts arranged in 2 rows with a 0.5 mm pitch, it ensures high-speed signal transmission suitable for industrial and electronic device manufacturing.

The housing is constructed from liquid crystal polymer materials that offer excellent thermal stability and durability, allowing operation in temperature ranges from -55°C to 125°C, making it ideal for harsh industrial and laboratory environments.

The straight orientation coupled with solder termination guarantees ease of PCB assembly while the shrouded design protects the contacts and improves mating reliability. This connector supports currents up to 2A and voltages up to 160V, meeting the needs of mid-power electronic systems.

Featuring the patented Razor Beam™ high-speed hermaphroditic terminal/socket strip technology, this product provides secure audible confirmation during mating and reduces inventory needs through self-mating design. Additionally, it can be employed in parallel, perpendicular, and co-planar systems, broadening the scope of application usage.

Its reliable contact system, with mating and unmating forces significantly greater than typical micro-pitch connectors, enhances connection stability in commercial, industrial, and high-performance electronic manufacturing sectors.

The surface mount header features a 2-row, shrouded design for reliable signal integrity. Constructed using phosphor bronze contacts plated with gold for excellent conductivity. The housing is made from liquid crystal polymer, providing high temperature resistance up to 125°C.

Designed for currents up to 2A at voltages up to 160V for robust electronic applications. Its straight orientation and solder termination ensure ease of assembly on PCB layouts. Operates reliably in temperatures ranging from -55°C to 125°C, suitable for demanding environments.

The connector uses a hermaphroditic Razor Beam™ contact system ensuring secure mating with audible click feedback. Provides parallel, perpendicular, and co-planar system compatibility with optional shielding. Manufactured in the United States adhering to high-quality standards.

This Samtec PCB header series is highly recommended for industrial, electronic component manufacturing, telecommunications, computing, and laboratory applications requiring durable and high-performance connections.
