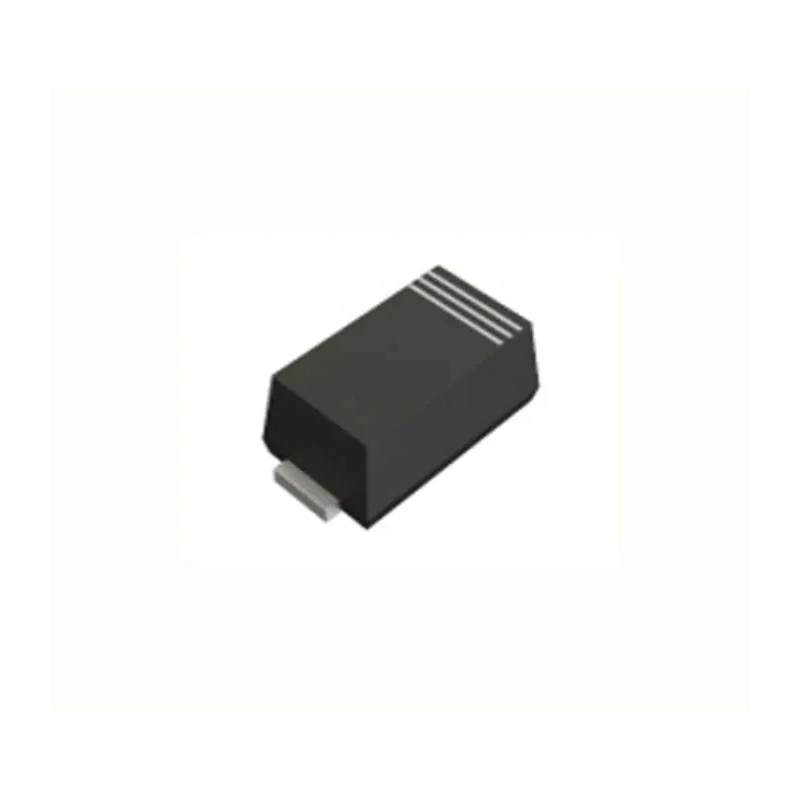

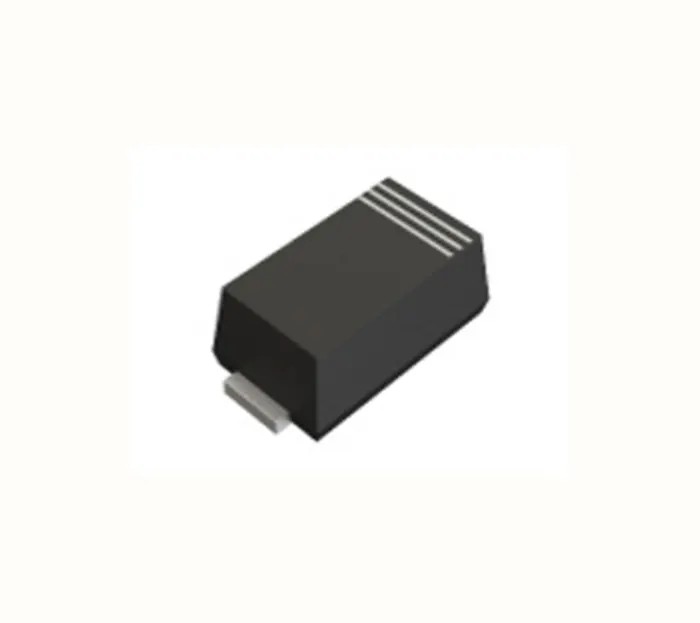

ROHM 600 V 1 A General Purpose 2-Pin Surface Mount Diode PMDE RR1VWM6STR

Free Delivery in India | Lowest Global Shipping Charges

ROHM 600 V 1 A General Purpose 2-Pin Surface Mount Diode PMDE RR1VWM6STR

Name: ROHM 600 V 1 A General Purpose 2-Pin Surface Mount Diode PMDE RR1VWM6STR
Brand: ROHM
SKU: 147581
Price: 0.14 USD
Availability: InStock



Category Diode Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.95mm
Length	2.2mm
Model	RR1VWM6STR
Width	1.3mm
Mount Type	Surface
Series	RR1VWM6S
Maximum Operating Temperature	175°C
Package Type	PMDE
Minimum Operating Temperature	55°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	600V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	10A
Peak Non-Repetitive Forward Surge Current Ifsm	15A
Maximum Forward Voltage Vf	1.2V

Key Features

This diode features a 2-pin PMDE package suitable for surface mount applications.
It supports a maximum continuous forward current of 1 Ampere.
The peak reverse repetitive voltage is rated at 600 Volts, ensuring robustness in various power conditions.
The device has a low maximum forward voltage of 1.2 V for efficient conduction.
Operating temperature ranges from -55°C minimum to 175°C maximum for diverse environment tolerance.
It offers a peak non-repetitive forward surge current capability of 15 Amperes to manage transient loads.
The compact diode measures 2.2 mm in length, 1.3 mm in width, and 0.95 mm in height, allowing for space-saving PCB layouts.
Manufactured to RoHS standards, it assures environmental compliance and quality.

Product Description

The ROHM RR1VWM6STR is a general purpose Schottky diode designed for surface mount applications with a PMDE package type.

This diode supports a maximum continuous forward current of 1 Ampere and a peak reverse repetitive voltage of 600 Volts, making it suitable for a wide range of electronic applications including power supplies, switching regulators, and general rectification tasks.

Its low maximum forward voltage drop of 1.2 V helps improve circuit efficiency by reducing conduction losses. It operates reliably over a broad temperature range from -55°C to 175°C, which makes it adaptable for demanding industrial and commercial electronics environments.

The diode's peak non-repetitive forward surge current rating of 15 A enables it to withstand transient surges without damage. Compact dimensions (2.2 mm length, 1.3 mm width, and 0.95 mm height) allow efficient use of PCB space in high-density assemblies.

This device meets RoHS standards, ensuring compliance with environmental directives related to hazardous substances. This diode features a 2-pin PMDE package suitable for surface mounting. Maximum continuous forward current of 1 Ampere.

Peak reverse repetitive voltage rated at 600 Volts. Maximum forward voltage of 1.2 Volts. Operating temperature from -55°C to 175°C. Peak non-repetitive forward surge current of 15 Amperes. Compact dimensions support high-density PCB design.

Compliant with RoHS standards. This diode is ideal for use in industrial, power, and consumer electronics where efficient rectification and reliability are required. Explore more semiconductor and Diode components in the Electronics category on EnvMart.
