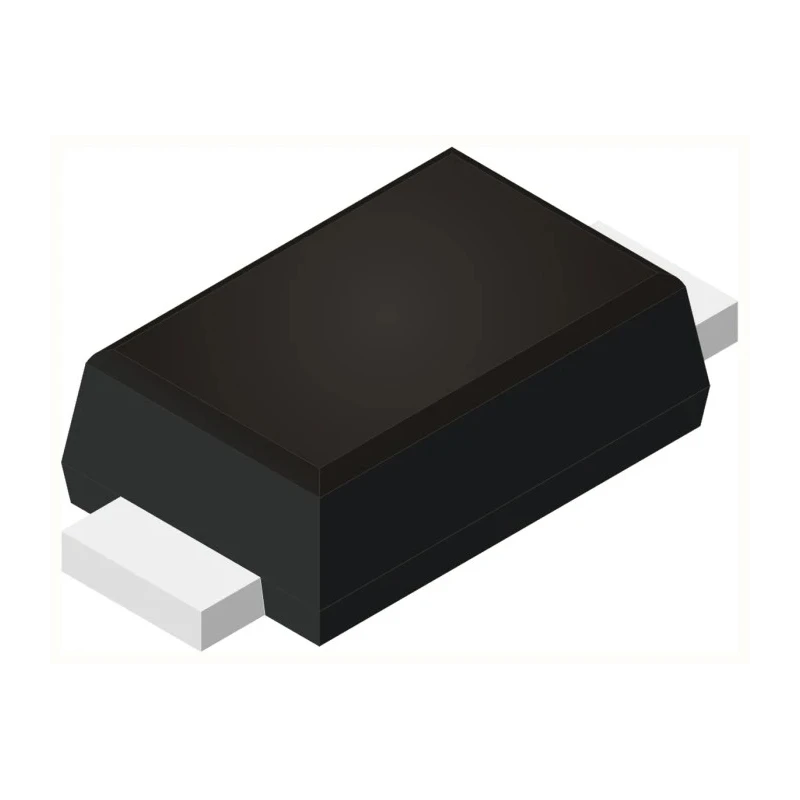

ROHM 8.4 V Zener Diode, Single 1 W Surface Mount 2-Pin SOD-123FL KDZVTR7.5B
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.9mm |
| Length | 3.62mm |
| Model | KDZVTR7.5B |
| Mount Type | Surface |
| Series | KDZV |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123FL |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 40mA |
| Maximum Reverse Leakage Current | 20μA |
| Nominal Zener Voltage Vz | 8.4V |
| Zener Type | Voltage Regulator |
Key Features
- Features surface mount package type SOD-123FL for compact PCB design.
- Supports 2-pin configuration ensuring easy integration in circuits.
- Rated for high ESD resistance providing robust protection.
- Operating temperature range from -55°C to 150°C for versatile applications.
- Maximum reverse leakage current is 20μA ensuring low power loss.
- Test current of 40mA confirms stable voltage regulation performance.
- Complies with RoHS standards assuring environmental safety.
Product Description
ROHM KDZVTR7.5B is a high-quality single Zener diode engineered for voltage regulation in electronic circuits. It features a nominal Zener voltage of 8.4 volts and is capable of dissipating up to 1 watt of power, making it suitable for precise voltage regulation tasks.
This diode comes in a surface mount SOD-123FL package with a 2-pin configuration, supporting compact and efficient PCB layouts. It is designed to withstand harsh conditions with an operating temperature range from -55°C to 150°C, thus appropriate for industrial, automotive, communication, and electronic applications.
The device also provides high electrostatic discharge (ESD) resistance, enhancing circuit protection reliability. Its maximum reverse leakage current is minimal at 20 microamps, which reduces power loss and improves efficiency. The test current stands at 40 milliamps, guaranteeing stable voltage regulation at specified parameters.
With dimensions of 3.62 mm length and 0.9 mm height, it is suitable for designs where space saving is critical. The KDZVTR7.5B complies with RoHS directives, confirming its environmental compliance and suitability for green manufacturing.
Surface mount SOD-123FL package enables compact circuit assembly. Voltage regulator type offers stable voltage control in circuits. Wide operating temperature range extends application versatility. Low reverse leakage current conserves energy.
High ESD resistance ensures circuit protection. Compliant with RoHS for environmental safety.
This Zener diode is ideal for use in industrial, electronic manufacturing, HVAC control systems, and other applications requiring precise voltage regulation and compact packaging. Explore EnvMart’s extensive semiconductor and electronic component categories for more advanced solutions and compatible parts.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 8.4 volts, which is suitable for voltage regulation tasks in electronic circuits.
This model can dissipate up to 1 watt of power, making it effective for precise voltage regulation.
The operating temperature range is from -55°C to 150°C, allowing for versatile applications in various environments.
The maximum reverse leakage current is 20 microamps, which helps reduce power loss in circuits.
It uses a surface mount SOD-123FL package, which supports compact PCB designs.
The test current for this diode is 40 milliamps, ensuring stable voltage regulation performance.
This model features a 2-pin configuration, facilitating easy integration into circuits.
It complies with RoHS standards, assuring its environmental safety and suitability for green manufacturing.
The dimensions are 3.62 mm in length and 0.9 mm in height, making it suitable for space-constrained designs.
It is ideal for use in industrial, electronic manufacturing, HVAC control systems, and other applications requiring precise voltage regulation.
The KDZVTR7.5B has a single diode configuration, designed for voltage regulation.
This Zener diode is manufactured in India, contributing to its availability in various markets.
