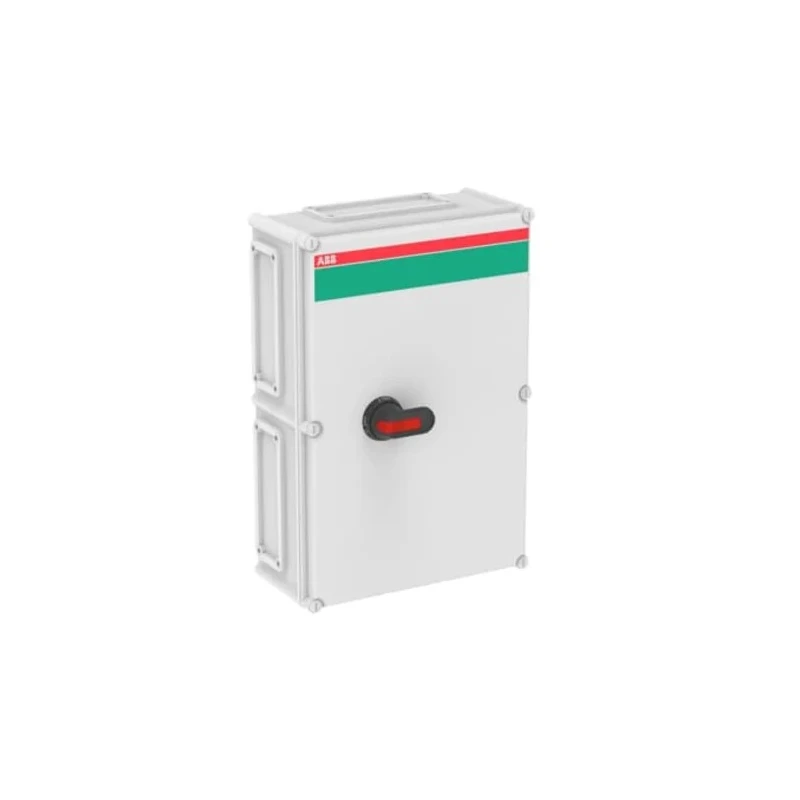

ABB 4-Pole Screw Mount Switch Disconnector OT Series, IP65, 200A, Rated Operational Voltage 1000V, Model

Free Delivery in India | Lowest Global Shipping Charges

ABB 4-Pole Screw Mount Switch Disconnector OT Series, IP65, 200A, Rated Operational Voltage 1000V, Model



Category Switch Disconnectors Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Length	560mm
Model	IP65
Depth	180mm
IP Rating	IP65
Width	380mm
Mount Type	Screw, Screw
Series	OT
Minimum Operating Temperature	0°C
Switching Current	200A
Terminal type	Screw Clamp
Handle Colour	Black
Number of Poles	4
Standards/Approvals	IEC 60947-1
Switching AC Voltage	380, 415V ac

Key Features

Features a rigid glass reinforced polycarbonate enclosure for durability.
IP65 rating provides protection against low-pressure water jets and dust ingress.
Padlockable black handle supports up to three padlocks for enhanced safety.
Includes screw clamp terminals and accepts N and PE terminals.
Suitable for switching AC voltages of 380 and 415 V with a switching current of 200 A.
Complies with IEC 60947-1 standards for switch disconnectors.
Includes maximum of 2NO and 2NC auxiliary contacts for control applications.
Designed for mounting using screw method on II-flanges with knock-out cable entries.

Product Description

ABB 1SCA022530R4450 OT200KFCC4B is a 4-pole switch disconnector from the OT series, designed with a screw mount type and screw clamp terminals. It features a black padlock-compatible handle and an IP65 rated enclosure constructed from UV-protected, rigid glass reinforced polycarbonate, ensuring robust performance against environmental factors.

This switch disconnector supports a rated operational voltage of 1000V and a switching current of 200A, suitable for industrial and commercial electrical installations. It accepts switching AC voltages of 380V and 415V, making it versatile for various power distribution systems.

The enclosure is designed for both indoor and outdoor use with cable entries via knock-out types compatible for II-flanges, allowing cable insertion from top and bottom. The handle is padlockable with provision for three padlocks to enhance safety in lockout/tagout procedures.

It complies with IEC 60947-1 standards, ensuring reliable electrical isolation and switching performance. The product supports up to 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, facilitating enhanced control and signaling functionalities.

Dimensions are 560mm length, 380mm width, and 180mm depth, making it suitable for panel installation without excessive space requirements. The minimum operating temperature is 0°C, and the product does not have hazardous area certification.

Rigid glass reinforced polycarbonate enclosure for durability. IP65 rating for dust and water protection. Padlock-compatible handle with support for three padlocks. Screw clamp terminal type with N and PE terminals included.

Suitable for switching currents of 200A with 380-415V AC operation. Compliance with IEC 60947-1 ensuring quality and safety. Includes auxiliary contacts for control applications. Compact form factor for various installation environments.

This ABB OT series switch disconnector is ideal for electrical isolation in industrial, manufacturing, commercial, and utility sector applications, offering dependable operational safety and convenience. Explore more Switch Disconnectors at EnvMart for comprehensive electrical solutions tailored to your project needs.
