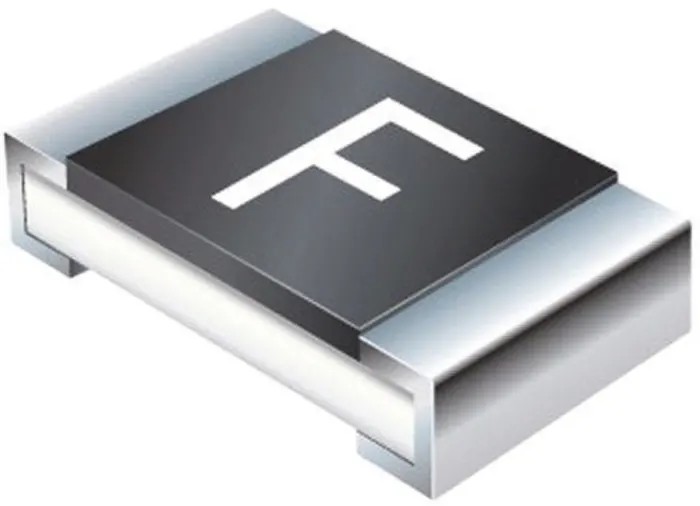

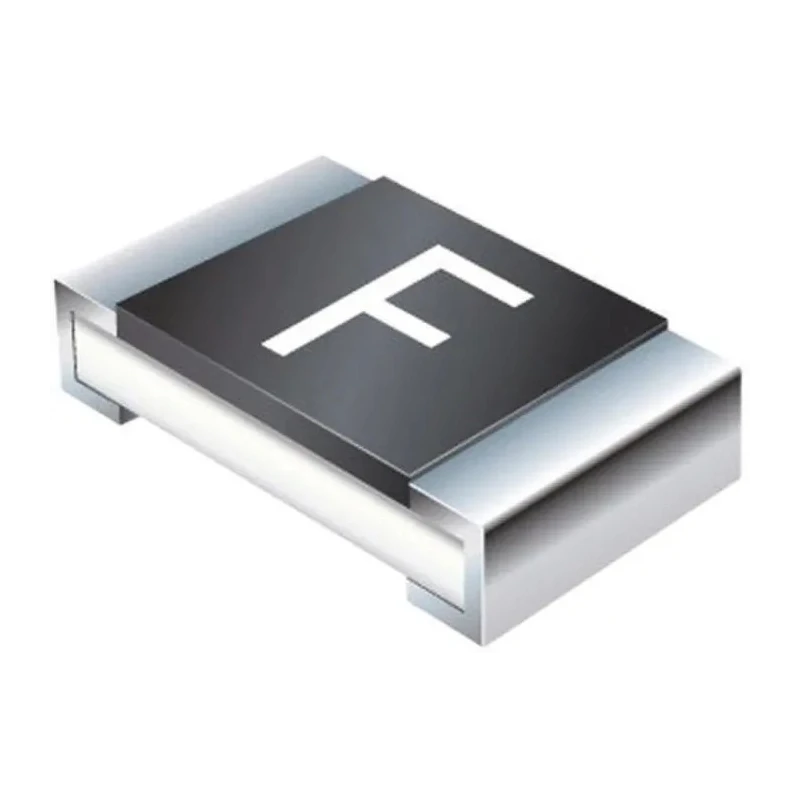

Bourns Fast Acting Ceramic Non-Resettable Fuse 3.15A 24V DC Surface Mount SF-0603F315-2
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Bourns |
| Body Material | Ceramic |
| Height | 0.45mm |
| Model | SF-0603F315-2 |
| Depth | 1.6mm |
| Series | SF-0603F |
| Maximum Operating Temperature | 105°C |
| Resistance | 0.02Ω |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 0603 |
| Breaking Capacity | 50A |
| Terminal Material | Tin Plated Nickel Copper |
| Standards/Approvals | UL 248-14, RoHS |
| Fuse Characteristics | Fast Acting |
Key Features
- This fuse features a compact 0603 (1608 EIA) miniature footprint for space-saving applications.
- The ceramic body material ensures high durability and heat resistance.
- Fast acting fuse characteristic provides rapid response to overcurrent conditions.
- The fuse has a breaking capacity of 50A and operates up to 105°C maximum temperature.
- Surface mount design supports efficient automated PCB assembly and improved production efficiency.
- Ideal for protecting sensitive silicon ICs in alarm systems, audio/visual equipment, computer boards, and medical apparatus.
- Terminal material consists of tin plated nickel copper for reliable conductivity and solderability.
- Approved to UL 248-14 standards and RoHS compliant for environmental safety.
Product Description
Bourns SF-0603F315-2 is a fast acting ceramic surface mount non-resettable fuse rated at 3.15A and 24V DC, designed to provide reliable overcurrent protection in compact electronic applications.
Featuring a 0603 (1608 EIA) miniature footprint, this fuse occupies minimal PCB space while delivering robust protection for sensitive components such as silicon ICs in devices including alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, and medical apparatus.
The fuse's ceramic body and thin film chip construction enable high durability and thermal tolerance, supporting operation between -40°C and up to 105°C maximum temperature. Its fast acting fuse characteristic ensures a prompt interruption under fault current conditions, protecting circuits from damage.
With a breaking capacity of 50A, the device is capable of safely interrupting higher short-circuit currents, ensuring circuit integrity. The tin plated nickel copper terminals provide excellent solderability and electrical connectivity.
This product is packaged on reels for compatibility with automated surface mount technology (SMT) assembly processes, improving production efficiency and inventory handling. This fuse offers fast, reliable surface mount protection for low voltage electronic circuits.
Ceramic body material protects against mechanical and thermal stresses. Fast acting fuse speed ideal for safeguarding sensitive electronic components. Compact 0603 size enables dense PCB layouts and miniaturized designs.
High breaking capacity provides robust short-circuit protection. Lead-free tin plated nickel copper terminals ensure reliable connections. Industry approved UL 248-14 and RoHS certificate ensure quality and compliance. Commonly used across industrial, automotive, telecommunications, medical, and consumer electronics sectors, this fuse offers essential safety and circuit protection.
Explore more circuit protection solutions in the Non-Resettable Fuse category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this fuse is 105°C.
This model has a breaking capacity of 50A, allowing it to safely interrupt higher short-circuit currents.
The fuse features a compact 0603 (1608 EIA) miniature footprint, making it suitable for space-saving applications.
The body material is ceramic, and the terminals are made of tin plated nickel copper, ensuring reliable conductivity and solderability.
This fuse operates within a temperature range of -40°C to 105°C.
It is approved to UL 248-14 standards and is RoHS compliant for environmental safety.
The resistance value of this fuse is 0.02Ω.
This fuse is packaged on reels, which supports efficient automated surface mount technology (SMT) assembly processes.
It has a fast acting fuse characteristic, providing rapid response to overcurrent conditions.
This fuse is commonly used in alarm systems, audio/visual equipment, computer boards, and medical apparatus.
The height of the fuse is 0.45mm, and its depth is 1.6mm.
This model belongs to the SF-0603F series.
