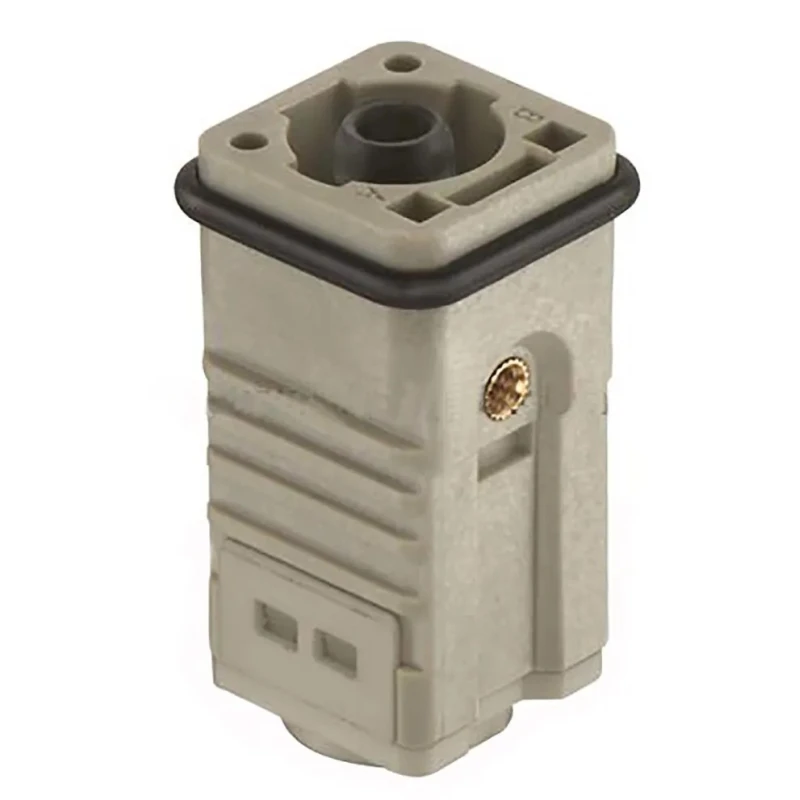

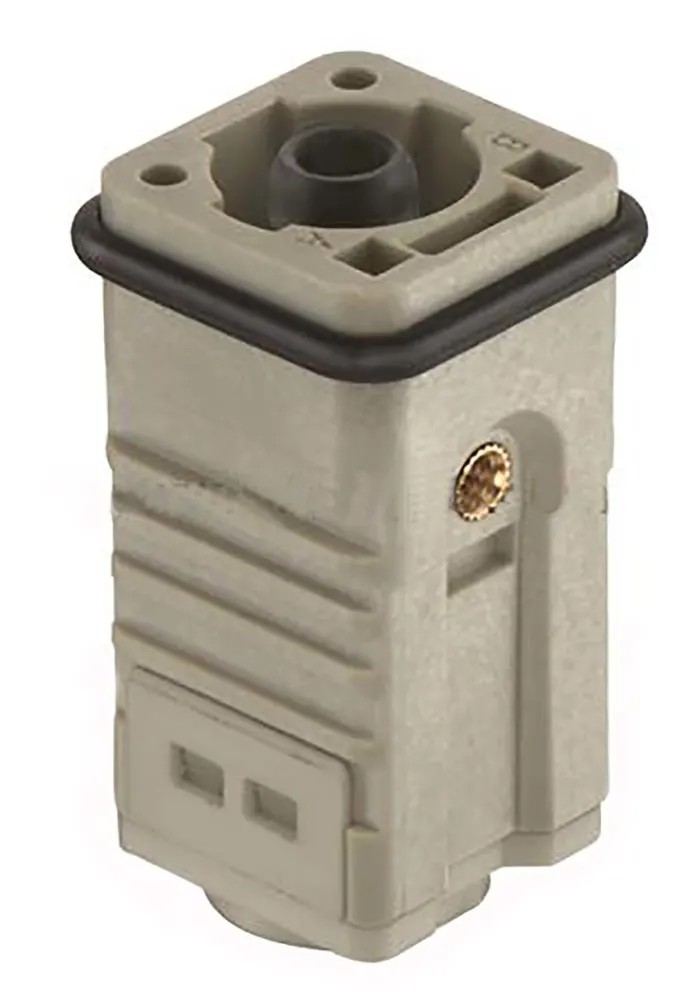

HARTING Heavy Duty Power Connector Insert 100A HAN Series Male Screw Mount 400V 1 Contact 09120012651
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 400V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Screw |
| Contact Material | Copper Alloy |
| Current Rating | 100A |
| Series | HAN |
| Thread Size | M3 x 6 |
| Sub Type | Axial Screw |
| Number of Rows | 1 |
| For Use With | Heavy Duty Power Connectors |
| Pole Format | 1 |
| Contact Plating | Silver |
| Number of Contacts | 1 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 16mm² |
| Maximum Wire Size mm² | 25mm² |
Key Features
- This insert supports a single contact with a straight orientation for easy wiring.
- It accommodates wire sizes ranging from 16mm² to 25mm².
- The connector features silver-plated copper alloy contacts ensuring reliable conductivity.
- Mounting is done with a screw type mechanism using M3 x 6 thread size for secure attachment.
- Its compact size 3 A design allows space-saving installations with 16 coding options for versatile applications.
- The product conforms to IP20 protection rating according to IEC 60529 standards.
- Field wiring is facilitated without special tools due to axial screw termination technology.
- Suitable for industrial electronic applications requiring rugged and reliable power connectors.
Product Description
HARTING 09120012651 Heavy Duty Power Connector Insert is a precision-engineered axial screw type male connector designed for use with heavy duty power connectors in industrial electronics and power distribution systems. This insert supports a high current rating of 100A at 400V, making it suitable for demanding electrical environments.
The product features a single contact point with straight orientation, suitable for wire sizes between 16mm² and 25mm². The contact material consists of copper alloy with silver plating, enhancing electrical performance and corrosion resistance. The connector uses a screw mount type with M3 x 6 thread size for secure and stable assembly in connector housings.
Its compact size 3 A construction allows for space-saving configurations and includes 16 coding options with separate coding pins to prevent mismating. The design complies with IEC 60529, providing IP20 protection level for the contacts.
Field wiring is simplified by the axial screw termination technology, enabling reliable and tool-free field connections. This insert is ideal for use in industrial machinery, automation equipment, power supplies, and heavy duty electronic installations requiring robust and efficient power connection solutions.
This insert supports a single male contact with axial screw termination. The current rating of 100A ensures high capacity power transmission. Operating voltage rating is 400V suitable for various industrial power applications.
Contact plating with silver enhances conductivity and durability. Compatible with HAN series heavy duty power connectors for seamless integration. Provides IP20 protection level, conforming to IEC 60529 standards. The screw mount with M3 x 6 threads offers solid mechanical fixation.
Field wiring does not require specialized tools due to termination technology.
This HARTING connector insert is an excellent choice for those seeking high-performance power connection components within industrial and electronic component sectors. Browse the heavy duty power connectors category at EnvMart for complementary products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this insert is 100A, making it suitable for high capacity power transmission in industrial applications.
This connector insert operates at a voltage of 400V, suitable for various industrial power applications.
It accommodates wire sizes ranging from 16mm² to 25mm², allowing for flexibility in wiring configurations.
This model features a screw mount type with an M3 x 6 thread size for secure attachment in connector housings.
The contact material consists of a copper alloy with silver plating, enhancing electrical performance and corrosion resistance.
This insert supports a single contact point, designed for efficient power transmission.
The contact orientation is straight, which facilitates easy wiring.
It conforms to an IP20 protection rating according to IEC 60529 standards, providing basic protection against solid objects.
Field wiring is facilitated without special tools due to the axial screw termination technology, enabling reliable connections.
This insert is part of the HARTING HAN series, designed for heavy duty power connectors.
It is ideal for use in industrial machinery, automation equipment, power supplies, and heavy duty electronic installations.
The country of origin for this connector insert is India.
