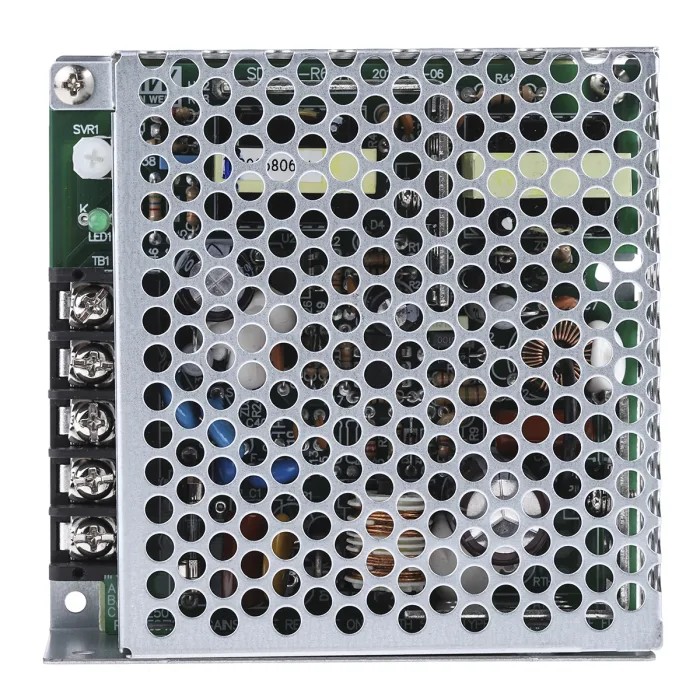

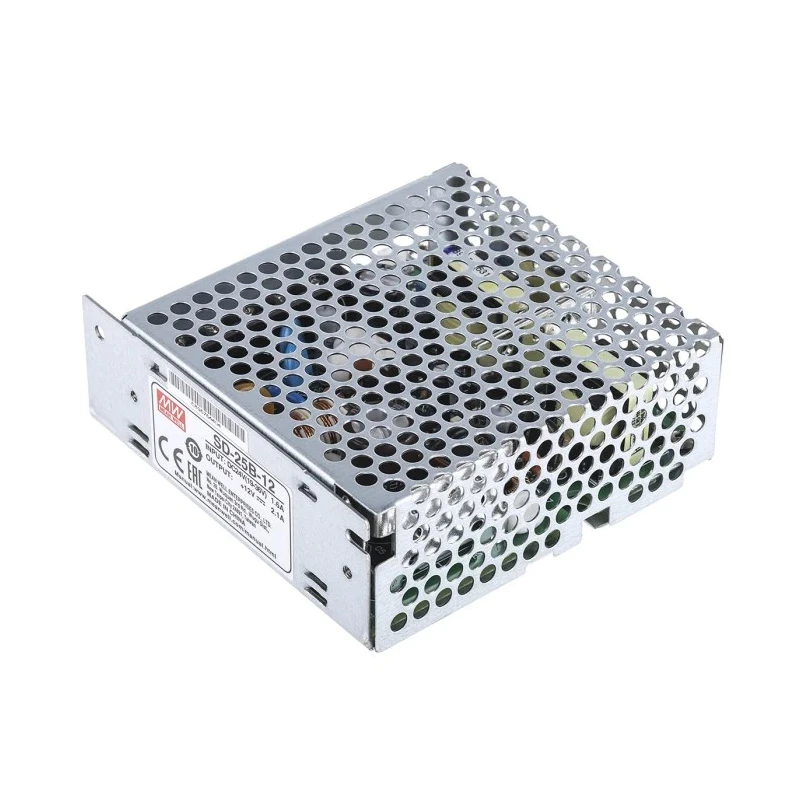

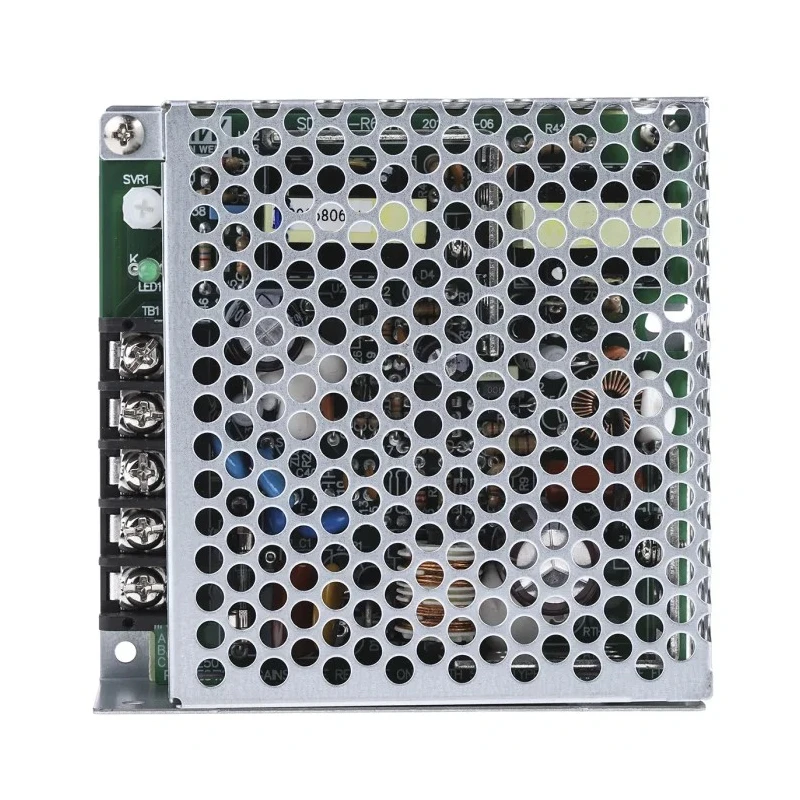

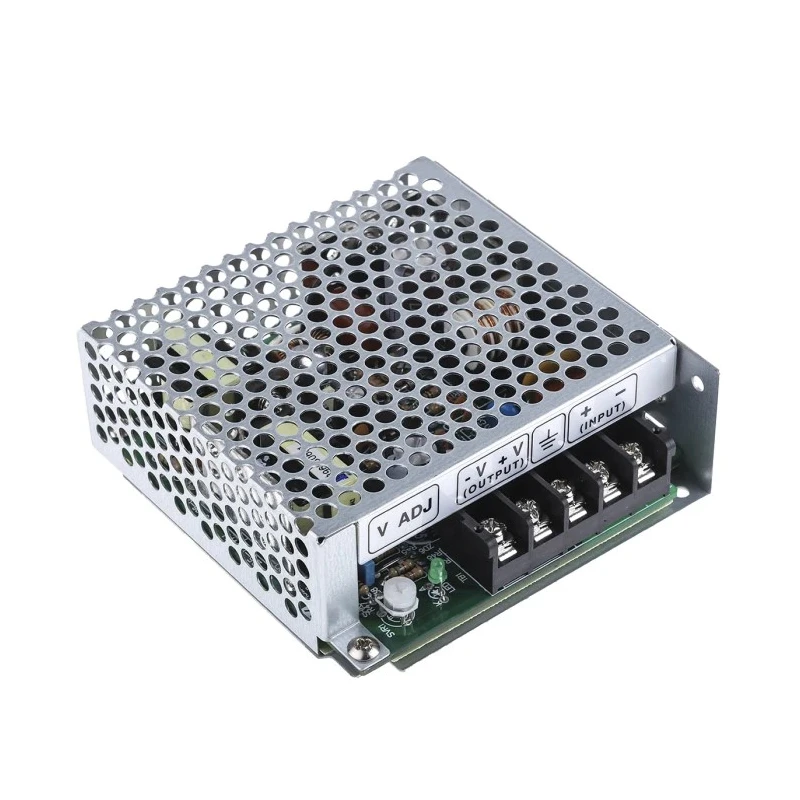

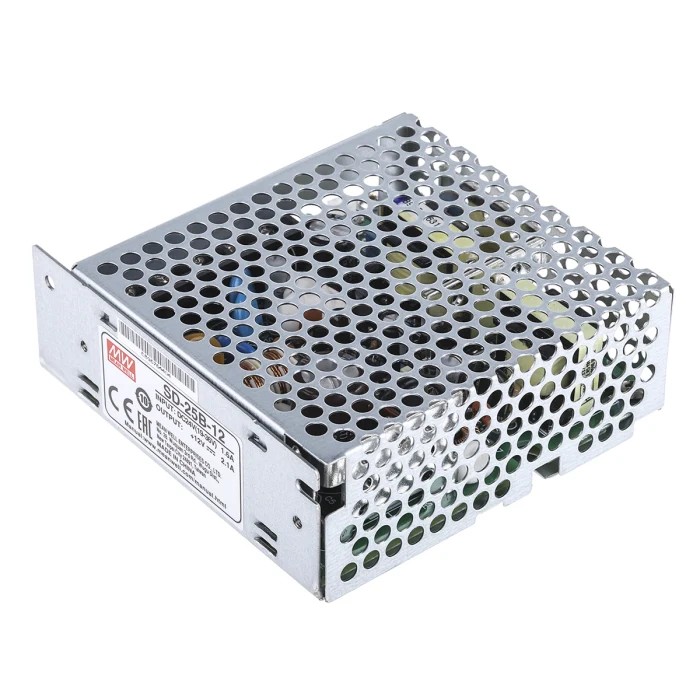

MEAN WELL SD-25B-12 Chassis Mount DC/DC Converter 12V DC Output, 19-36V DC Input, 25.2W Power SD-25B-12
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL SD-200 DC/DC Converter, 12V dc/, 36V dc |
| Brand | MEAN WELL |
| Efficiency | 75% |
| Length | 99mm |
| Model | SD-25B-12 |
| Depth | 36mm |
| Gross Weight | 380g |
| Width | 97mm |
| Mount Type | Chassis Mount |
| Series | SD-200 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| MTBF | 365900h |
| Number of outputs | 1 |
| Ripple and Noise | 120mV Pk-Pk |
| Maximum Output Power | 25.2W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | EN |
| Minimum Input Voltage | 19V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 0A |
| Output Voltage Adjustment Range | 16 V |
| Isolation Voltage | 1.5kV ac |
| Output Current 2 | 2.1A |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 2 | 1 input voltage range |
Key Features
- Single output delivering regulated 12V DC with a maximum power of 25.2W.
- Chassis mount design suitable for secure installation in electronic equipment.
- Operating temperature range from -10°C to 60°C ensuring reliable operation.
- High isolation voltage of 1.5kV AC for input/output safety.
- Built-in short circuit, overload, and overvoltage protections for enhanced durability.
- 75% efficiency typical to reduce power loss and heat generation.
- Compliance with EN standards and equipped with LED power-on indicator.
Product Description
MEAN WELL SD-25B-12 is a robust and reliable chassis mount DC/DC Converter offering a single regulated output of 12V DC. It accepts a wide input voltage range from 19V to 36V DC, making it suitable for diverse industrial electronics applications, power supplies, and embedded systems. With a maximum output power of 25.2W and an efficiency of 75%, this converter ensures effective power conversion and thermal management.
The SD-25B-12 features protections against short circuits, overloads, and overvoltage, enhancing system safety and longevity. Its 1.5kV AC isolation voltage between input and output further secures sensitive components from electrical disturbances. The device operates stably within a temperature range of -10°C to 60°C, suitable for demanding environments. Compact and lightweight at 380g, the converter is easy to mount on chassis with screw terminals, facilitating installation and maintenance.
This series complies with EN standards and includes an LED indicator for power status, contributing to ease of monitoring. It is ideal for industrial automation, laboratory instrumentation, communication equipment, and other controlled power environments.
Wide 2:1 input voltage range from 19V to 36V DC. Single 12V DC regulated output at up to 2.1A current. Efficient power conversion with 75% typical efficiency. Comprehensive safety features including short circuit, overload, and overvoltage protection.
Robust input/output isolation voltage of 1.5kV AC. Compact chassis mount package with screw terminals for secure installation. Wide operating temperature range from -10°C to +60°C. LED power-on indicator for operational status monitoring.
MEAN WELL, renowned for quality power supply solutions, delivers the SD-25B-12 to support various industrial and electronic applications with reliable and precise DC voltage conversion. Browse the Electronics & Electricals category at EnvMart for additional power converters and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accepts a wide input voltage range from 19V to 36V DC.
The maximum output power is 25.2W, with a regulated output of 12V DC.
It has a typical efficiency of 75%, which helps to reduce power loss and heat generation.
The converter includes built-in protections against short circuits, overloads, and overvoltage, enhancing system safety.
It features a robust isolation voltage of 1.5kV AC between input and output for safety against electrical disturbances.
The dimensions are 99mm in length, 97mm in width, and 36mm in depth.
The operating temperature range is from -10°C to 60°C, making it suitable for various environments.
This unit has a gross weight of 380g, making it compact and lightweight for installation.
It features a chassis mount design, allowing for secure installation in electronic equipment.
The SD-25B-12 can deliver a maximum output current of 2.1A at 12V DC.
This converter complies with EN standards, ensuring it meets specific safety and performance criteria.
Yes, it is equipped with an LED power-on indicator for monitoring operational status.
