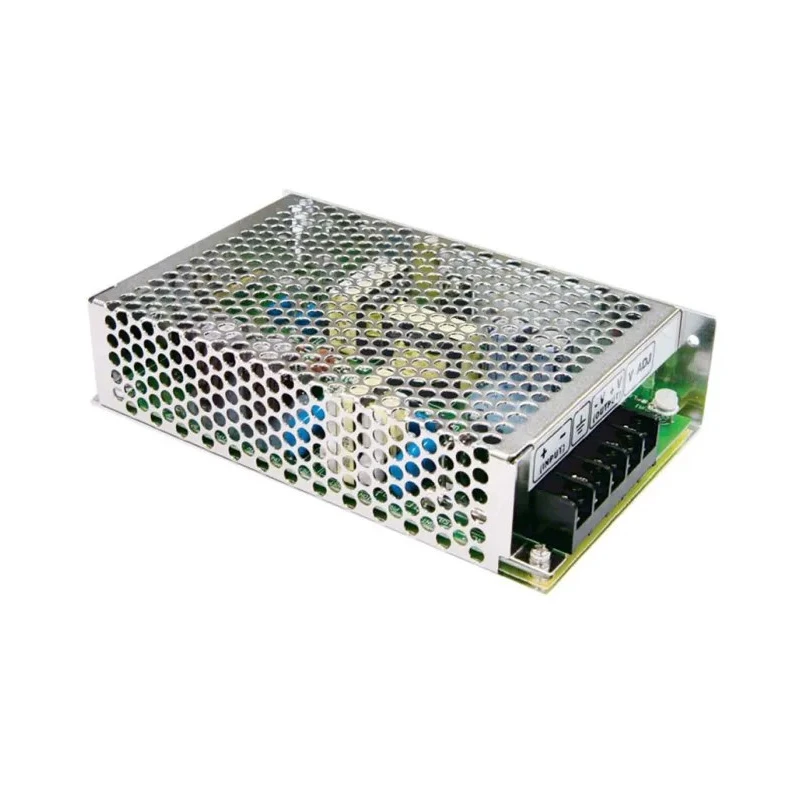

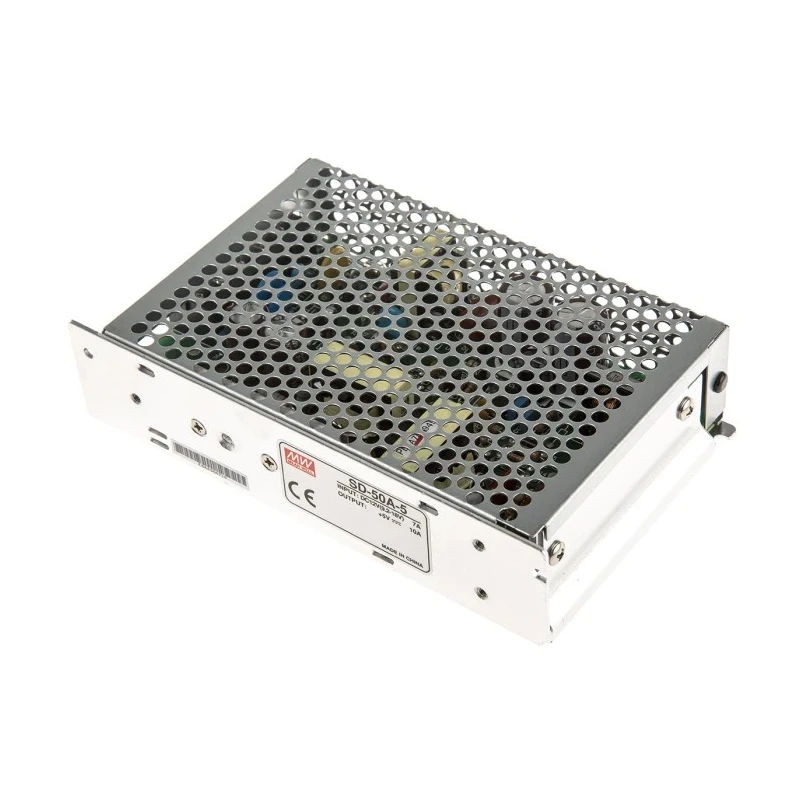

MEAN WELL Enclosed Regulated Isolated DC/DC Converter 5V Output, 18V dc Input, 10 A, 50W, Chassis Mount SD-50A-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL SD-50 DC/DC Converter, 5V dc/, 18V dc In |
| Brand | MEAN WELL |
| Efficiency | 70% |
| Length | 159mm |
| Model | SD-50A-5 |
| Depth | 38mm |
| Gross Weight | 430g |
| Width | 97mm |
| Mount Type | Chassis Mount |
| Series | SD-50 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| MTBF | 3293100h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 50W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | EAC, EN |
| Minimum Input Voltage | 9.2V |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 10A |
| Output Voltage Adjustment Range | 5.5 V |
| Isolation Voltage | 1.5kV ac |
| Input Ratio | 2:1 |
| Wide 2 | 1 input voltage range |
Key Features
- Equipped with chassis mount type for easy installation and secure fixing.
- High efficiency performance rated at 70% to optimize energy use.
- Integrated short circuit, overload and overvoltage protection ensures device safety.
- Compact dimensions with length 159mm, width 97mm, and depth 38mm suit various electrical assemblies.
- Operating temperature range from -10°C to 60°C allows use in demanding industrial environments.
- Provides 1.5kV ac input/output isolation for enhanced electrical safety.
- Includes LED power-on indicator for operational status monitoring.
Product Description
MEAN WELL SD-50A-5 DC/DC Converter delivers a regulated isolated output of 5V dc with a maximum output current of 10A and power capacity of 50W. It supports an input voltage range from 9.2V to 18V dc, making it suitable for applications requiring stable voltage conversion within this range.
This chassis mount converter maintains high reliability with an MTBF of 3,293,100 hours per MIL-HDBK-217F standards. The converter features extensive protections against short circuit, overload, and overvoltage, ensuring durability in industrial, laboratory, and power supply designs.
The device complies with EAC and EN standards and meets EMC requirements per EN 55022 Class B. Its compact size with 159mm length, 97mm width, and 38mm depth supports integration into power electronics, industrial control, and automation systems.
The operating temperature range from -10°C to 60°C favors industrial and HVAC environments with fluctuating ambient temperatures. The isolation voltage of 1.5kV ac enhances user and equipment safety by preventing electrical faults from propagating.
MEAN WELL's SD-50 Series stands out for its adjustable output voltage (5.5 V adjustment range) and wide 2:1 input voltage ratio. The inclusion of LED power indicators aids in quick fault detection and operational checks during maintenance and installation.
Commonly used in power supplies, embedded systems, control cabinets, manufacturing equipment, and instrumentation, this DC/DC converter facilitates stable power supply where voltage regulation and insulation are critical.
Wide 2:1 input voltage range enhances versatility for various DC supply levels. Short circuit, overload, and overvoltage protection ensure device longevity. Chassis mount design allows easy mechanical mounting and heat dissipation.
High isolation voltage provides safety and noise suppression. LED indicator assists with visual operational status and troubleshooting. Explore more MEAN WELL DC/DC Converters and power supply solutions in the Electronics & Electricals category at EnvMart for your industrial and commercial power requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 50W.
It supports an input voltage range from 9.2V to 18V dc.
The output voltage of this unit is 5V dc.
The maximum output current for the SD-50A-5 is 10A.
The dimensions of this model are 159mm in length, 97mm in width, and 38mm in depth.
This converter has an efficiency rating of 70%.
It uses a chassis mount type for easy installation and secure fixing.
The operating temperature range is from -10°C to 60°C.
It includes short circuit, overload, and overvoltage protection to ensure device safety.
The isolation voltage is 1.5kV ac, enhancing electrical safety.
This model complies with EAC and EN standards and meets EMC requirements per EN 55022 Class B.
The output voltage can be adjusted within a range of 5.5 V.
