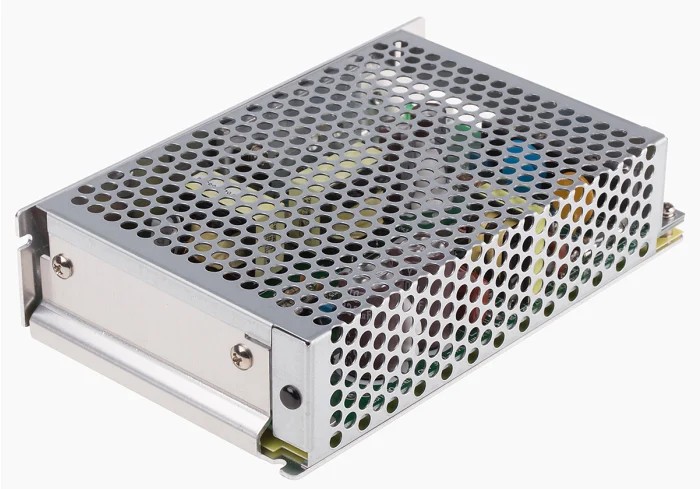

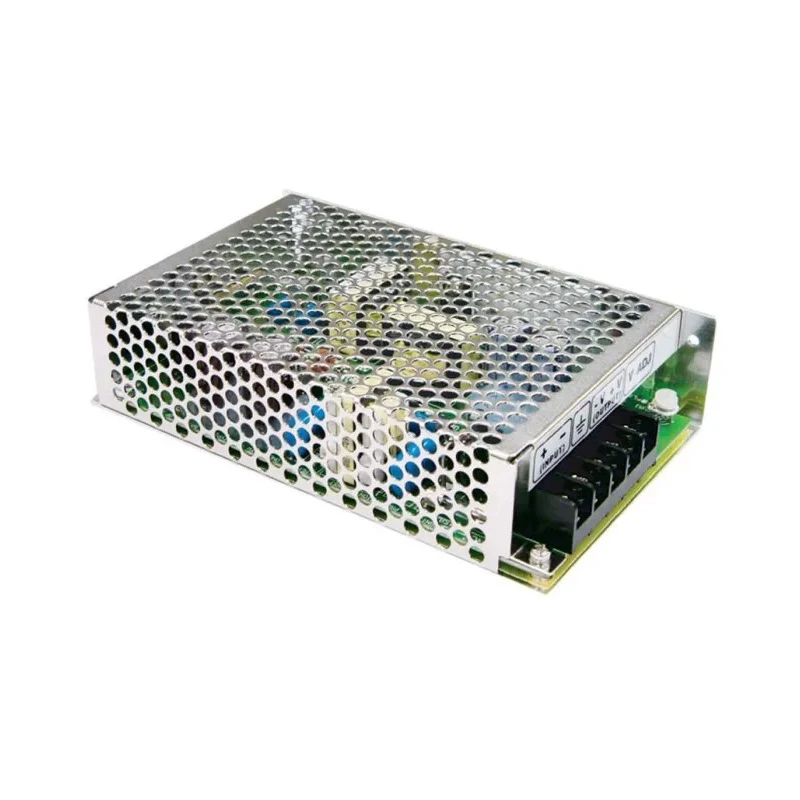

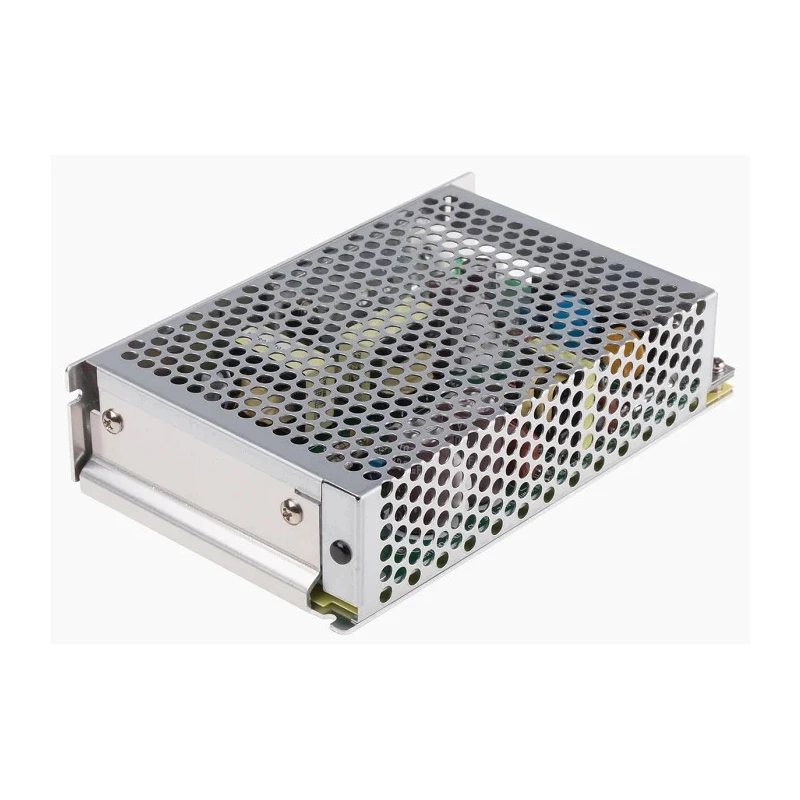

MEAN WELL SD-50 DC/DC Converter 24V DC Output 18V DC Input 2.1A Chassis Mount SD-50A-24

MEAN WELL SD-50A-24 is a highly reliable DC/DC Converter designed for industrial and electronic applications requiring a stable 24V DC output from a 9.2V to 18V DC input source. With a maximum output power of 50.4W and an output current of 2.1A, it ensures efficient power delivery with 74% efficiency and low ripple noise of 150mV peak-to-peak.

This chassis mounted converter provides regulated and isolated voltage conversion, suitable for environments requiring robust protection against electrical faults. Operating temperature ranges from -10°C to 60°C, the SD-50A-24 supports harsh industrial conditions.

Features include adjustable output voltage from 23V to 30V, 1.5kV AC isolation between input and output, and compliance with EAC and EN standards including EMC EN 55022 Class B for electromagnetic compatibility. It also offers built-in protections such as short circuit, overload, and overvoltage safeguard, along with an LED power-on indicator for easy monitoring.

The compact dimensions of 159mm in length, 97mm width, and 38mm depth, paired with a weight of 430g, allow for easy integration in panels and chassis-based assemblies. The product demonstrates a mean time between failure (MTBF) of over 3.2 million hours, ensuring long-term reliability for industrial, laboratory, manufacturing, and power supply applications.

High reliability and long MTBF enhance operational stability. Wide 2:1 input voltage allows flexibility in power sources. Secure chassis mounting for easy installation and maintenance. Adjustable output voltage meets varied application requirements.

Comprehensive protection features ensure safety and durability. Compliance with international EMC and safety standards. Compact form factor suitable for electronic component assemblies. Low ripple noise ideal for sensitive electronic equipment.

Efficient power conversion reduces energy loss. LED indicator simplifies operational status checks.

This MEAN WELL DC/DC Converter is ideally suited for applications in industrial equipment, control systems, communication devices, and other electronics requiring a reliable isolated power conversion solution. Browse more products in the EnvMart DC/DC Converter category for related components.
