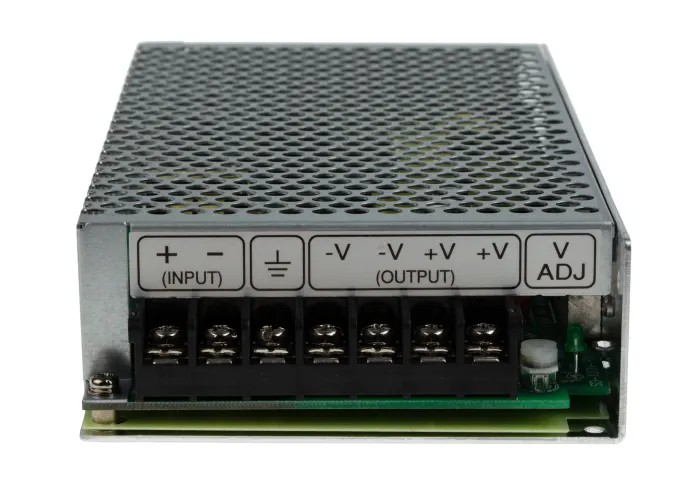

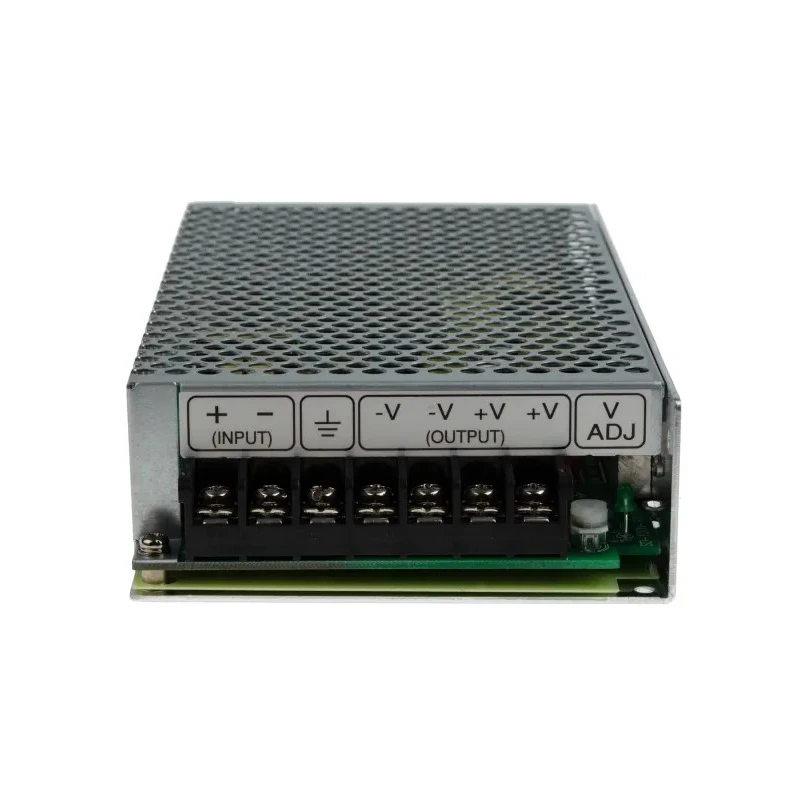

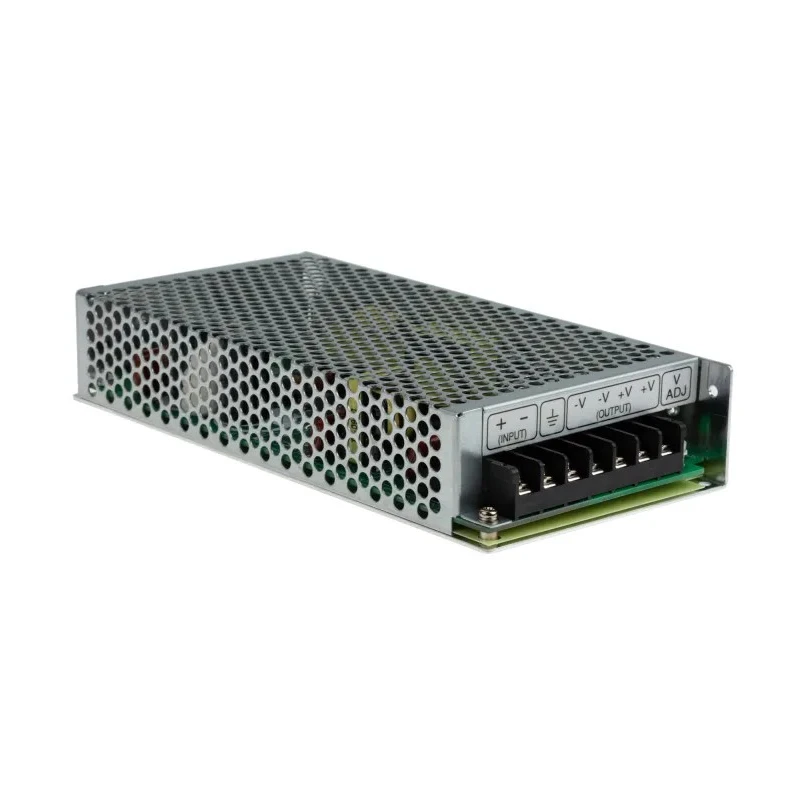

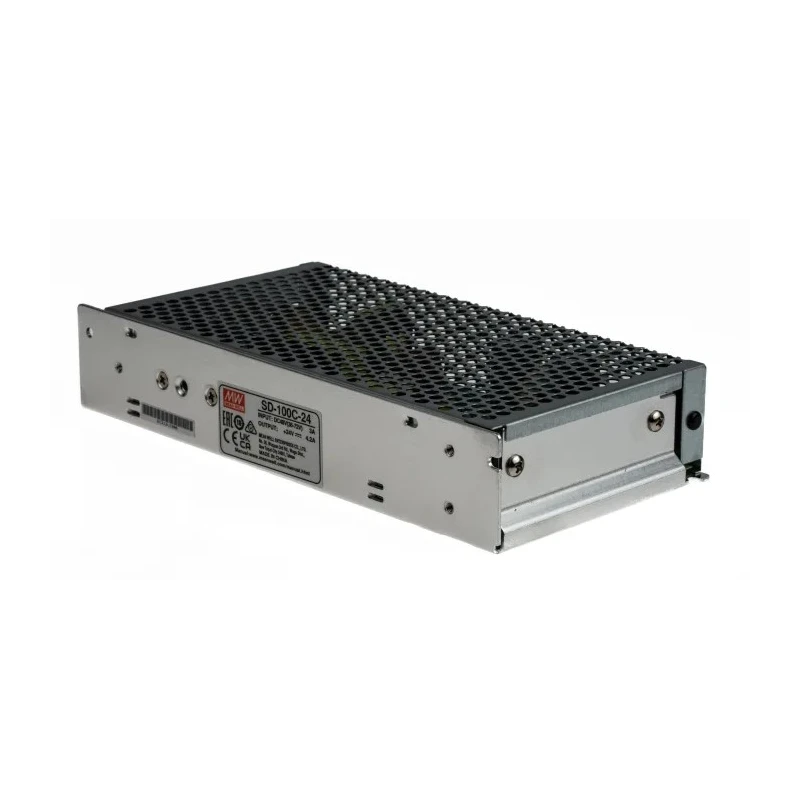

MEAN WELL Regulated Isolated DC/DC Converter 24V Output, 72V dc Input, 100.8W, Chassis Mount SD-100C-24
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL SD-100 DC/DC Converter, 24V dc/, 72V dc |
| Brand | MEAN WELL |
| Efficiency | 81% |
| Length | 199mm |
| Model | SD-100C-24 |
| Depth | 38mm |
| Gross Weight | 650g |
| Width | 98mm |
| Mount Type | Chassis Mount |
| Series | SD-100 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| MTBF | 355500h |
| Number of outputs | 1 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 100.8W |
| Maximum Input Voltage | 72V dc |
| Standards/Approvals | EN/IEC |
| Minimum Input Voltage | 36V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 0A |
| Output Voltage Adjustment Range | 23 → 30 V |
| Isolation Voltage | 1.5kV ac |
| Output Current 2 | 4.2A |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Wide 2 | 1 input voltage range |
Key Features
- Regulated isolated DC/DC converter for stable power supply.
- Wide input voltage range from 36V to 72V dc for versatile usage.
- Output power rated at 100.8W with adjustable voltage between 23 to 30V.
- Compact chassis mount design for easy installation and heat dissipation.
- Built-in protections for short circuit, overload, and overvoltage.
- Operating temperature from -10°C to 60°C suitable for varied environments.
- Low ripple and noise level at 150mV peak-to-peak ensuring signal integrity.
- High reliability with mean time between failures (MTBF) of 355,500 hours.
Product Description
MEAN WELL SD-100C-24 is a high reliability regulated isolated DC/DC converter designed to provide stable 24V DC output from a wide input voltage range of 36 to 72V DC. This chassis mount converter supports industrial and commercial applications requiring efficient and robust power solutions.
Featuring a maximum output power of 100.8W and an adjustable output voltage from 23 to 30V DC, it ensures flexibility in precise voltage tuning. The device integrates protections against short circuits, overloads, and overvoltage to enhance durability and system safety.
The converter exhibits a ripple and noise specification of 150mV peak-to-peak, suitable for sensitive electronics. Its chassis mount design, with dimensions 199mm length, 98mm width, and 38mm depth, facilitates secure installation and heat management.
Operating reliably between -10°C and 60°C, the SD-100C-24 meets relevant EN/IEC standards for electromagnetic compatibility and safety. It features an isolation voltage rating of 1.5kV AC, guarding against electrical noise and interference.
Regulated isolated DC/DC converter for stable voltage output. Wide 2:1 input voltage ratio from 36 to 72V DC. Output voltage adjustment range between 23 and 30V DC. Maximum output power of 100.8 watts. Built-in protection mechanisms: short circuit, overload, overvoltage.
Ripple and noise level limited to 150mV Pk-Pk. High MTBF of 355,500 hours ensures long-term reliability. Chassis mount type with compact footprint. Operating temperature range from -10 to 60 degrees Celsius. Compliance with EN/IEC standards for quality and safety.
Isolation voltage rating of 1.5kV AC for electrical safety.
This DC/DC Converter is widely used in industrial power supply systems, automation controls, instrumentation, and telecommunications equipment. Its high efficiency and protective features make it suited for demanding environments requiring stable power conversion.
MEAN WELL products like the SD-100C-24 are known for quality and engineering excellence. Explore EnvMart’s extensive range of power supplies and converters for your industrial and commercial project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model can be adjusted between 23V and 30V DC.
It has a maximum output power of 100.8W.
This unit supports a wide input voltage range from 36V to 72V DC.
The dimensions of this chassis mount converter are 199mm in length, 98mm in width, and 38mm in depth.
The isolation voltage rating for the SD-100C-24 is 1.5kV AC.
This converter operates reliably within a temperature range of -10°C to 60°C.
It includes built-in protections against short circuits, overloads, and overvoltage.
The ripple and noise level is limited to 150mV peak-to-peak.
This model has an efficiency rating of 81%.
The gross weight of this unit is 650g.
It complies with relevant EN/IEC standards for electromagnetic compatibility and safety.
This converter features a chassis mount design for easy installation.
