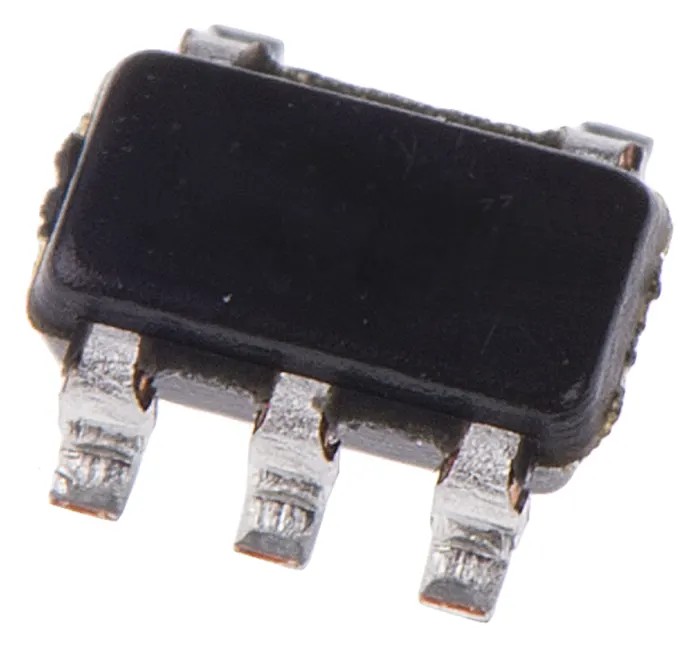

STMicroelectronics Operational Amplifier 20 MHz 5-Pin 5.5V SOT-23 TSV991ILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 2.9mm |
| Model | TSV991ILT |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | TSV991 |
| Output Current | 16mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 20MHz |
| Input Bias Current | 100 pA |
| Vos - Input Offset Voltage | 7.5 mV |
| Slew Rate | 10V/μs |
| Low input offset voltage | 1.5 mV max. (A grade) |
| High output current | 35 mA |
| ESD high tolerance | 5 kV |
Key Features
- Single channel operational amplifier with 5 pins ensuring compact design.
- High gain bandwidth product of 20 MHz suitable for fast signal processing.
- Operates from a minimum supply voltage of 3V up to a maximum of 5.5V for flexible power options.
- Low input bias current of 100 pA supports precision applications.
- Wide operating temperature range from -40°C to 125°C for versatile environment use.
- Low input offset voltage of 7.5 mV maintains signal integrity.
- High slew rate of 10 V/µs ensures rapid signal changes are accurately tracked.
- RoHS compliant and meets automotive standard AEC-Q100 for reliability.
Product Description
The STMicroelectronics TSV991ILT is a high-performance operational amplifier designed for industrial, automotive, and general electronics applications. Featuring a single channel in a 5-pin SOT-23 surface-mount package, this amplifier provides a gain bandwidth product of 20 MHz and operates at supply voltages from 3V to 5.5V, making it ideal for low voltage, low power circuits.
Its low input bias current of 100 pA and low input offset voltage of 7.5 mV support precision signal amplification, while the high slew rate of 10 V/µs enables fast transient response in high-frequency circuits. Operating reliably across a broad temperature range from -40°C to 125°C and conforming to the automotive AEC-Q100 standard, it suits automotive electronics and harsh environments.
The device is compact in size with physical dimensions of 2.9 mm length, 1.6 mm width, and 1.05 mm height, facilitating integration into dense electronic assemblies. It offers robust output current capability up to 16 mA with a high tolerance to electrostatic discharge at 5 kV, thus enhancing system durability.
Applications include sensor signal conditioning, feedback control systems, power management, and analog interfacing in industrial, automotive, communication, and consumer electronics sectors.
Single channel operational amplifier with 5 pins ensuring compact design. High gain bandwidth product of 20 MHz suitable for fast signal processing. Operates from a minimum supply voltage of 3V up to a maximum of 5.5V for flexible power options.
Low input bias current of 100 pA supports precision applications. Wide operating temperature range from -40°C to 125°C for versatile environment use. Low input offset voltage of 7.5 mV maintains signal integrity. High slew rate of 10 V/µs ensures rapid signal changes are accurately tracked.
RoHS compliant and meets automotive standard AEC-Q100 for reliability. Compact dimensions of 2.9mm length, 1.6mm width, and 1.05mm height suitable for space-constrained PCB layouts. Discover more STMicroelectronics Operational Amplifiers and explore other semiconductor components in EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 20 MHz, making it suitable for fast signal processing applications.
It operates from a minimum supply voltage of 3V up to a maximum of 5.5V, providing flexible power options for various applications.
The input bias current for this operational amplifier is 100 pA, which supports precision applications.
This model has compact dimensions of 2.9 mm in length, 1.6 mm in width, and 1.05 mm in height, facilitating integration into space-constrained PCB layouts.
The slew rate of this operational amplifier is 10 V/µs, ensuring that rapid signal changes are accurately tracked.
The input offset voltage is 7.5 mV, which helps maintain signal integrity during amplification.
It comes in a 5-pin SOT-23 surface-mount package, which is designed for compact applications.
The maximum output current capability of the TSV991ILT is 16 mA, suitable for various signal amplification tasks.
Yes, it is RoHS compliant and meets the automotive standard AEC-Q100 for reliability in automotive applications.
The TSV991ILT has a high tolerance to electrostatic discharge at 5 kV, enhancing system durability.
