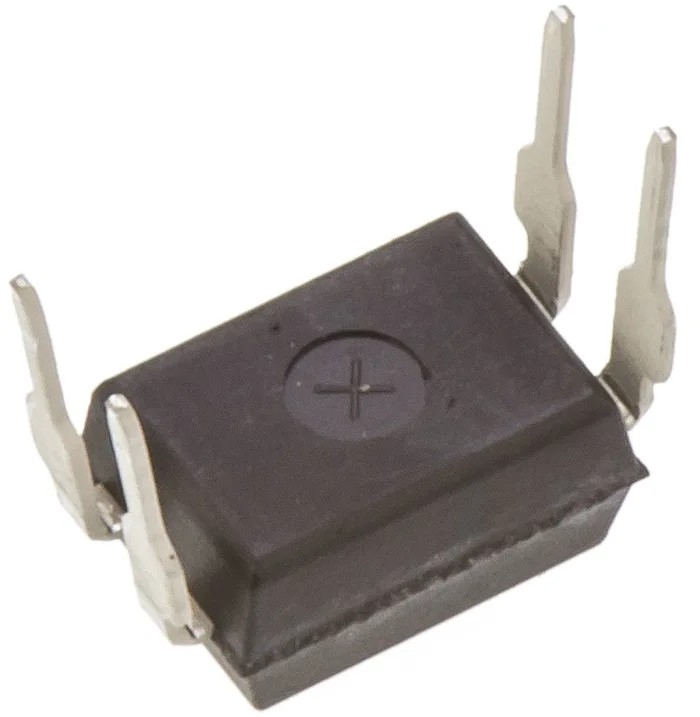

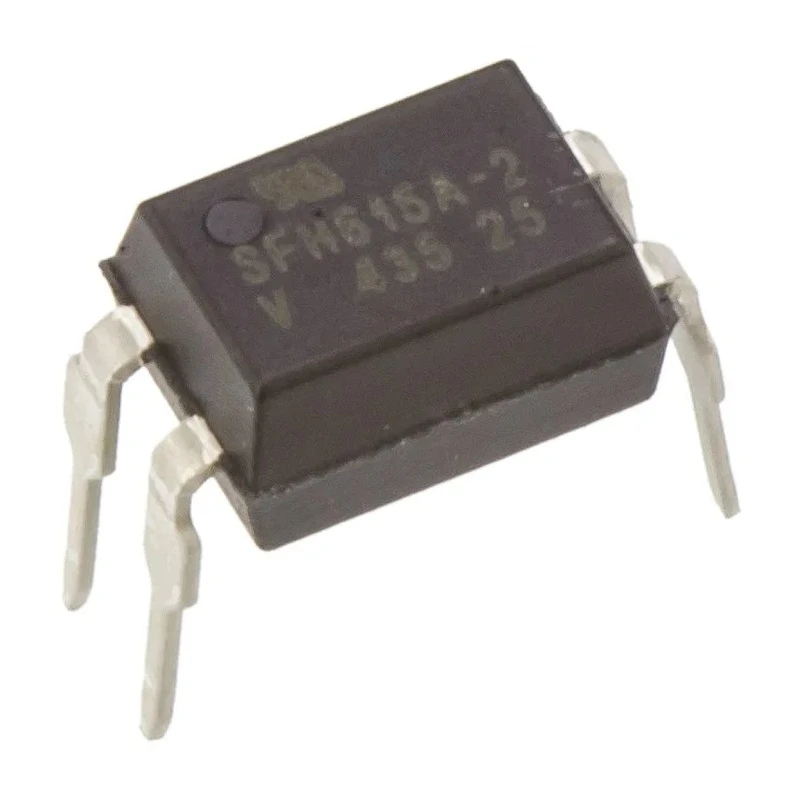

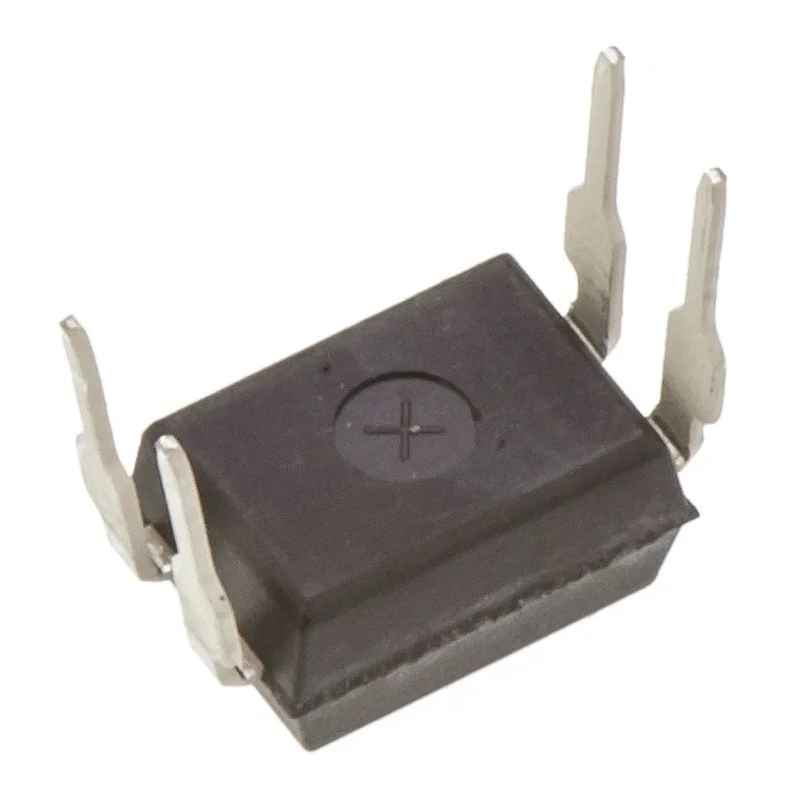

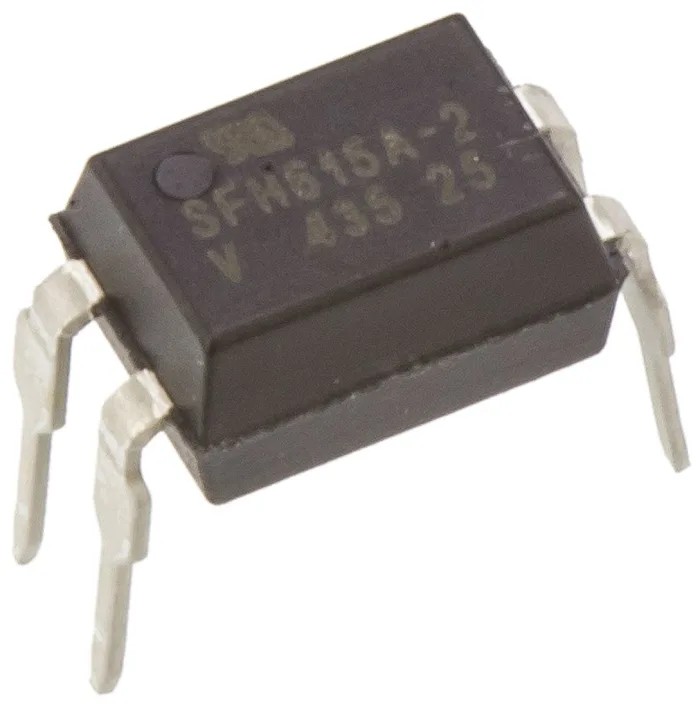

Vishay DC Input Transistor Output Optocoupler Through Hole 4-Pin PDIP SFH615A-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | SFH615A-2 |
| Mount Type | Through Hole |
| Output type | Transistor |
| Series | SFH |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 1.65V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 2μs |
| Maximum Current Transfer Ratio | 125% |
| Typical Fall Time | 14μs |
| Minimum Current Transfer Ratio | 63% |
Key Features
- Offers high voltage isolation up to 5300 Vrms ensuring electrical safety.
- Typical rise time of 2 microseconds provides fast switching performance.
- Maximum input current rating of 60 mA suitable for various input applications.
- Operating temperature range from -55°C to 100°C guarantees stable performance under harsh conditions.
- Utilizes a transistor output providing robust electronic coupling.
- Minimum current transfer ratio of 63% and maximum of 125% enable efficient signal transfer.
- Packaged in a 4-pin PDIP through-hole form factor for easy PCB installation.
- Complies with industry standards including DIN EN 60747-5-2, RoHS 2002/95/EC, WEEE 2002/96/EC, and UL1577 certification.
Product Description
Vishay SFH615A-2 is a DC input optocoupler featuring a transistor output and a 4-pin PDIP through-hole package. It provides exceptional electrical isolation up to 5300 Vrms, making it suitable for applications requiring high voltage safety and signal integrity.
This optocoupler offers fast switching with a typical rise time of 2 microseconds and a typical fall time of 14 microseconds. Its maximum input current is rated at 60 mA, supporting reliable operation in diverse electronic circuits.
The device functions efficiently within a temperature range from -55°C to 100°C, ensuring robust performance in industrial, telecom, and smart metering environments. It supports minimum and maximum current transfer ratios of 63% and 125%, respectively, facilitating effective signal transmission.
High voltage isolation of up to 5300 Vrms for safe electrical separation. Fast response times optimize switching speed in electronic systems. Transistor output configuration for enhanced compatibility in digital circuits.
Wide temperature range supports operation in harsh conditions. Comprehensive industry standard certifications for quality assurance. Through-hole 4-pin PDIP packaging eases circuit board assembly. Applied in AC adapters, industrial controls, telecommunications, and smart meter systems.
New product condition guarantees latest technology and reliability.
Ideal for designers and engineers requiring a reliable Optocoupler with robust electrical isolation and fast response times. Available as new units, these components integrate well within power supplies, programmable logic controllers, and office electronics.
Explore more Vishay electronic components for advanced optoelectronics applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SFH615A-2 offers high voltage isolation up to 5300 Vrms, ensuring electrical safety in various applications.
It has a typical rise time of 2 microseconds, providing fast switching performance in electronic systems.
The maximum input current rating for this model is 60 mA, suitable for a variety of input applications.
This optocoupler operates within a temperature range from -55°C to 100°C, ensuring stable performance under harsh conditions.
It utilizes a transistor output configuration, which enhances compatibility in digital circuits.
The minimum current transfer ratio is 63%, while the maximum is 125%, enabling efficient signal transfer.
This model is packaged in a 4-pin PDIP through-hole form factor, facilitating easy PCB installation.
The typical fall time of the SFH615A-2 is 14 microseconds, contributing to its overall switching performance.
It complies with various industry standards including DIN EN 60747-5-2, RoHS 2002/95/EC, WEEE 2002/96/EC, and UL1577 certification.
This optocoupler features a single channel design, making it suitable for various applications.
The maximum forward voltage for this model is 1.65V, which is essential for its operation.
The SFH615A-2 is manufactured in India, ensuring compliance with quality standards.
