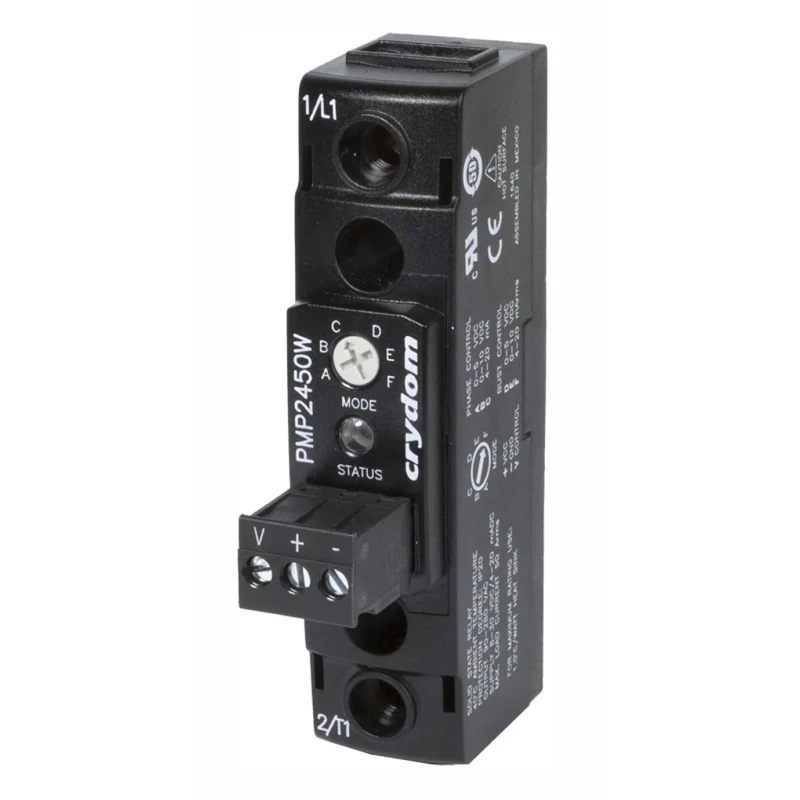

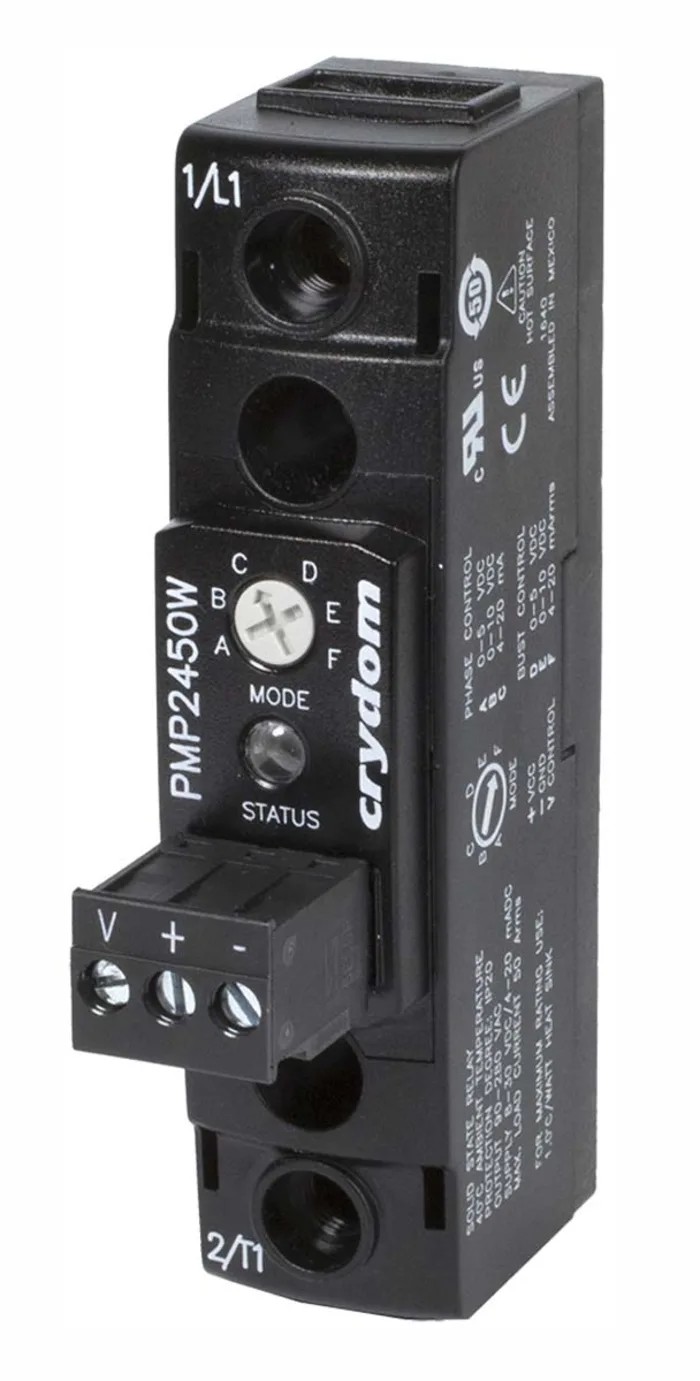

Crydom PMP Series Solid State Relay Panel Mount 280 V AC Load 10 V DC Control 50 A Load PMP2450W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 91.9mm |
| Length | 22.5mm |
| Model | PMP2450W |
| Mount Type | Panel |
| Series | PMP |
| Maximum Operating Temperature | 70°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Maximum Load Current | 50A |
| Standards/Approvals | RoHS, UL, CSA, CE |
| Maximum Load Voltage | 280V ac |
| Minimum Load Voltage | 90V ac |
| Minimum Control Voltage | 0V dc |
| Maximum Control Voltage | 10V dc |
| Off State Leakage Current | 4mArms |
Key Features
- Equipped with microcontroller-based technology for precise power control.
- Capable of phase angle and burst fire control operation modes.
- Supports 0 V DC to 10 V DC control input voltage range.
- Features LED multi-function status indicator for operational feedback.
- Uses screw terminal type connections for reliable mounting.
- Operates efficiently in temperatures from -25°C to 70°C.
- Compliant with RoHS, UL, CSA, and CE standards.
- Designed with 4 mA to 20 mA analog control signal compatibility.
Product Description
Crydom PMP2450W Solid State Relay is a high-performance panel mount proportional controller designed for precise control of power delivered to single phase AC loads up to 50 A and 280 V AC maximum load voltage. Utilizing advanced microcontroller-based technology, it offers reliable phase angle and burst fire control methods to accommodate a wide variety of industrial and commercial applications.
The relay supports control voltages ranging from 0 V DC to 10 V DC, with selectable input types and operational modes that include phase angle control and burst fire control with distributive zero cross. This versatility enables effective power regulation for lamp dimming, resistive heating, and other load control scenarios commonly found in industrial automation, HVAC systems, manufacturing processes, and laboratory setups.
Its panel mount form factor simplifies installation with screw-type terminals, and the device is equipped with an LED multi-function status indicator facilitating easy operational monitoring. The unit maintains stable operation over a wide temperature range from -25°C to 70°C.
Designed to meet stringent environmental and safety standards including RoHS, UL, CSA, and CE certifications, the PMP2450W ensures compliance and reliability in demanding environments.
The product dimensions are 91.9 mm in height and 22.5 mm in length, with an off-state leakage current of 4 mArms and a capacitance of 8 pF, supporting stable and low-loss operation.
Microcontroller-based proportional control with selectable phase angle or burst fire operation. Supports 0 - 10 V DC or 4 - 20 mA analog input signals for flexible control options. Panel mount design with screw terminals for secure connections.
Operating temperature range from -25°C to 70°C ensures reliability in varied environments. RoHS, UL, CSA, and CE compliant for safety and environmental standards. Dimensions: 91.9 mm height, 22.5 mm length for compact installation.
Low off-state leakage current of 4 mArms reduces energy dissipation. Capacitance value of 8 pF supports fast switching performance. Ideal for industrial, laboratory, HVAC, manufacturing, and commercial applications requiring precise power control.
Explore more Solid State Relays and industrial components at EnvMart for reliable electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load voltage for this model is 280 V AC.
It supports a control voltage range from 0 V DC to 10 V DC.
The PMP2450W can handle a maximum load current of 50 A.
The dimensions are 91.9 mm in height and 22.5 mm in length.
It is compatible with control signals of 0 - 10 V DC or 4 - 20 mA analog input.
The operating temperature range is from -25°C to 70°C.
This model uses a panel mount type with screw terminals for secure connections.
It is compliant with RoHS, UL, CSA, and CE standards.
The off-state leakage current is 4 mArms.
The capacitance value is 8 pF, supporting fast switching performance.
It supports phase angle and burst fire control operation modes.
This solid state relay is suitable for industrial automation, HVAC systems, manufacturing processes, and laboratory setups.
