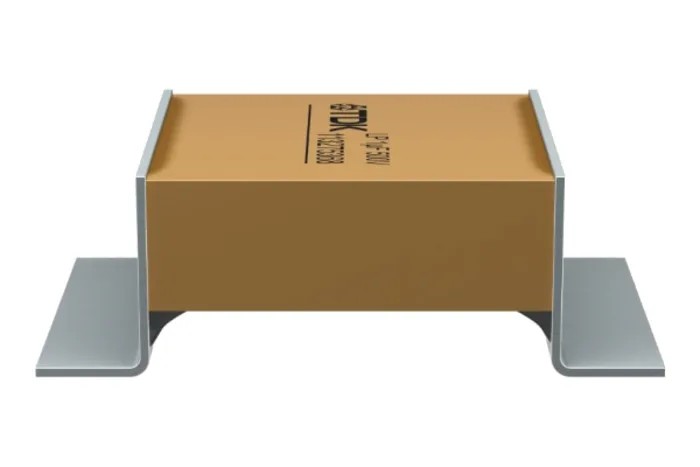

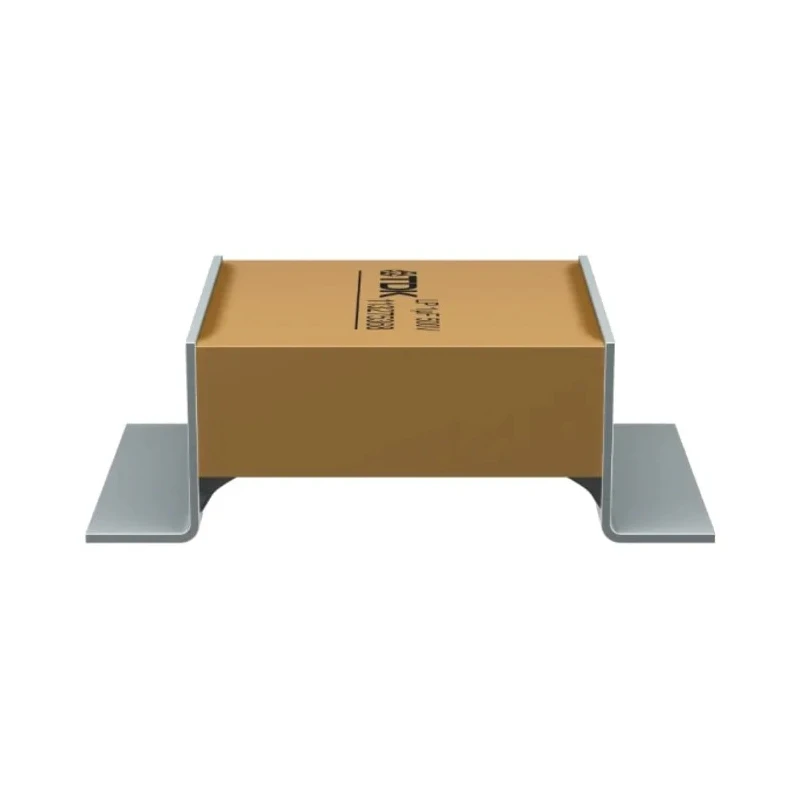

TDK 250 nF Multilayer Ceramic Capacitor 900V dc ±20% Tolerance Surface Mount PLZT Dielectric AEC-Q200 B58031I9254M062

TDK B58031I9254M062 is a multilayer ceramic capacitor designed for surface mount applications with a capacitance of 250 nF and a voltage rating of 900V dc. This capacitor features a ±20% tolerance and is manufactured with PLZT dielectric material, optimized for high frequency performance up to several MHz with minimized dielectric loss.

The capacitor’s robust construction supports a wide operating temperature range from -40°C to 150°C, making it suitable for demanding industrial, automotive, and electronic applications. Its low equivalent series inductance (ESL) and resistance (ESR) result in low power loss and high ripple current capability, improving overall circuit efficiency and reliability.

Qualification according to the automotive standard AEC-Q200 ensures this device meets stringent quality and reliability criteria necessary for automotive electronics systems and other high-reliability industrial sectors. The compact L-Style package measures 6.84 mm in length, 7.85 mm in width, and 4 mm in height, facilitating easy integration on compact printed circuit boards (PCB).

This capacitor is designed for surface mounting with solder termination and supports reflow soldering process standards widely used in electronics manufacturing.

Key features include high-temperature robustness, minimized dielectric absorption, and optimized high-frequency performance. The product is manufactured in Austria, affirming its premium quality and compliance with international standards.

High ripple current capability. High temperature robustness up to 150°C. Low ESL and ESR for reduced power loss. Optimized for high frequencies up to several MHz. Qualification based on AEC-Q200 automotive standard. Dielectric: PLZT with increased capacitance under DC bias.

Compact L-Style package: 6.84mm x 7.85mm x 4mm. Surface mount with solder terminations. Operational temperature range -40°C to 150°C. Manufactured in Austria.

This Multilayer Ceramic Capacitor is ideal for use in industrial, automotive, electronic manufacturing, telecommunications, and consumer electronics sectors. Its features make it suitable for high-frequency circuits, power management applications, and environments requiring high reliability and thermal stability.
