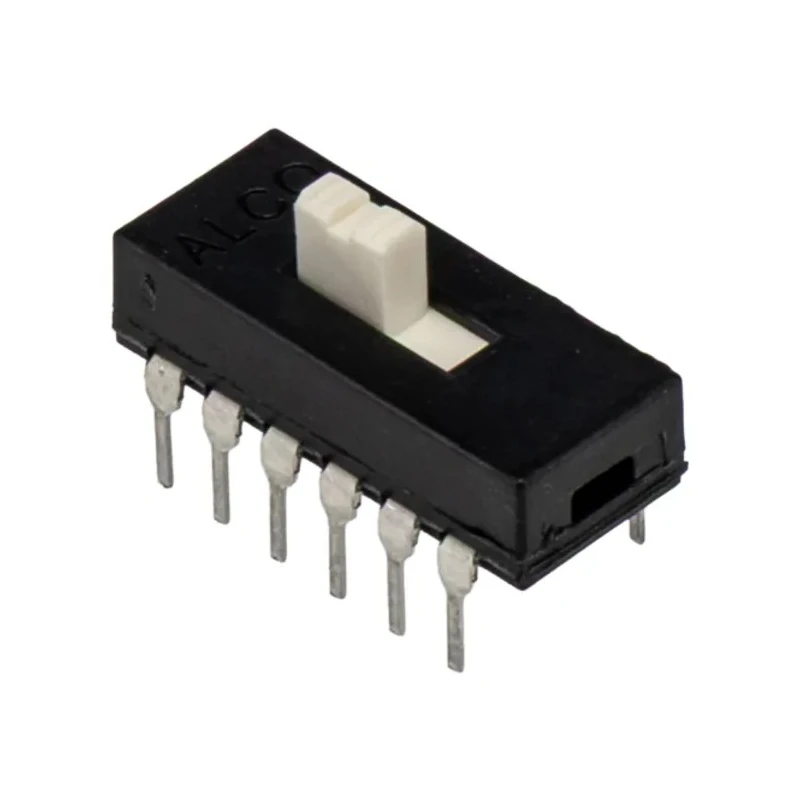

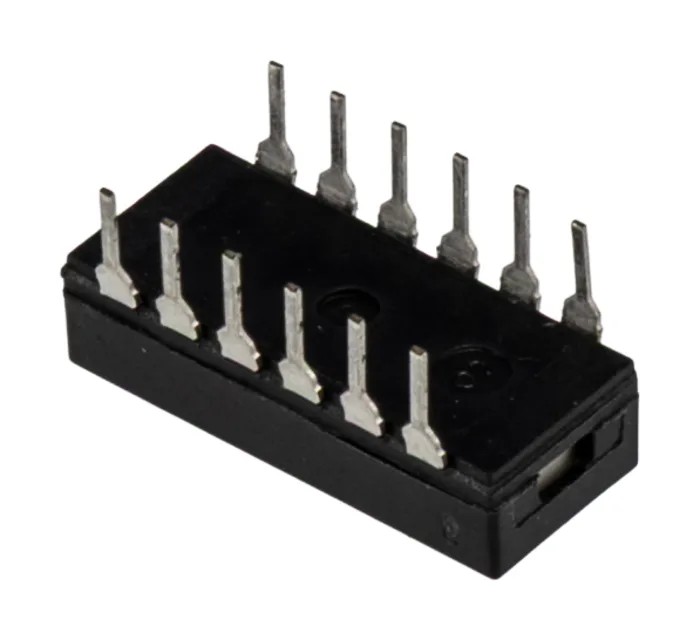

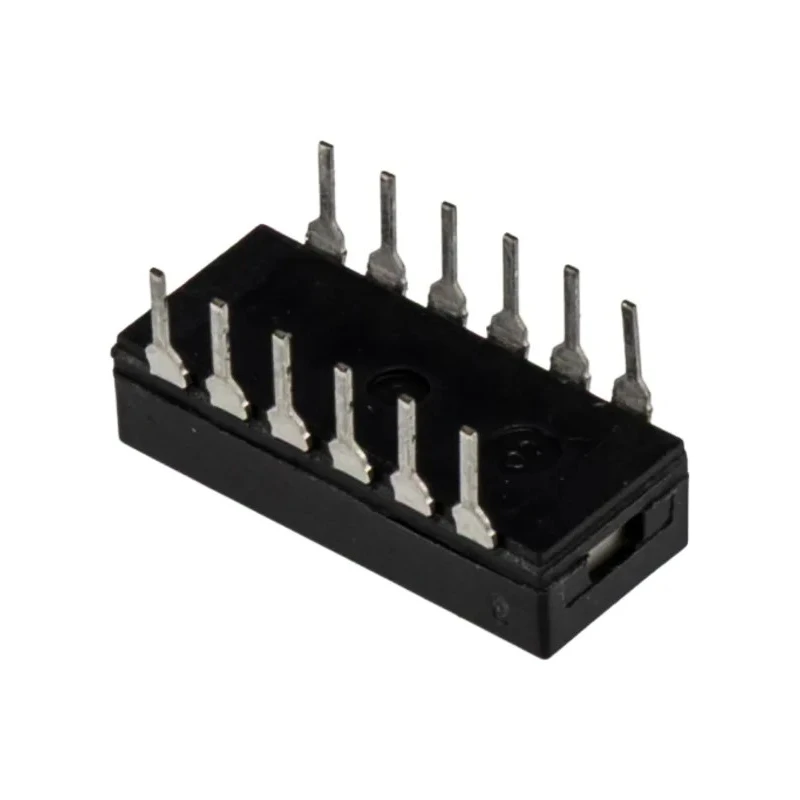

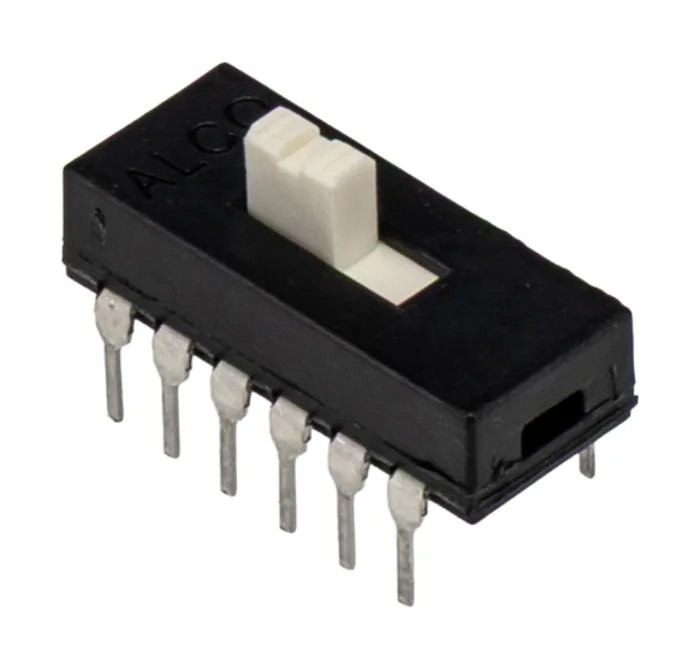

TE Connectivity PCB Slide Switch 4PDT Latching Nylon Actuator 300mA 115V AC ASE4204
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature Range | -40°C +80°C, making them particularly suited to harsh environments |
| Length | 17.38mm |
| Model | ASE4204 |
| Depth | 7.36mm |
| Width | 7.37mm |
| Mount Type | PCB |
| Series | ASE |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 4PDT |
| Switch Configuration | On-On-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS, UL |
| Switch Operation | Latching |
| Switch Contact Current | 300mA |
| Mechanical Life | 15000Cycles |
| Contact AC Voltage | 115V ac |
| Electrical Life | 10000 operations |
| Actuator Material | Nylon |
Key Features
- Features a 4PDT contact configuration with an On-On-On switch setup.
- Mounts securely on PCB with solder-type terminals for robust connection.
- Latching switch operation ensures stable state retention during use.
- Rated for 300mA current at 115V AC for precise switching function.
- Nylon actuator material provides durability across -40°C to 80°C operating temperatures.
- Meets RoHS and UL standards ensuring quality and compliance.
- Mechanical life tested for 15000 cycles for long-term reliability.
- Electrical life rated to 10000 operations suitable for instrumentation and testing equipment.
Product Description
TE Connectivity ASE4204 is a precision PCB slide switch featuring a 4PDT (Four Pole Double Throw) contact configuration designed for reliable latching operation. This slide switch incorporates a durable nylon actuator and is suitable for mounting on printed circuit boards with its solder terminal interface. The switch supports a contact current of 300mA at 115V AC, making it ideal for controlled switching in electronic instruments and telecom equipment.
Constructed to meet RoHS and UL standards, the ASE4204 switch is built to operate reliably within temperatures ranging from -40°C to 80°C, supporting applications in harsh environments. Its compact form factor with dimensions of 17.38mm (length), 7.37mm (width), and 7.36mm (depth) ensures easy integration on electronic assemblies.
The latching switch mechanism provides secure state holding during operation and features an On-On-On switch configuration that facilitates multiple circuit routing options. This product achieves a mechanical life expectancy of 15000 cycles and an electrical life of 10000 operations, underscoring its durability for high-use industrial and laboratory electronic devices.
Typical applications include instrumentation, test and measurement equipment, computer servers, and telecom switch gear, where reliable multi-pole switching is essential.
TE Connectivity's ASE series Slide Switches are engineered for professional through-hole PCB mounting with bifurcated double wipe contacts optimized for telecom-grade switching requirements.
Features a 4PDT contact configuration with an On-On-On switch setup. Mounts securely on PCB with solder-type terminals for robust connection. Latching switch operation ensures stable state retention during use. Rated for 300mA current at 115V AC for precise switching function.
Nylon actuator material provides durability across -40°C to 80°C operating temperatures. Meets RoHS and UL standards ensuring quality and compliance. Compact size with dimensions: length 17.38mm, width 7.37mm, depth 7.36mm.
Mechanical life tested for 15000 cycles for long-term reliability. Electrical life rated to 10000 operations suitable for instrumentation and testing equipment. Ideal for applications in electronics, computer servers, telecom-grade switching, and measurement devices.
Browse EnvMart for a wide range of TE Connectivity switches and related electronics components to meet industrial and laboratory automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 4PDT (Four Pole Double Throw) contact configuration, allowing for multiple circuit routing options.
It is rated for a contact current of 300mA at a voltage of 115V AC, making it suitable for controlled switching applications.
The mechanical life of this switch is tested for 15,000 cycles, ensuring long-term reliability in use.
It features solder-type terminals for secure mounting on printed circuit boards (PCBs).
The dimensions of this model are 17.38mm in length, 7.37mm in width, and 7.36mm in depth.
This switch meets RoHS and UL standards, ensuring quality and compliance for various applications.
It features a latching switch operation, which ensures stable state retention during use.
The electrical life of this switch is rated for 10,000 operations, making it suitable for high-use environments.
The actuator is made from nylon, providing durability across the specified operating temperature range.
Yes, it is designed for professional through-hole PCB mounting, ensuring a robust connection.
