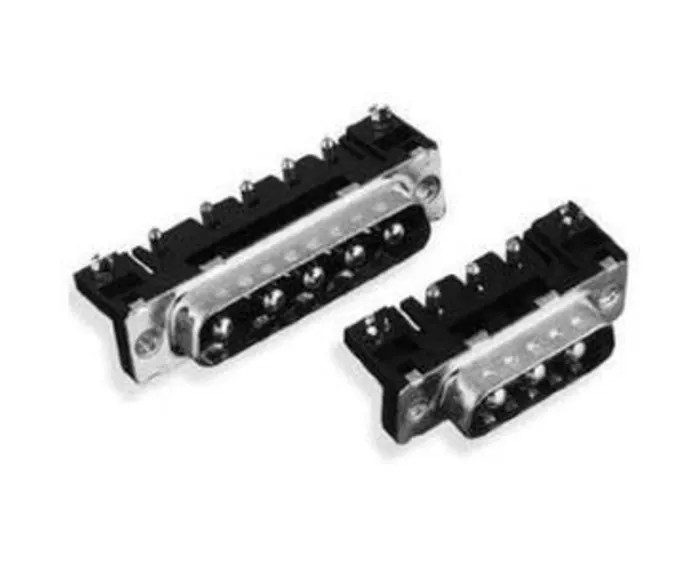

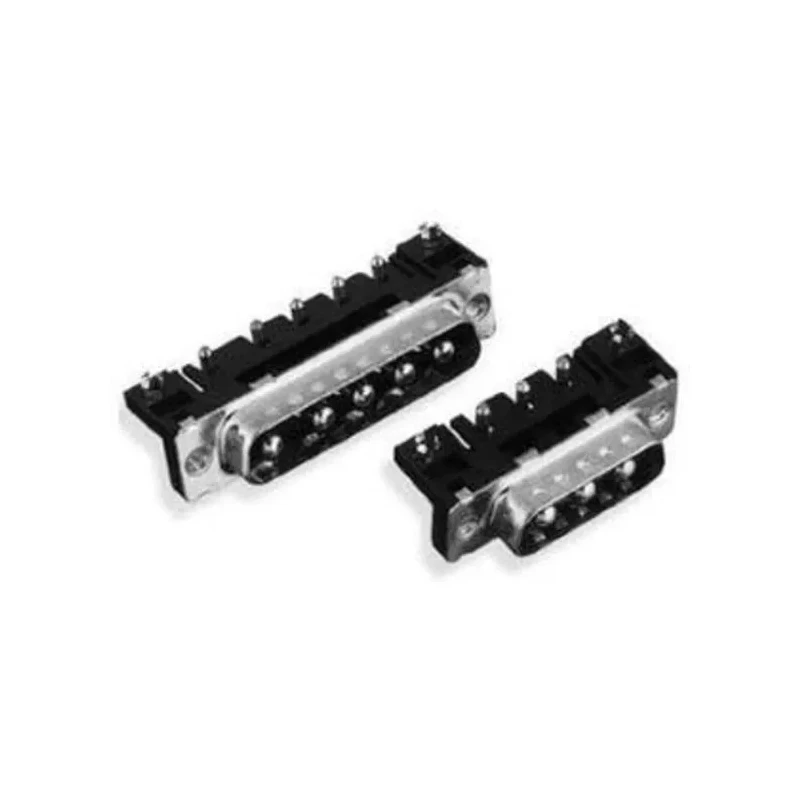

Amphenol Communications Solutions Delta D 3 Way Right Angle Plug-in D-Sub Connector, Screw Mount Male D3W3P36A6GL08LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 30A |
| Model | D3W3P36A6GL08LF |
| Mount Type | Plug-in |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Delta D |
| Mounting Hardware | Screw |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | A |
Key Features
- Designed with a right angle orientation for space-saving installations.
- Supports 3 electrical contacts carrying up to 30 amps of current.
- Constructed with thermoplastic housing and brass contacts plated with gold over nickel for corrosion resistance.
- Mounting hardware includes screws for secure and stable connections.
- Operates reliably in temperature ranges from -55°C to 125°C.
- Rated for 300 volts suitable for various industrial and communication tasks.
- Termination type is solder, ensuring a secure electrical bond.
- Connector gender and contact gender are both male for proper mating compatibility.
Product Description
Amphenol Communications Solutions model D3W3P36A6GL08LF is a Delta D series 3 Way Right Angle Plug-in D-Sub Connector designed to meet stringent industrial and communication connector requirements. With a compact right angle orientation, it facilitates space-efficient mounting in electronic assemblies.
This connector supports 3 male contacts made from brass with gold over nickel plating to ensure excellent conductivity and corrosion resistance. It operates at up to 30 amps current and 300 volts, making it ideal for heavy-duty power applications in telecommunications, industrial control, and instrumentation sectors.
The connector housing is made of durable thermoplastic material, while mounting is secured via screws for reliable mechanical fastening. Its temperature rating limits range from -55°C to 125°C, allowing usage in harsh environments. The termination method is solder, ensuring secure electrical connections.
This product provides robust and reliable connectivity within PCB and cable systems, adhering to the Delta D series standards. It is suitable for use in telecommunications, data communication equipment, instrumentation, and other industrial applications requiring dependable D-Sub connections.
Right angle orientation saves assembly space and improves cable routing. Three gold-plated brass contacts deliver reliable electrical performance. Thermoplastic housing ensures durability and electrical insulation. Screw mounting hardware provides mechanical stability.
Wide operating temperature range supports various environmental conditions. Rated at 30 amps and 300 volts for heavy-duty power applications. Solder termination type guarantees secure connections. Male connector and contacts ensure compatibility with respective female counterparts.
Manufactured in India to high-quality standards.
This Amphenol Communications Solutions D-Sub Connector is perfect for industrial, telecommunications, laboratory, and manufacturing environments needing reliable high-current, high-voltage, and high-temperature connectors. Explore more connectors and related components in the Electroics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 30 amps.
It is rated for 300 volts, making it suitable for various industrial applications.
The housing is made of thermoplastic, and the contacts are brass plated with gold over nickel for corrosion resistance.
It operates reliably in temperatures ranging from -55°C to 125°C.
This model features 3 male contacts.
The termination type is solder, ensuring a secure electrical bond.
It is designed for screw mounting, providing secure and stable connections.
This connector has a right angle orientation, which helps save space in installations.
It is manufactured in India.
It is suitable for telecommunications, data communication equipment, instrumentation, and other industrial applications requiring reliable D-Sub connections.
Both the connector and contact gender are male, ensuring proper mating compatibility with female counterparts.
