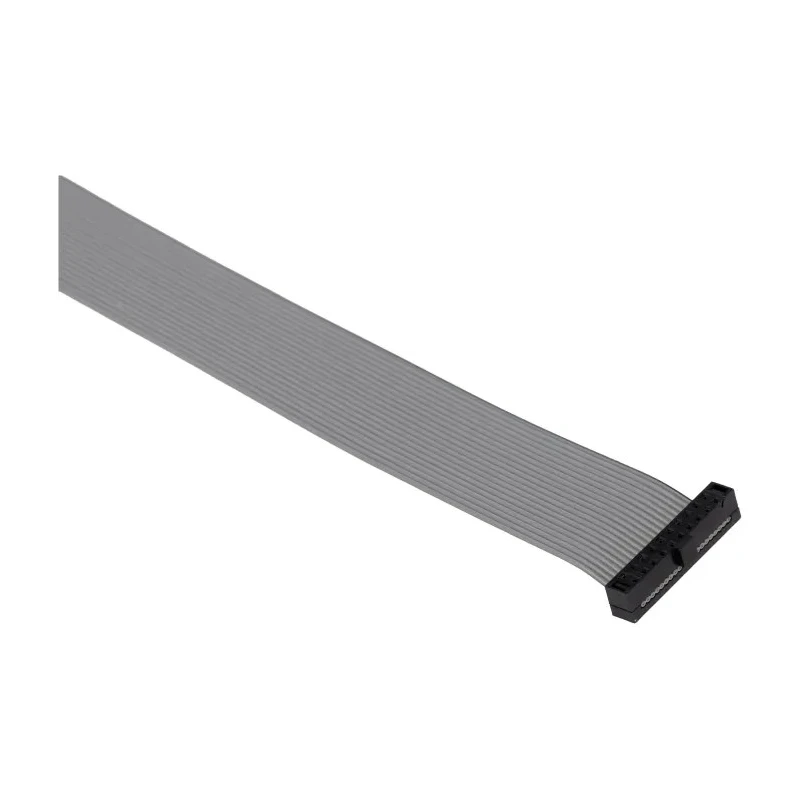

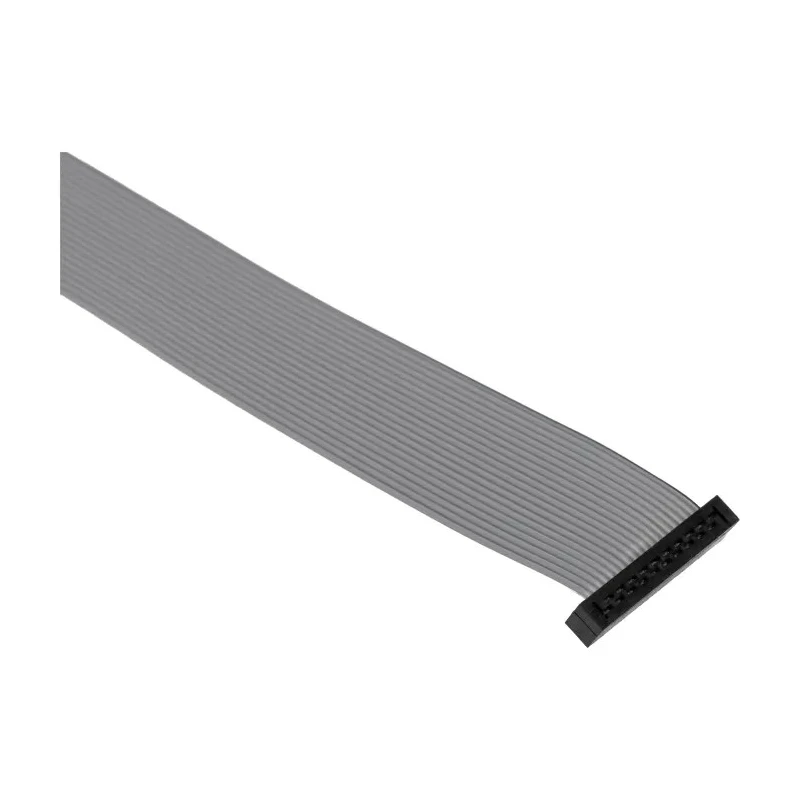

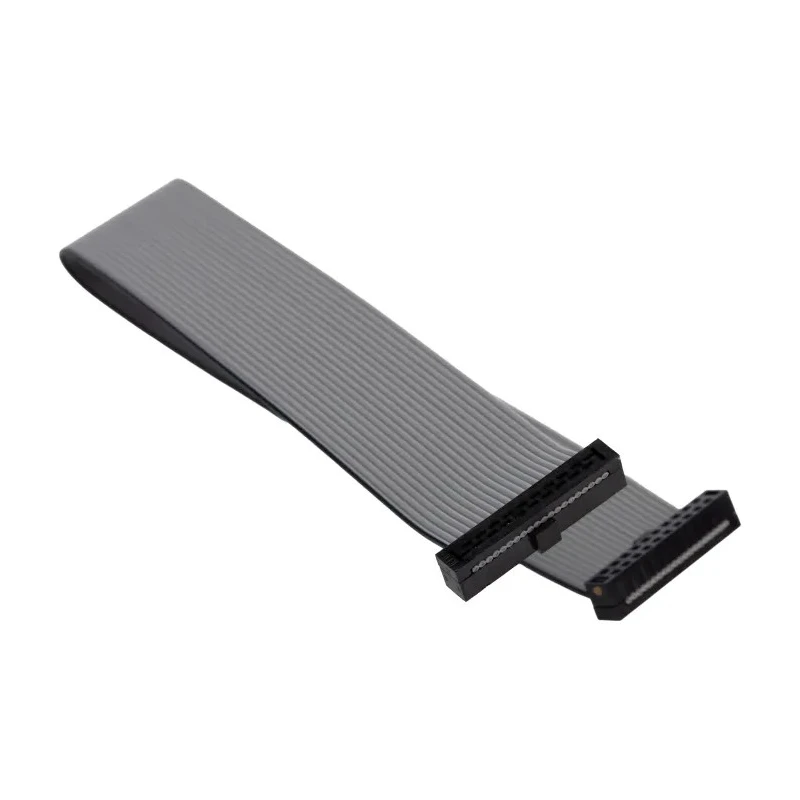

Samtec TCSD Series Flat Ribbon IDC Socket Cable Assembly 200 mm Length Tiger Eye IDC to Tiger Eye IDC TCSD-10-D-08.00-01-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | TCSD-10-D-08.00-01-N |
| Cable Length | 200mm |
| Series | TCSD |
| Cable Type | Flat Ribbon |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | RoHS, UL |
| Connector Type A | Tiger Eye IDC |
| Connector Gender A | Female |
| Jacket Colour | Grey |
| Contact Gender A | Female |
Key Features
- The cable assembly uses 28 AWG 7/36 stranded tinned copper wire for excellent conductivity.
- Each connection offers a 2.00 mm pitch double-row female socket for reliable interfacing.
- Gold plated Tiger Eye contacts ensure high signal integrity and durability.
- The grey PVC jacket provides flexibility and protection to the cable.
- This assembly is RoHS compliant and UL approved, ensuring adherence to industry standards.
- An accurate polarizing notch facilitates correct and secure mating of connectors.
- The cable length measures 200 mm, suitable for compact electronic applications.
- Compatible with Samtec TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, and ZSTMM series headers.
Product Description
Samtec TCSD-10-D-08.00-01-N IDC Socket Cable Assembly is a precision-engineered flat ribbon cable designed for electronic and electrical interconnections requiring high reliability.
This cable assembly features a 200 mm length flat ribbon cable incorporating 28 AWG 7/36 stranded tinned copper conductors insulated with flexible polyvinyl chloride to ensure durability and insulation.
Both ends terminate with Tiger Eye IDC double-row female sockets spaced at 2.00 mm pitch, equipped with highly reliable gold-plated contacts to reduce signal loss and corrosion over time.
The grey PVC jacket provides mechanical protection while maintaining cable flexibility and ease of routing in compact spaces. The assembled cable includes a polarizing notch to ensure accurate mating with corresponding connectors, minimizing connection faults.
This product is RoHS compliant and UL approved, meeting stringent environmental and safety standards prevalent in industrial, manufacturing, laboratory, automation, and electronic assembly environments.
Applications for this TCSD series cable assembly include wire-to-board connections in instrumentation, data communication systems, and electronic devices where compact size and dependable contact integrity are critical.
The cable assembly uses 28 AWG 7/36 stranded tinned copper wire for excellent conductivity. Each connection offers a 2.00 mm pitch double-row female socket for reliable interfacing. Gold plated Tiger Eye contacts ensure high signal integrity and durability.
The grey PVC jacket provides flexibility and protection to the cable. This assembly is RoHS compliant and UL approved, ensuring adherence to industry standards. An accurate polarizing notch facilitates correct and secure mating of connectors.
The cable length measures 200 mm, suitable for compact electronic applications. Compatible with Samtec TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, and ZSTMM series headers. Explore more in our extensive range of wire-to-board cables and Ribbon Cable solutions at EnvMart for precise industrial and laboratory wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The length of this cable assembly is 200 mm, making it suitable for compact electronic applications.
It features Tiger Eye IDC double-row female sockets for reliable interfacing.
The assembly uses 28 AWG 7/36 stranded tinned copper wire for excellent conductivity.
The jacket is made of flexible polyvinyl chloride (PVC), which provides protection and flexibility.
Yes, it is RoHS compliant and UL approved, ensuring adherence to industry standards.
The pitch of the double-row female sockets is 2.00 mm, facilitating secure connections.
The jacket of this cable assembly is grey, which aids in identification and organization.
It is compatible with Samtec TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, and ZSTMM series headers.
This cable assembly is suitable for wire-to-board connections in instrumentation, data communication systems, and electronic devices.
It includes a polarizing notch that facilitates correct and secure mating of connectors, minimizing connection faults.
The gold plating on the Tiger Eye contacts ensures high signal integrity and reduces the risk of corrosion over time.
This cable assembly is manufactured in India, reflecting its origin.
