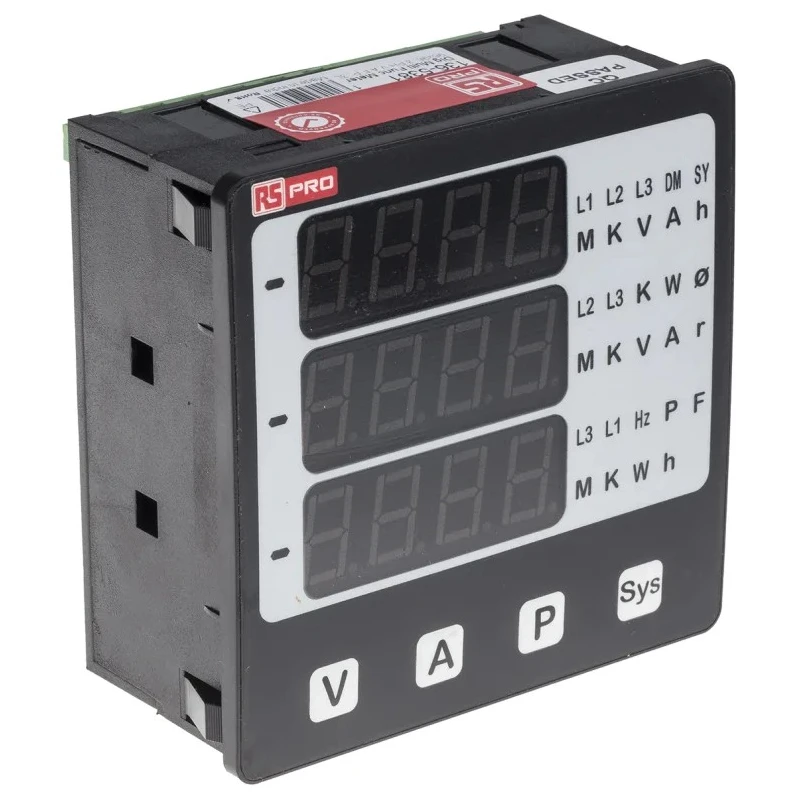

RS Pro Digital Panel Multifunction Meter Power Voltage Frequency Current LED Display 92mm x 92mm 136-5381

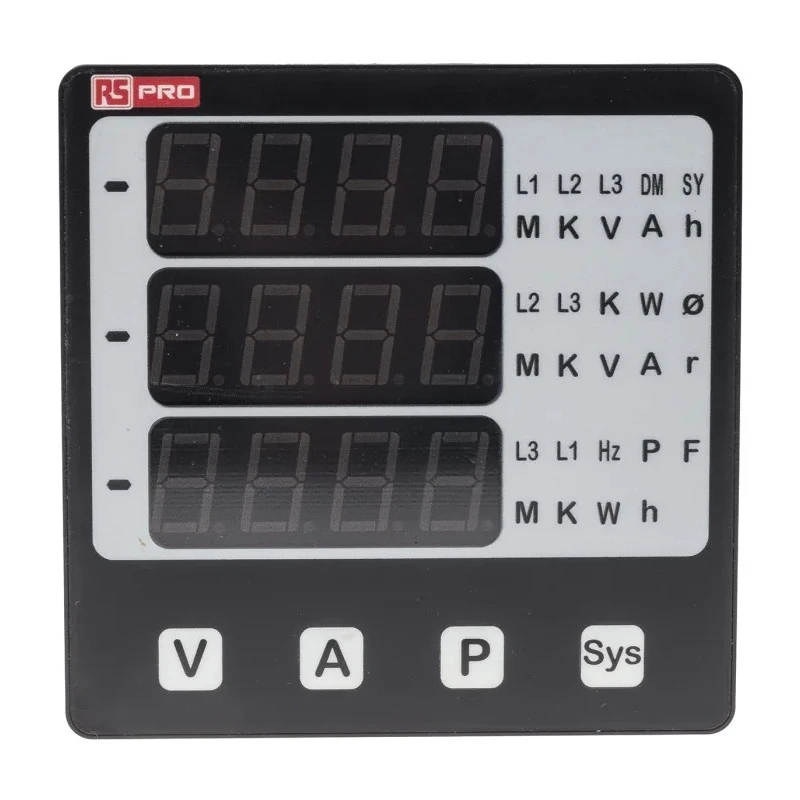

RS Pro 136-5381 Digital Panel Multifunction Meter is a high precision instrument designed for industrial and commercial electrical monitoring applications. This digital meter measures key electrical parameters such as AC voltage, AC current, frequency, active and reactive power, helping improve system diagnostics and control. It features a 4-digit, 3-line ultra-bright LED display allowing easy readout of measurements, suitable for use in 3 phase 3-wire and 3 phase 4-wire network configurations.

The meter supports true RMS measurement technology ensuring accurate readings across varying load conditions. Installation is effortless with a self-clicking panel mount design and a compact cutout size of 92 mm by 92 mm, and depth of 55 mm.

This model includes programmable current transformer (CT) and potential transformer (PT) ratios for onsite customization. Users can select CT secondary ratings of 1A or 5A, and PT secondary voltages from 100 VLL to 500 VLL, catering to different electrical systems. It also supports monitoring of frequency starting from 45 Hz and voltages up to 290 V AC RMS input voltage.

The multifunction meter provides advanced features such as limit switching (optional) for alerting over-current or voltage conditions. It can store minimum and maximum values for analysis and measures additional parameters like RPM, run hours, on hours, and counts number of power interruptions, aiding in preventive maintenance and operational efficiency.

Built to comply with IEC standards including IEC 60529 for IP protection, IEC 61010-1:2001 for safety, and IEC 61326-1:2005 for electromagnetic compatibility, the RS Pro 136-5381 is durable and suitable for use within operating temperatures between 0°C and 50°C. Its precision and versatility make it ideal for industrial automation systems, process control, and electrical panels.

The product is manufactured in India and is sold new. It is an essential tool for electrical engineers, technicians, and maintenance personnel looking to optimize electrical system performance and safety.

Features a bright 4-digit, 3-line LED display for clear readings. Designed for fast and easy panel installation with self-clicking mechanism. Supports true RMS measurements for accurate electrical readings. Programmable CT/PT ratios onsite for customizable measurements.

Includes user-selectable CT secondary 1A/5A and PT secondary voltage settings. Supports multiple network configurations including 3 phase 3 wire, 3 phase 4 wire, and single phase. Offers storage of minimum and maximum values for monitoring purposes.

Capable of measuring and displaying RPM, run hours, on hours, and number of interruptions. Explore more RS Pro digital panel meters and industrial automation equipment at EnvMart for reliable industrial-grade instrumentation.
