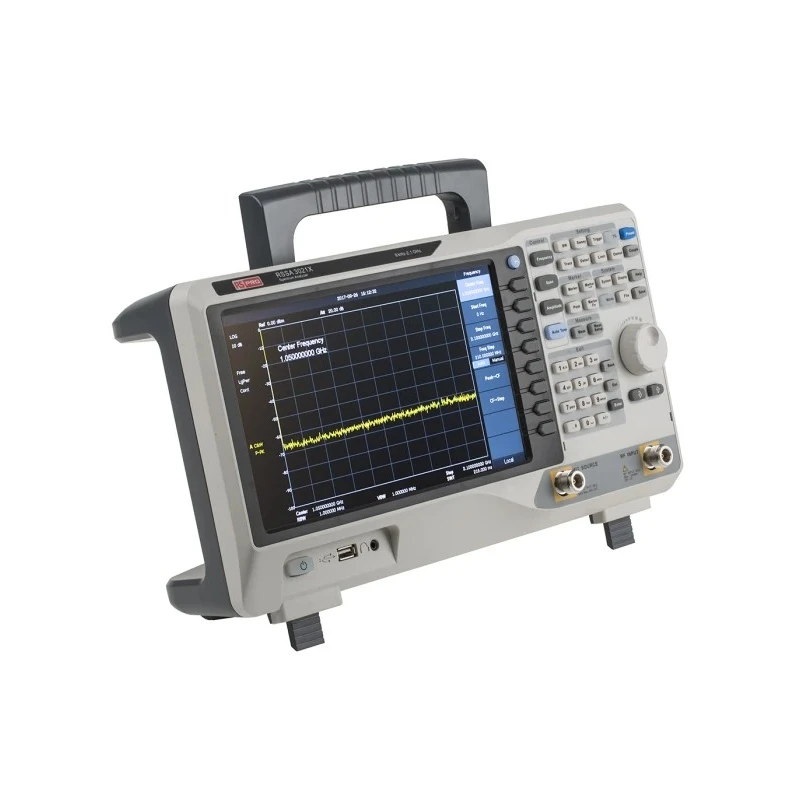

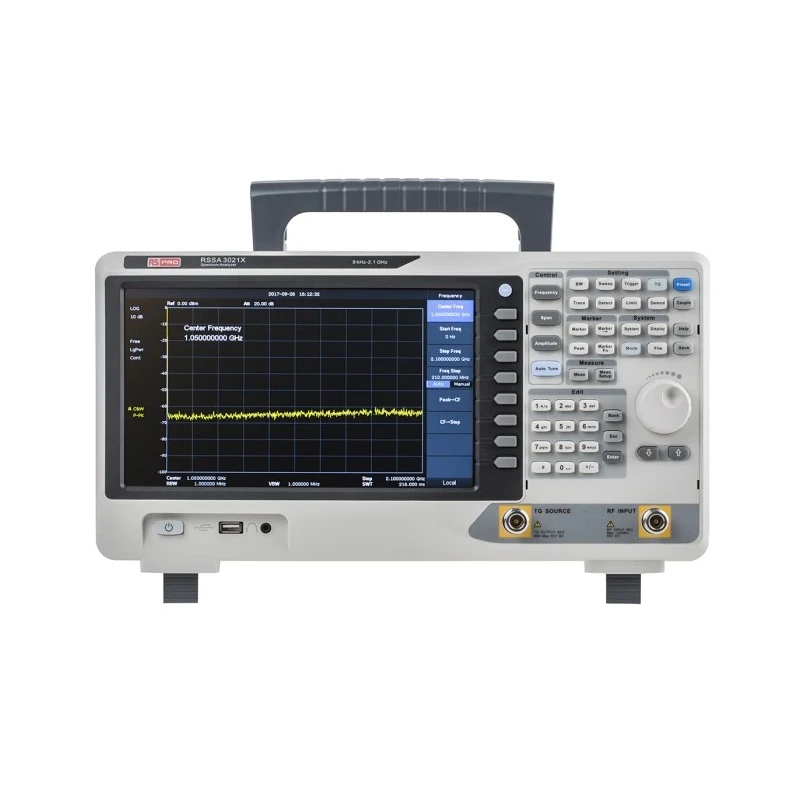

RS PRO Desktop Spectrum Analyser 2.1 GHz RSSA3021X

RS PRO RSSA3021X Desktop Spectrum Analyser is a high-quality instrument designed for precise and reliable frequency measurements with a bandwidth of 2.1 GHz and frequency range spanning from 9 kHz to 2.1 GHz. Equipped with advanced all-digital Intermediate Frequency technology, it offers superior measurement accuracy and frequency resolution, making it ideal for rigorous industrial and laboratory applications.

This analyser features a bright 10.1-inch WVGA TFT LCD with a resolution of 1024 by 600 pixels, ensuring clear display of waveforms and measurements. Operating sweep modes include single and continuous, complemented by setting modes such as span and zero span for flexible analysis. The device supports a resolution bandwidth range of 10 Hz to 1 MHz in a 1-3-10 sequence, providing versatility for detailed spectrum investigations.

The spectrum analyser includes a standard preamplifier and a BNC RF input connector, supporting compatibility with common equipment. Its amplitude accuracy of less than 0.7 dB enhances measurement reliability.

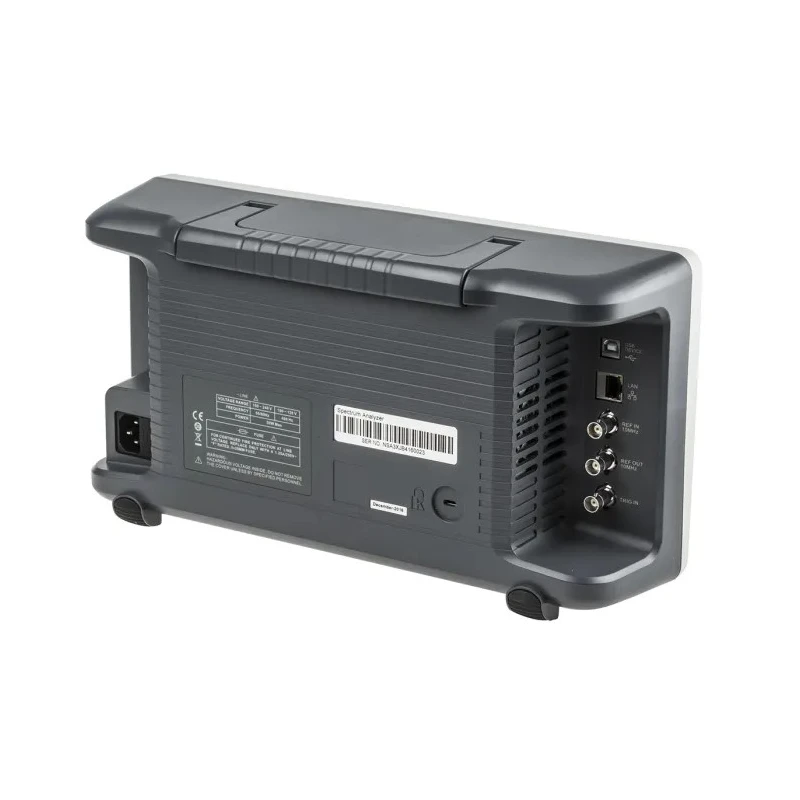

Designed as a desktop unit, it has compact dimensions of 393 mm in length, 207 mm in width, and a height of 116.5 mm, weighing 4.6 kg. The operating temperature range is 0°C to 50°C, suitable for many industrial and laboratory environments. Connectivity options include USB 2.0 and RJ45 interfaces, allowing easy data transfer and integration into existing measurement setups.

Applications for the RS PRO RSSA3021X include broadcast monitoring, transmitter repair, electromagnet compatibility (EMC) and interference mitigation compliance testing, research and development, educational purposes, electronics production, and maintenance of radio frequency (RF) systems.

The product is CE certified and manufactured in China, reflecting compliance with international quality and safety standards.

With its feature-rich design, the RS PRO RSSA3021X is an excellent choice for professionals requiring dependable spectrum analysis equipment for a diverse range of testing and measurement tasks.

Equipped with all-digital IF technology for high measurement accuracy and frequency resolution. Features a 10.1-inch WVGA TFT LCD display with 1024x600 resolution. Offers a wide resolution bandwidth range of 10 Hz to 1 MHz with 1-3-10 sequence.

Includes single sweep and continuous sweep modes for versatile measurements. Operates within a temperature range of 0°C to 50°C for stable performance. RF input via BNC connector facilitates compatibility with standard cables.

Lightweight desktop form factor with dimensions 393mm x 207mm x 116.5mm and weight of 4.6 kg. Provides an amplitude accuracy of less than 0.7 dB ensuring reliable results. USB 2.0 and RJ45 interfaces enable convenient connectivity options.

Suitable for broadcast monitoring, transmitter repair, EMC/EMI pre-compliance, R&D, education, production, and RF system maintenance. Explore more products in our Spectrum Analyser category to find complementary testing and measurement solutions suitable for a variety of industrial and laboratory applications.
