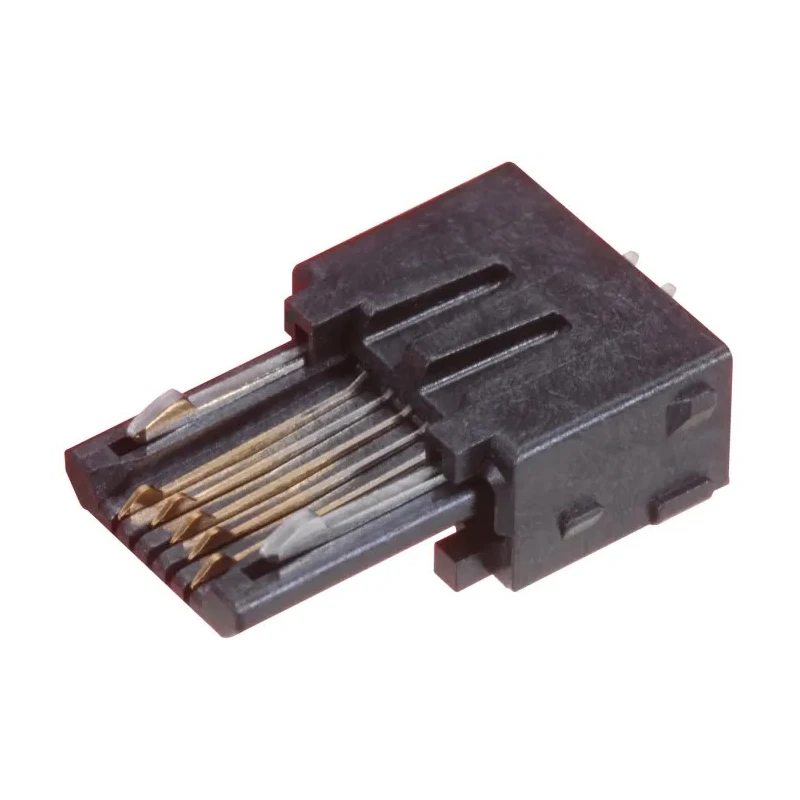

Hirose Straight Through Hole Male 1 Port USB Type B Connector 2.0 ZX20-B-5S-UNIT(30)

Free Delivery in India | Lowest Global Shipping Charges

Hirose Straight Through Hole Male 1 Port USB Type B Connector 2.0 ZX20-B-5S-UNIT(30)

Name: Hirose Straight Through Hole Male 1 Port USB Type B Connector 2.0 ZX20-B-5S-UNIT(30)
Brand: Hirose
SKU: 145125



Category USB Connector Brand Hirose Condition New

Specifications

Country of Origin	India
Voltage	30V
Brand	Hirose
Orientation	Straight
Current	1A
Model	ZX20-B-5S-UNIT(30)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	ZX
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
USB Type	USB Type B
Connector Gender	Male
USB Specification	2.0

Key Features

This USB Type B connector supports USB 2.0 specifications with data rates up to 480 Mbps.
The connector features a through hole mount type for PCB integration.
Its contact is made of copper alloy ensuring good conductivity.
Designed for a current rating of 1A and operating voltage of 30V.
It provides a straight orientation with solder termination type.
Operates reliably in temperatures ranging from -30°C to 85°C.
Constructed to sustain up to 10,000 mating cycles with a smooth mating action.
Active latch mechanism ensures a secure and durable connection.

Product Description

Hirose ZX20-B-5S-UNIT(30) is a straight, through hole male USB Type B connector compliant with USB 2.0 standards, designed for high reliability and compactness in electronic assemblies.

With a small form factor, this USB connector supports high-speed data transfer up to 480 Mbps, making it suitable for modern digital devices requiring fast and stable connections. The copper alloy contacts provide excellent electrical conductivity, while the active latch mechanism delivers secure mating with a tactile click to ensure connection integrity.

This connector is engineered for durability, offering 10,000 mating cycles and a low withdrawal force of 8 N to minimize wear over its lifetime.

It operates effectively within a broad temperature range of -30°C to 85°C and supports a current rating of 1A at 30V operating voltage, suitable for a variety of power and signal applications.

The through hole mount design allows for robust PCB integration and solder termination ensures stable electrical performance. This USB Type B connector supports USB 2.0 specifications with data rates up to 480 Mbps. The connector features a through hole mount type for PCB integration.

Its contact is made of copper alloy ensuring good conductivity. Designed for a current rating of 1A and operating voltage of 30V. It provides a straight orientation with solder termination type. Operates reliably in temperatures ranging from -30°C to 85°C.

Constructed to sustain up to 10,000 mating cycles with a smooth mating action. Active latch mechanism ensures a secure and durable connection. Ideal for electronic devices such as phones, cameras, PDAs, and embedded systems.

This connector is widely used in industrial, consumer electronics, telecommunication, and computing applications where a compact, durable USB 2.0 interface is required. Explore more Hirose connectors and related electronic components in the USB Connectors category at EnvMart for your next project or production needs.
