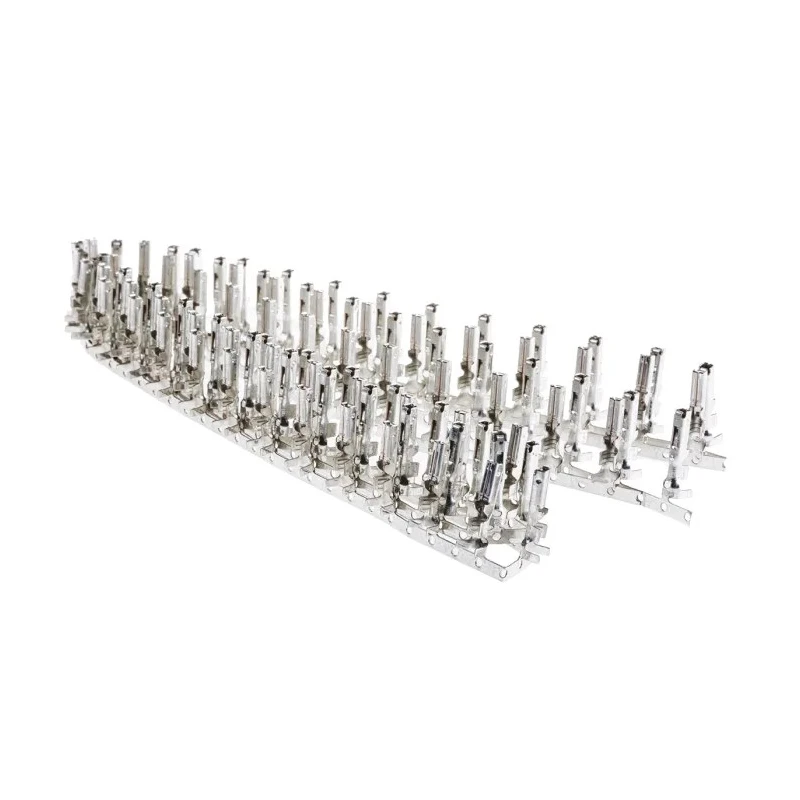

TE Connectivity MINI-MIC Series Female Crimp Terminal, 17 AWG Min Crimp, 15 AWG Max 282110-1

TE Connectivity 282110-1 MINI-MIC Series Female Crimp Terminal delivers reliable electrical connectivity for automotive and industrial applications. It is designed specifically for wire sizes between 17 AWG minimum and 15 AWG maximum, supporting currents up to 14A. The terminal features phosphor bronze contacts with tin plating to ensure excellent conductivity and corrosion resistance.

Measuring 16.5mm in length, this crimp terminal is compact yet robust, suited for use with the AMP SUPERSEAL 1.5 connector housing. It includes a crimp termination type and can operate effectively within a temperature range of -40°C to 125°C.

The MINI-MIC Series employs a 2-step positive lock contact insertion method to provide secure, complete locking of contacts and maintains an IP67 waterproof rating when used with appropriate silicone rubber wire seals. This makes it perfect for outdoor and harsh environment sensor devices, including oil pressure senders and water temperature monitoring.

The range also supports appropriate tooling such as extraction tools that enable removal of contacts for maintenance or replacement. This product advances safety and reliability in electrical connection applications by meeting stringent automotive and industrial standards.

Constructed with durable phosphor bronze contact material. Tin plating enhances corrosion resistance. Compact 16.5mm length for efficient space utilization. Operable from -40°C to 125°C for versatile environmental tolerance.

Maintains IP67 sealing with suitable wire seals. Secure 2-step positive lock mechanism prevents accidental disconnection. Designed for AMP SUPERSEAL 1.5 connector housing compatibility. Ideal for automotive and industrial sensor connections.

Supports tooling for easy assembly and contact extraction. Explore more in our Electronics & Electricals category for connectors and Crimp Contacts to find complementary products.
