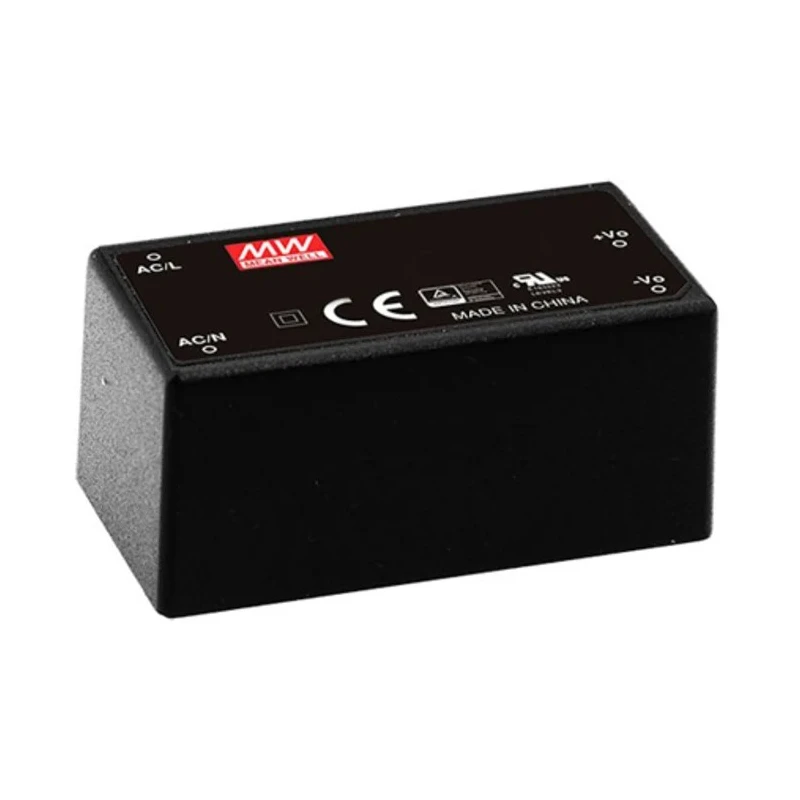

MEAN WELL 15W Single Output PCB Mount Switching Power Supply 24V DC 630mA IRM-15-24

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL 15W Single Output PCB Mount Switching Power Supply 24V DC 630mA IRM-15-24

Name: MEAN WELL 15W Single Output PCB Mount Switching Power Supply 24V DC 630mA IRM-15-24
Brand: MEAN WELL
SKU: 144864



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	15W
Efficiency	83%
Length	52.4mm
Model	IRM-15-24
Depth	24mm
Gross Weight	59g
Width	27.2mm
Mount Type	PCB
Series	IRM
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Maximum Output Voltage	24V dc
SMPS Output Current	630mA
Minimum Input Voltage	85V ac
Heavy industry level (surge L-N	1KV)

Key Features

Provides universal input voltage from 85 VAC to 264 VAC and 120 VDC to 370 VDC.
Compact size with dimensions 52.4 mm length, 27.2 mm width, and 24 mm depth.
High efficiency of up to 83% with low no-load power consumption below 0.1 W.
Includes overvoltage, overload, and short circuit protection for reliability.
Designed for operation from -30°C to +70°C, suitable for industrial environments.
Built-in EMI filtering and excellent EMC performance prevent interference.
Class II design cooled by free air convection requiring no fan.
Suitable for hand held electronic devices, factory automation, mechanical and industrial electrical equipment.

Product Description

MEAN WELL IRM-15-24 switching power supply is a 15.12 W, single output encapsulated AC to DC module delivering a regulated 24 V DC voltage at 630 mA output current. It is designed for PCB mounting with a compact form factor measuring 52.4 mm in length, 27.2 mm in width, and 24 mm in depth, weighing 59 grams.

This power supply accepts a wide input voltage range from 85 VAC to 264 VAC and from 120 VDC to 370 VDC, allowing for versatile deployment in various electrical systems. It operates reliably in temperatures ranging from -30°C to +70°C, ensuring performance under demanding industrial and commercial conditions.

The IRM-15-24 offers high efficiency reaching up to 83% and features ultra-low no-load power consumption below 0.1 W, contributing to energy savings. It incorporates protective functions including overvoltage, overload, and short circuit protections to enhance safety and reliability during operation.

Equipped with built-in EMI filtering and superior EMC characteristics, this unit effectively minimizes electrical noise and complies with international safety standards such as UL 62368-1, IEC 62368-1, and TUV certifications. Its class II insulation design enables cooling through free air convection, eliminating the need for fans and reducing maintenance.

Applications include hand held electronic instruments, factory automation devices, mechanical equipment, and industrial electrical systems. The unit's rugged construction also provides resistance to dust and moisture while withstanding anti-vibration demands up to 5G.

Universal input voltage: 85 VAC to 264 VAC and 120 VDC to 370 VDC. Output: 24 V DC at 630 mA with 15.12 W power rating. Compact PCB mount design, weight 59 grams. Operating temperature range: -30°C to +70°C. Efficiency up to 83% and low standby power.

Complies with UL, IEC, TUV, and EAC standards. Overvoltage, overload, and short circuit protection. Class II insulation with free air convection cooling. Ideal for industrial, factory automation, and hand held devices. Explore the extensive range of Switching Power Supplies at EnvMart for reliable and efficient power solutions.
