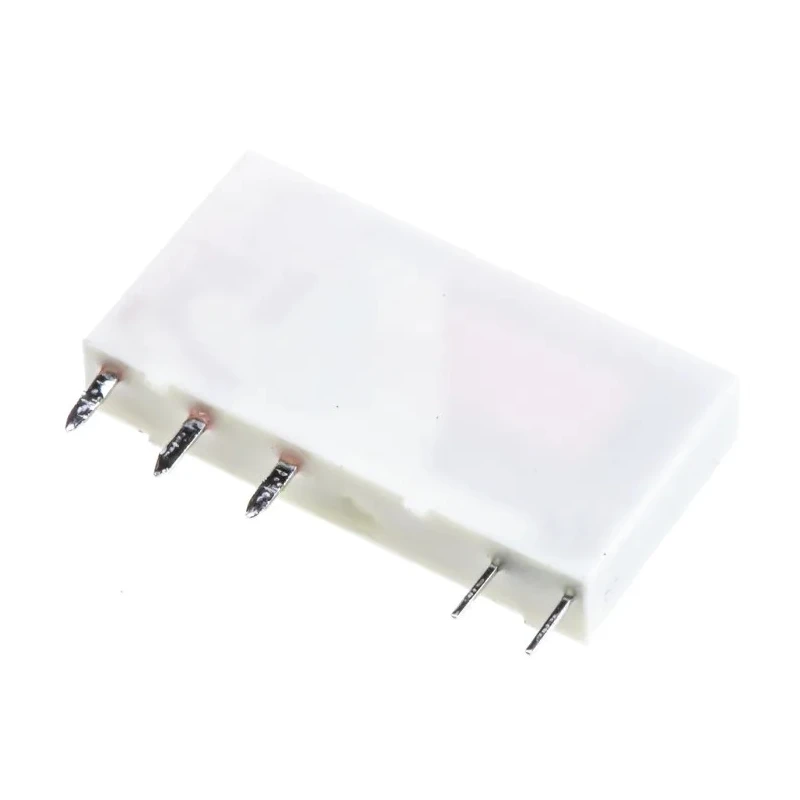

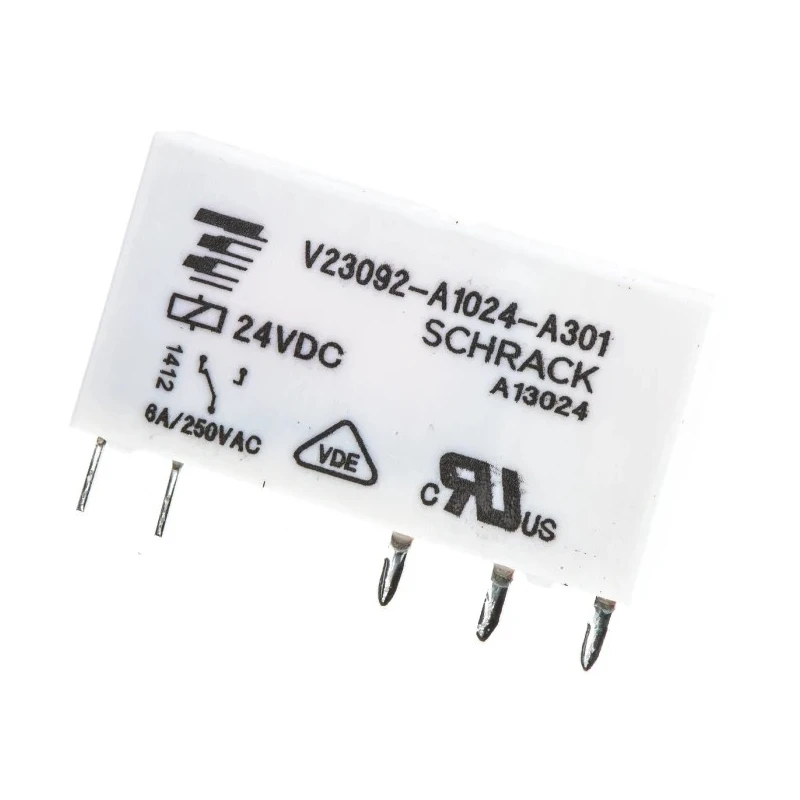

TE Connectivity PCB Power Relay 24V DC Coil 6A Switching Current SPDT V23092A1024A301
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 28mm |
| Model | V23092A1024A301 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SNR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 3.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 210mW |
| Isolation Coil To Contact | 4000Vac |
| High Coil sensitivity | 170mW |
Key Features
- Designed for PCB mounting with solder terminals for secure connections.
- Compact 5mm thickness suitable for high density PCB layouts.
- High coil sensitivity at 170mW provides efficient operation.
- Operates within a temperature range of -40°C to +85°C.
- Silver alloy contact material ensures durable electrical conductivity.
- Offers switching voltage up to 250Vac and isolation coil to contact voltage of 4000Vac.

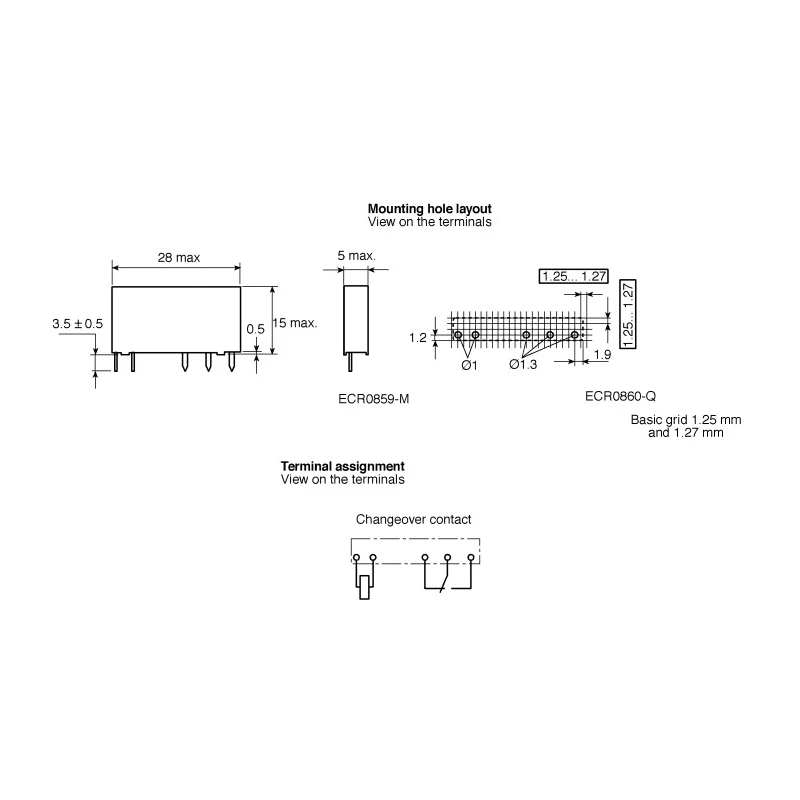

- Compact dimensions of 28mm length, 15mm height, and 5mm width.
- Satisfies RoHS compliance and built to UL, CSA, and VDE standards.
Product Description
TE Connectivity V23092A1024A301 PCB Power Relay is engineered for precise control in electronic and electrical applications requiring a single pole double throw (SPDT) contact arrangement. This relay features a 24V DC coil voltage with a robust 6A switching current capacity.
The relay is part of the SNR series designed for slim, compact form factor suitable for PCB mounting, with only 5mm thickness allowing setup in space-constrained electronic assemblies. The solder terminal type ensures long-lasting, stable electrical connections essential in industrial and commercial uses.
This device exhibits high coil sensitivity at 170mW and operates efficiently with coil power of 210mW, making it suitable for energy-conscious designs. It reliably functions across a wide temperature range from -40°C up to +85°C, making it ideal for industrial and outdoor environments.
The durable silver alloy contacts provide excellent conductivity and mechanical endurance while enabling switching voltages up to 250Vac. Electrical isolation between coil and contacts is assured up to 4000Vac, enhancing safety in demanding control systems.
With compact dimensions of length 28mm, height 15mm, and width 5mm, this power relay fits seamlessly into various power relay modules and boards. Designed for industrial, automation, and electrical control applications requiring compact power relays.
Complies with international RoHS standards and is approved by UL, CSA, and VDE, ensuring quality and regulatory compliance. Ideal for use in PCB mount environments requiring reliable switching of high power loads.
Choose this TE Connectivity Power Relay for durable, efficient, and precise switching performance in electrical, automation, manufacturing, and industrial control systems. Explore more TE Connectivity products at EnvMart for versatile relay solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TE Connectivity V23092A1024A301 power relay has a switching current capacity of 6A.
This relay operates with a coil voltage of 24V DC.
The dimensions of this model are 28mm in length, 15mm in height, and 5mm in width.
It operates within a temperature range of -40°C to +85°C.
This model features a single pole double throw (SPDT) contact configuration.
The isolation voltage between the coil and contacts is rated at 4000Vac.
This power relay is designed for PCB mounting with solder terminals.
The contacts of this relay are made from silver alloy, ensuring good conductivity.
The coil resistance for this model is 3.4kΩ.
It can handle a maximum switching voltage of 250Vac.
This model satisfies RoHS compliance and is built to UL, CSA, and VDE standards.
The coil power required for this relay is 210mW.
