TE Connectivity 20-Way IDC Connector Female for Cable, 2 Row 1658527-8

Free Delivery in India | Lowest Global Shipping Charges

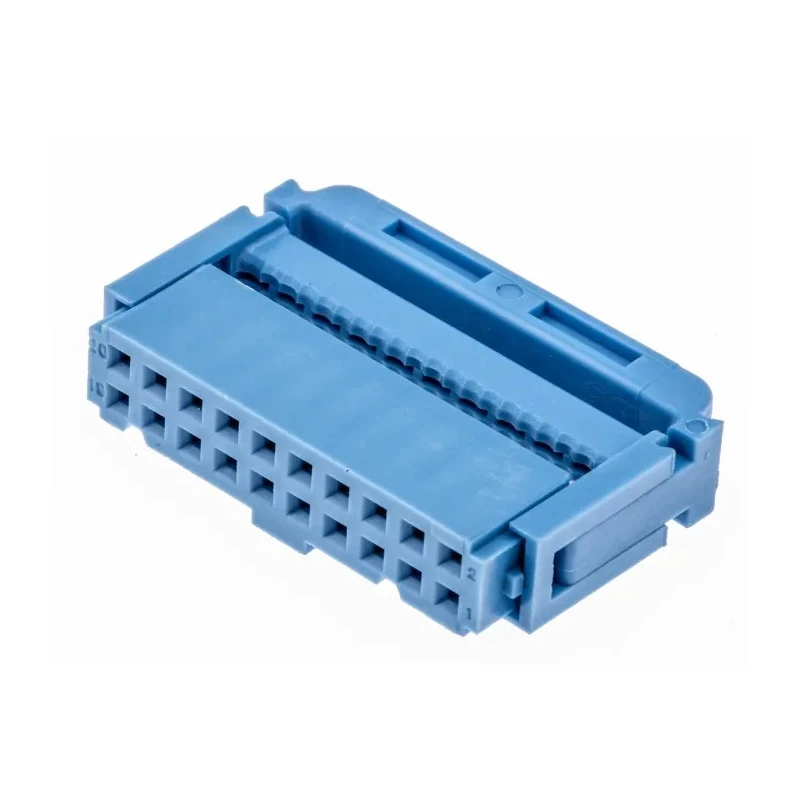

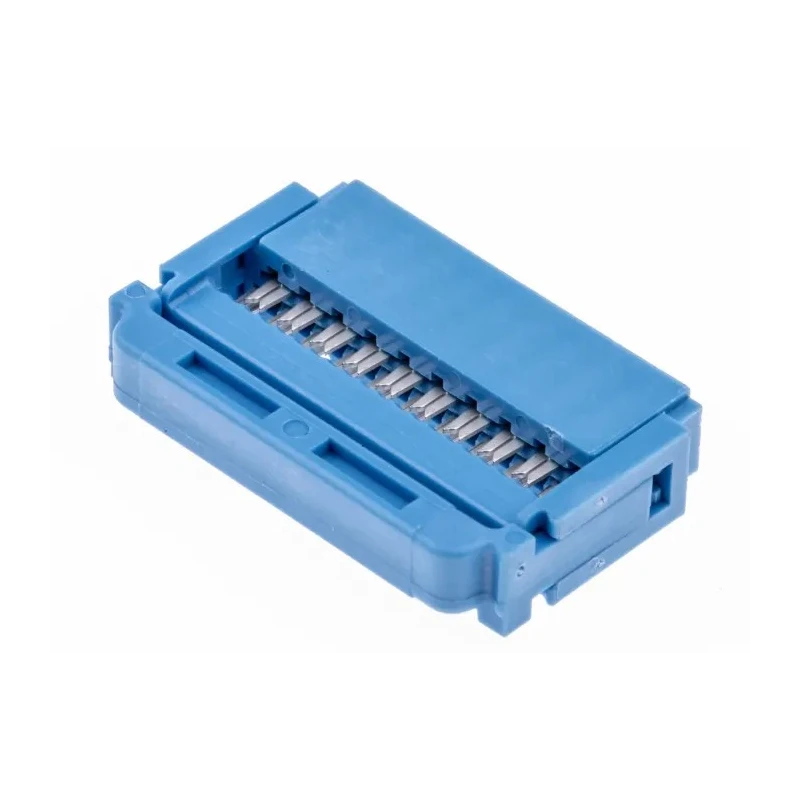

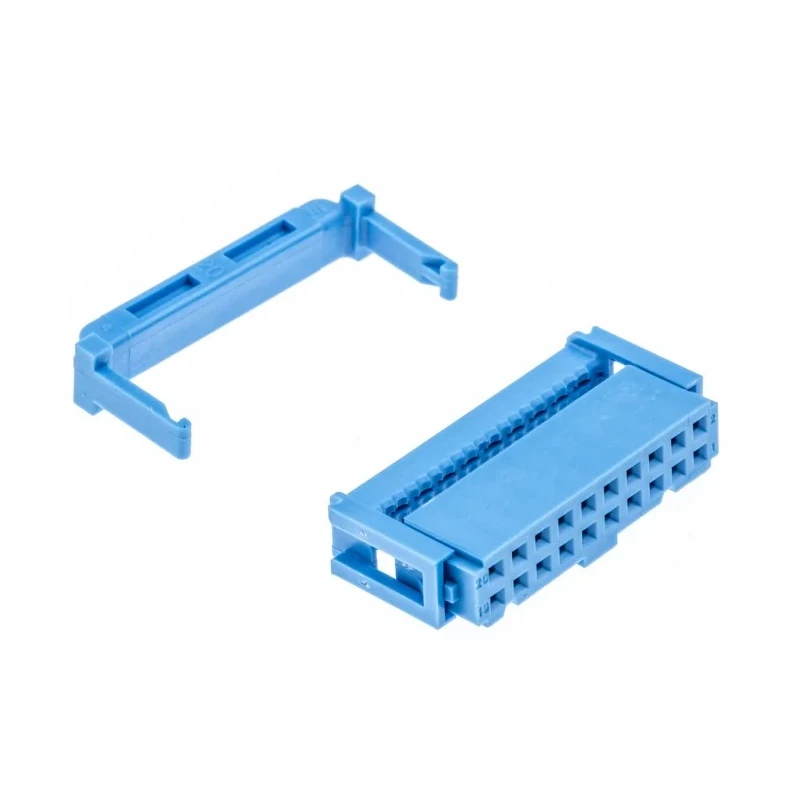

TE Connectivity 20-Way IDC Connector Female for Cable, 2 Row 1658527-8

Name: TE Connectivity 20-Way IDC Connector Female for Cable, 2 Row 1658527-8
Brand: TE Connectivity
SKU: 144489
Price: 4.98 USD
Availability: InStock



Category IDC Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	TE Connectivity
Orientation	Right Angle
Current	1A
Mount Type	Cable
Housing Material	Thermoplastic
Contact Material	Beryllium Copper
Series	AMP-LATCH 622
Termination Type	IDC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	20
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded
TE Connectivity 20-Way IDC Connector Female for Cable, 2 RowBrand	TE Connectivity

Key Features

Features 20 contact positions in a 2-row configuration for efficient cable wiring.
Rated for 1 ampere current and 250 volts operating voltage.
Contact pitch is 2.54mm, suitable for standard ribbon cables.
Contacts are plated with gold over nickel for corrosion resistance.
Housing is made from thermoplastic material rated UL 94V-0 for flame resistance.
Designed for right angle orientation with cable mount and IDC termination.
Operates in temperature range from -55°C to 125°C for versatile environments.
Contact material is beryllium copper providing excellent conductivity and durability.

Product Description

TE Connectivity 1658527-8 20-Way IDC Connector Female for Cable, 2 Row is an industrial-grade IDC connector designed to streamline ribbon cable connections for electronic assemblies. With a current rating of 1A and voltage rating of 250V, this connector supports reliable power and signal transmission in commercial and industrial applications.

This shrouded female connector features 20 contacts arranged in two rows with a 2.54mm pitch, suited for 26-28 AWG PVC insulated flat ribbon cables. The contact plating of gold over nickel ensures optimal conductivity and resistance to corrosion, while the contacts themselves are crafted from beryllium copper for excellent durability and performance.

The housing is constructed from UL 94V-0 rated thermoplastic, offering flame retardance essential for safety in electronic devices. Its right angle orientation and IDC termination type facilitate easy cable mounting and assembly, ideal for PCB interconnection tasks.

Operating efficiently within a temperature range from -55°C to 125°C, this connector caters well to harsh industrial, manufacturing, and telecommunications environments. The product belongs to the AMP-LATCH 622 series, recognized for its quality and compatibility with standard flat ribbon cables.

Features 20 contacts in a 2-row layout for compact, high-density connections. Gold over nickel plating enhances corrosion resistance and electrical reliability. Beryllium copper contacts provide mechanical robustness and conductivity.

Thermoplastic housing rated UL 94V-0 offers flame resistance. Right angle, shrouded female design simplifies cable management and safety. Compatible with 26 - 28 AWG PVC insulated ribbon cables. Suitable for industrial, laboratory, telecommunications, and manufacturing applications.

Wide operating temperature range from -55°C to 125°C supports diverse environments. AMP-LATCH 622 series ensures standard compliance and performance.

This connector is an essential component for cable assemblies in electronics and electrical systems, helping ensure durability and stable signal transmission in various industrial setups. Browse EnvMart for additional TE Connectivity components and IDC Connector variants to meet your specific technical requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This IDC connector has a current rating of 1 ampere and an operating voltage rating of 250 volts.

It features 20 contact positions arranged in a 2-row configuration with a contact pitch of 2.54mm, suitable for standard ribbon cables.

The housing is made from thermoplastic material rated UL 94V-0 for flame resistance, while the contacts are made from beryllium copper and plated with gold over nickel for corrosion resistance.

It operates efficiently within a temperature range from -55°C to 125°C, making it suitable for various environments.

This connector uses IDC (Insulation Displacement Connector) termination, which facilitates easy cable mounting and assembly.

Yes, it is compatible with 26-28 AWG PVC insulated flat ribbon cables.

The connector is designed for right angle orientation, which aids in cable management.

This connector is part of the AMP-LATCH 622 series, known for its quality and compatibility with standard flat ribbon cables.

It has 2 rows and a total of 20 contacts.

The connector features a shrouded design, which provides additional protection for the contacts and helps prevent accidental disconnection.

The country of origin for this connector is India.

It is suitable for use in industrial, laboratory, telecommunications, and manufacturing applications, ensuring stable signal transmission.
