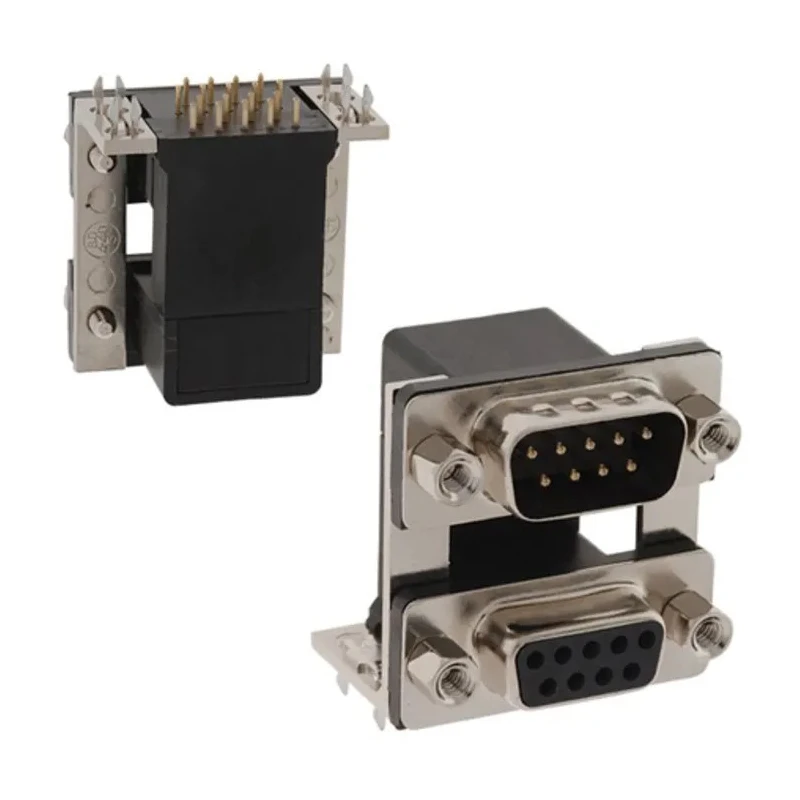

Norcomp 189 Series Right Angle 9 2.769 mm Pitch PCB D-Sub Connector with 4 to 40 Insert 189-009-413R491

Norcomp 189-009-413R491 is a right angle, dual stacked PCB mount D-Sub connector featuring 9 contacts per port with a 2.769 mm pitch, tailored for compact electronic assemblies. This connector belongs to the 189 series, known for providing high density dual port functionality essential for saving PCB space in industrial and electronic applications.

It incorporates gold plated brass contacts to guarantee premium conductivity and corrosion resistance, housed within a nickel plated steel shell that enhances EMI shielding and grounding effectiveness.

The connector is mounted on printed circuit boards via solder termination, with a robust 4 to 40 insert mounting hardware ensuring firm retention during operation. Boardlocks further strengthen PCB stability.

Designed to withstand demanding environments, it supports a voltage rating of 1 kV, operating temperature from -55°C to 105°C, and features a UL94V-0 high temperature thermoplastic insulator rated for processing at 260°C.

This product accommodates a variety of connector gender configurations and is ideally suited for applications in industrial machinery, telecommunications, computing, and automation sectors requiring dual stacked D-Sub interface connections.

Dual ports for PCB space saving. High performance stamped, gold plated contacts. Nickel plated steel shell for improved shielding. Ground indents for enhanced grounding and retention. High temperature UL94V-0 thermoplastic insulator withstands processes up to 260°C.

Boardlocks provide secure PCB retention. Choice of mounting hardware with 4 to 40 inserts. Operating voltage of 1 kV and current rating of 5 A. Temperature range from -55°C to 105°C. Explore additional Norcomp D-Sub Connectors in EnvMart's extensive collection to find compatible models and accessories suitable for your precise requirements.
