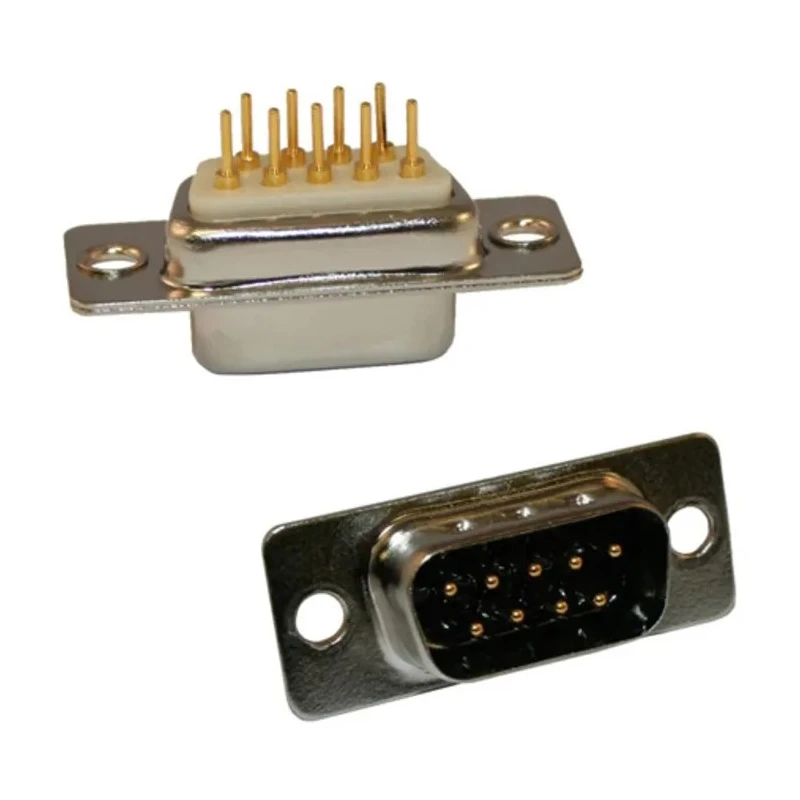

Norcomp 9 Way Straight 2.769 mm Pitch Through Hole D-Sub Connector Male 772-E09-113R001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Norcomp |
| Orientation | Straight |
| Current | 5A |
| Model | 772-E09-113R001 |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | 772 |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -50°C |
| Pitch | 2.769mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
Key Features
- This 9-way connector features a straight orientation for through-hole mounting.
- The contact pitch is precisely 2.769 mm ensuring compatibility with standard devices.
- The housing is made of nickel-plated steel, providing excellent shielding and grounding.
- Gold-plated brass contacts ensure high conductivity and corrosion resistance.
- The connector supports a current rating of 5A and voltage rating up to 500V.
- It is rated for operating temperatures from -50°C to 100°C for versatile environmental tolerance.
- Termination is via solder type, suitable for robust PCB connections.
- This male connector has reliable screw-machined contacts for durability.
Product Description
Norcomp 772-E09-113R001 9 Way Straight 2.769 mm Pitch Through Hole D-Sub Connector Male is a high-performance connector designed for industrial, medical, and outdoor electronic applications. It features a straight orientation with 9 contacts spaced at 2.769 mm pitch, allowing secure and accurate connection to mating components.
The connector housing is constructed from nickel-plated steel, providing excellent electromagnetic shielding and mechanical strength. The contacts are gold-plated brass for superior conductivity and resistance to corrosion, ensuring reliable signal transmission even in demanding environments.
Designed for through-hole mounting on printed circuit boards, this connector supports solder termination and is rated for currents up to 5A and voltages up to 500V. It operates reliably across a temperature range from -50°C to 100°C, making it suitable for various industrial and outdoor installations.
The series 772 SEAL-D connectors are IP67 rated according to IEC-529 standards, offering robust sealing against dust and water ingress. This makes them ideal for applications such as hand-held scanners, remote sensors, industrial equipment, medical devices, and outdoor instrumentation. The sealing technology maintains the standard D-sub form factor, enabling easy upgrading without redesigning enclosures.
This connector ensures reliable screw-machined contacts for long-lasting performance. Nickel-plated steel shell with ground indents enhances electromagnetic compatibility and grounding. The connector's gold plating on contacts ensures low contact resistance and durability.
It provides excellent mechanical retention under vibration and environmental stress. The product is compliant with industry standards, assuring quality and safety.
This Norcomp D-Sub Connector is a professional choice for engineers and technicians working in electronics, power, manufacturing, and related sectors. It combines robust construction with precision engineering to meet high standards of reliability and environmental protection.
Explore more connectors and electronic components in the Power Connectors category at EnvMart to find compatible parts and accessories for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 5A and a voltage rating of up to 500V.
The contact pitch is precisely 2.769 mm, ensuring compatibility with standard devices.
The housing is made of nickel-plated steel, while the contacts are gold-plated brass, providing excellent conductivity and corrosion resistance.
It operates reliably across a temperature range from -50°C to 100°C, suitable for various environmental conditions.
This connector features solder termination, making it suitable for robust PCB connections.
It has a straight orientation and is designed for through-hole mounting.
This model has 9 contacts, allowing for multiple connections in a compact form factor.
Yes, it is rated IP67 according to IEC-529 standards, offering robust sealing against dust and water ingress.
It is designed for industrial, medical, and outdoor electronic applications, including hand-held scanners and remote sensors.
The connector features reliable screw-machined contacts that enhance durability and performance under stress.
The country of origin for this connector is India.
This connector is part of the 772 series, known for its robust construction and precision engineering.
