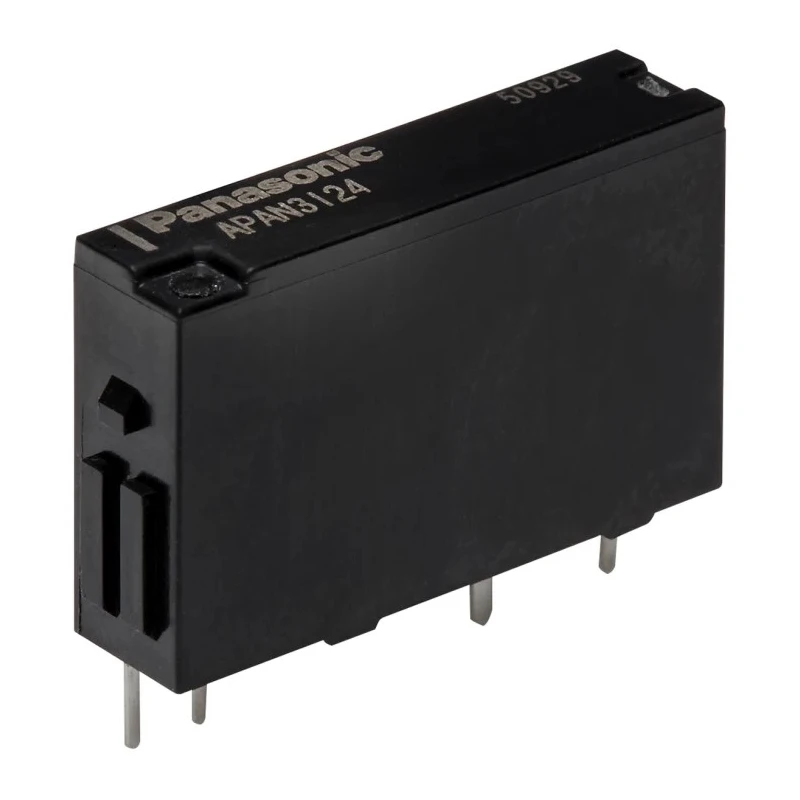

Panasonic PCB Power Relay 24V DC Coil, 5A Switching Current, SPST APAN3124

Panasonic APAN3124 PCB Power Relay is a highly reliable industrial relay designed with a 24V DC coil and a 5A switching current in a Single Pole Single Throw (SPST) contact configuration. Its compact PCB mounting form factor and gold plated contacts make it suitable for use in industrial, office, and measurement equipment, test apparatus, and programmable controllers where precise and low-power switching is critical.

The relay features a coil resistance of 5.2kΩ and operates at a nominal coil power of 110mW, ensuring low power consumption during operation. It can handle switching voltages up to 110V AC or DC with a switching power rating of 150W. The device is designed to operate reliably across a temperature range from -40°C to 90°C, making it suitable for various environmental conditions.

Physically, the relay measures 20mm in length, 12.5mm in height, and 5mm in width, providing a compact footprint for PCB layouts. The gold plated contacts provide excellent conductivity and corrosion resistance, while the contact resistance remains low at 30mΩ, ensuring minimal voltage drop across contacts during switching.

This Panasonic power relay complies with industry standards including IEC61010 reinforced insulation and holds cULus and RoHS certifications, affirming its quality and environmental compliance. It is ideal for use in industrial automation, HVAC systems, laboratory instrumentations, and manufacturing control applications where durable and efficient relay performance is required.

Package includes one Panasonic PCB Power Relay APAN3124 with 24V DC coil voltage and 5A switching current capabilities. Explore our Electronics & Electricals catalog for more Power Relays and automation components to suit your industrial needs.

This relay features a coil voltage of 24V DC for low power consumption. The contact configuration is SPST with gold plated contacts ensuring durability. Switching current is rated at 5A with a maximum switching power of 150W.

It is designed for PCB mounting with PCB pin terminals for easy installation. The device supports a wide operating temperature range from -40°C to 90°C. Coil resistance is 5.2kΩ and coil power consumption is nominal 110mW.

Compact dimensions of 20mm length, 12.5mm height, and 5mm width optimize PCB space. Contacts exhibit low resistance of 30mΩ for efficient switching. This relay complies with IEC61010 reinforced insulation standards and has UL, cULus, and RoHS approvals.

Ideal for industrial equipment, office devices, measuring instruments, and programmable controllers.
