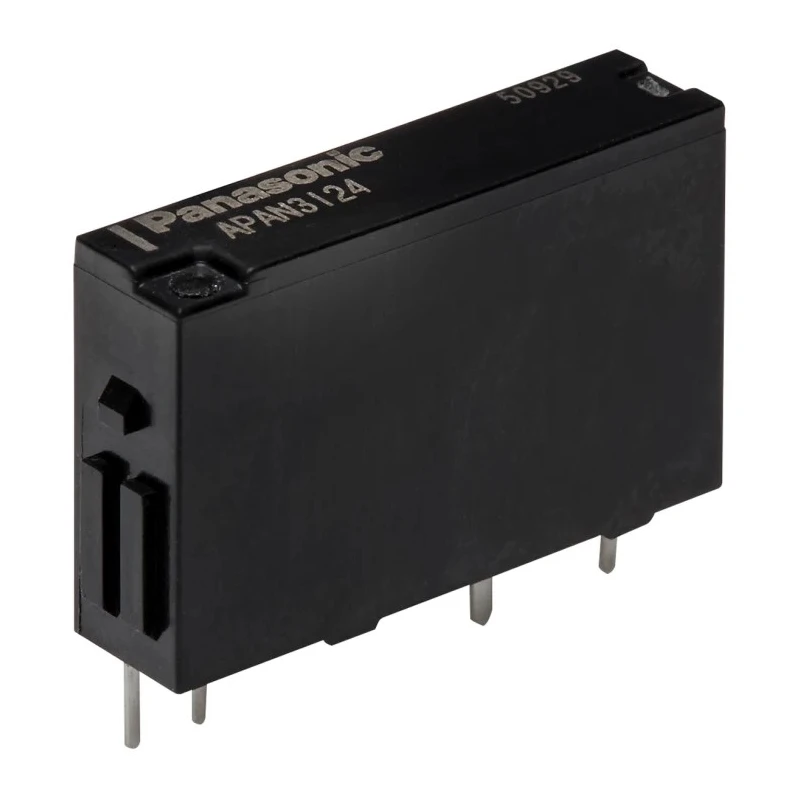

Panasonic PCB Power Relay 5V dc Coil 5A Switching Current SPST APAN3105

Panasonic APAN3105 PCB Power Relay features a 5V dc coil and supports a switching current of 5A in a SPST contact configuration. This power relay is designed for robust industrial and electronic applications including industrial equipment, office devices, measuring and test equipment, programmable controllers, and temperature controllers.

It provides high density mounting capability on PCBs with a low operating coil power of 110 mW, contributing to energy-efficient operation. The relay supports switching power up to 150 watts and can switch voltages up to 110 volts AC and DC, accommodating a broad spectrum of use cases.

The relay contacts are gold plated, significantly enhancing conductivity and ensuring low contact resistance measured at 30 milliohms, which reduces power loss and heat generation. It functions reliably within the temperature range of -40°C to +90°C, making it suitable for demanding industrial environments.

The physical dimensions are compact with a length of 20 mm, height of 12.5 mm, and width of 5 mm, allowing installation in tight spaces on printed circuit boards. The terminal and mount type is PCB pin, ensuring easy soldering and mechanical stability.

This relay complies with RoHS and cULus certifications, supporting safe and eco-friendly operation standards. It is manufactured in China and is part of Panasonic's PA-N relay series known for quality and durability.

Designed for PCB mount with gold plated contacts for reliable conductivity. Operates at coil voltage of 5V dc with coil power of 110 mW for energy efficiency. Supports switching power up to 150W and switching voltages up to 110V AC/DC.

Features low contact resistance of 30mΩ ensuring minimal power loss. Operates safely within temperature range of -40°C to 90°C for diverse environments. Compact dimensions of 20mm length, 12.5mm height, and 5mm width for space-saving design.

Complies with RoHS and cULus standards, ensuring industry safety and quality compliance. Ideal for industrial equipment, office machinery, programmable controllers, and temperature controllers.

This Panasonic APAN3105 Power Relay is essential for electrical switching applications demanding reliability and efficiency. Browse EnvMart's extensive catalog for more industrial electrical components and relays to suit various automation and control needs.
