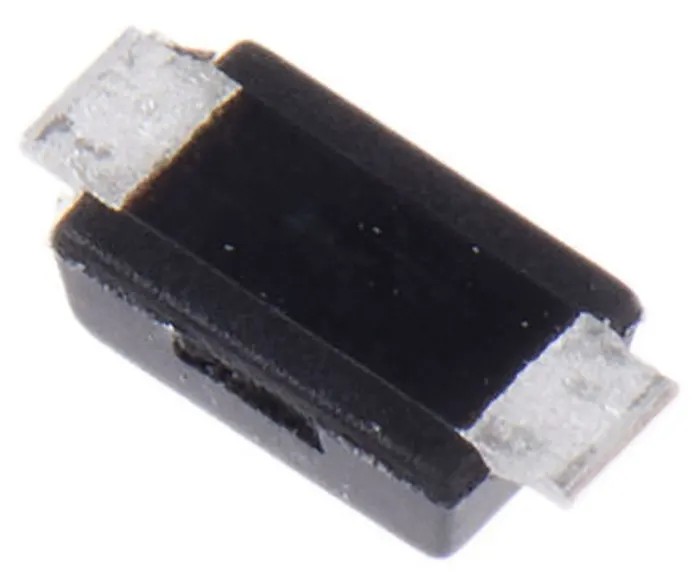

ROHM 5.6 V Single Zener Diode 1 W Surface Mount 2-Pin SOD-123FL KDZVTR5.6B

ROHM KDZVTR5.6B is a single element Zener diode designed for voltage regulation with a nominal Zener voltage of 5.6 volts and 1 watt maximum power dissipation. Its surface mount construction in an SOD-123FL package enables efficient PCB assembly and space saving in electronic circuits.

This diode is suitable for industrial and electronic applications requiring stable voltage reference and protection. Featuring a low reverse leakage current of 20 microamperes and operation tolerance up to 150°C, it offers reliability across temperature ranges.

The device is tested at a current of 40 mA to ensure consistent voltage regulation performance. Its small package dimensions of 3.62 mm length and 0.9 mm height provide compact integration possibilities for semiconductor and discrete component circuits.

This Zener diode is ideal for use in power supplies, voltage clamping circuits, and other electronic circuitry where voltage stabilization is needed. It supports surface mounting assembly, facilitating automated manufacturing processes in electronics production and prototyping.

Nominal Zener voltage rating of 5.6 volts for voltage regulation applications. Maximum power dissipation rating is 1 watt ensuring reliable thermal performance. Constructed with a two-pin SOD-123FL surface mount package for PCB mounting.

Test current specified at 40 mA to characterize Zener voltage precisely. Maximum reverse leakage current limited to 20 microamperes. High-temperature tolerance of up to 150°C allows operation in demanding environments. Compact dimensions measuring approximately 3.62 mm length and 0.9 mm height.

Single diode configuration optimized for voltage regulator functionality.

This product is part of ROHM’s KDZV series of Zener diodes, supporting a variety of industrial electronic and semiconductor applications including protection, regulation, and reference uses in design and manufacturing.
