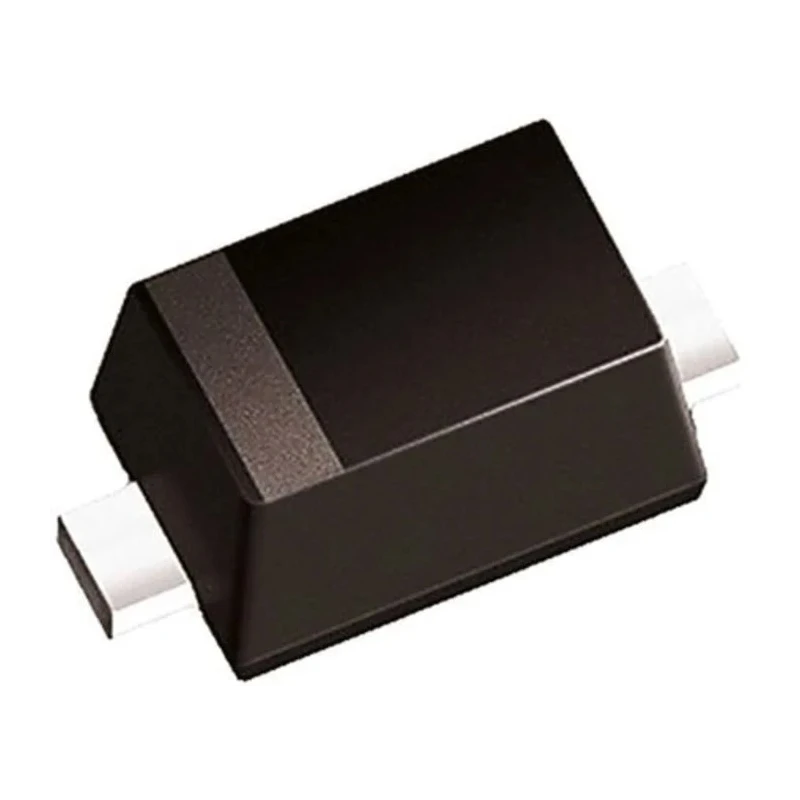

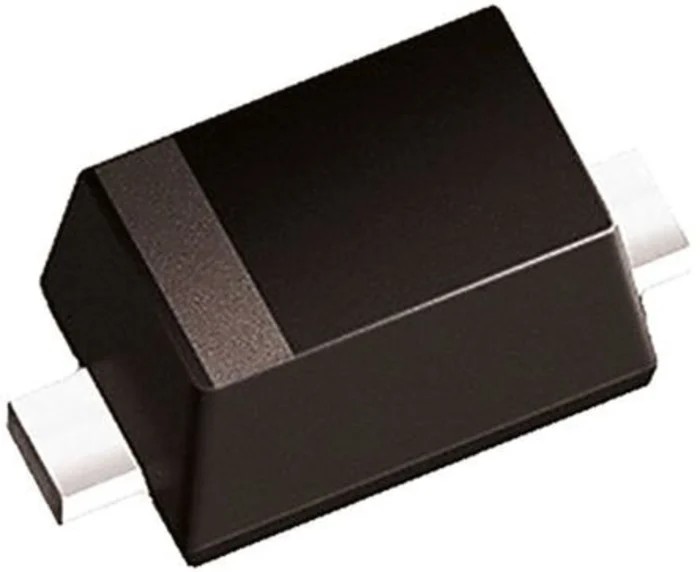

ROHM 4.7 V Zener Diode, Single 150 mW Surface Mount 2-Pin SOD-523 EDZVT2R4.7B

ROHM EDZVT2R4.7B is a highly reliable single Zener diode designed to provide a nominal Zener voltage of 4.7 V with a maximum power dissipation of 150 mW. It is packaged in a compact surface mount SOD-523 2-pin package, making it ideal for space-constrained electronic designs.

This diode features a test current of 5 mA and a maximum Zener impedance of 800 Ω to maintain precise voltage regulation under various operating conditions. The device's low maximum reverse leakage current of 2 μA ensures minimal energy loss and high efficiency in voltage regulation circuits.

Operable up to a maximum temperature of 150°C, the ROHM EDZVT2R4.7B diode suits demanding industrial, electronic component, and semiconductor applications, including power supplies, voltage stabilizers, and protection circuits.

Its small dimensions of 1.7 mm length and 0.7 mm height facilitate integration on high-density PCBs for modern electronic equipment. The single diode element configuration supports discrete semiconductor implementations with dependable performance.

This component is part of the ROHM EDZV series, known for consistent quality and compliance with RoHS standards, although no automotive-specific standards apply.

Suitable for industrial electronics, power connectors, and semiconductor device manufacturing, this diode is recommended for engineers seeking compact, efficient voltage regulation solutions.

Designed for voltage regulation applications. Surface mount package with compact 2-pin SOD-523 form factor. Maximum power dissipation rating of 150 mW. Test current of 5 mA ensures precise voltage control. Low maximum reverse leakage current of 2 μA for high reliability.

Maximum operating temperature of 150°C suitable for industrial use. Maximum Zener impedance of 800 Ω ensures stable voltage regulation. Compact physical dimensions measuring 1.7 mm length and 0.7 mm height. Single element diode configuration optimized for discrete semiconductor circuits.

Ideal for electronic power and connector applications. Explore more semiconductor and electronic components from the ROHM range at EnvMart for industrial and electronic design solutions.
