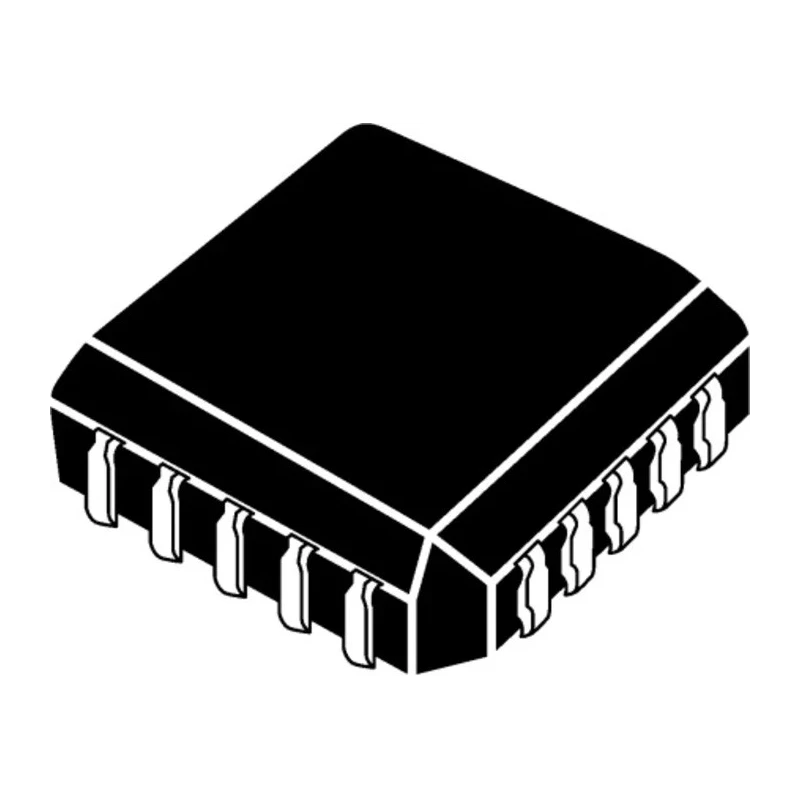

Microchip Simple Programmable Logic Device 150 Gates, 8 Macro Cells, 8 I/O, 62 MHz In System Programmability ATF16V8CZ

Free Delivery in India | Lowest Global Shipping Charges

Microchip Simple Programmable Logic Device 150 Gates, 8 Macro Cells, 8 I/O, 62 MHz In System Programmability ATF16V8CZ

Name: Microchip Simple Programmable Logic Device 150 Gates, 8 Macro Cells, 8 I/O, 62 MHz In System Programmability ATF16V8CZ
Brand: Microchip
SKU: 143464
Price: 3.41 USD
Availability: InStock



Category Programmable Logic ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	4.06mm
Length	9.04mm
Model	ATF16V8CZ
Mount Type	Surface
Series	ATF16V8CZ
Maximum Operating Temperature	85°C

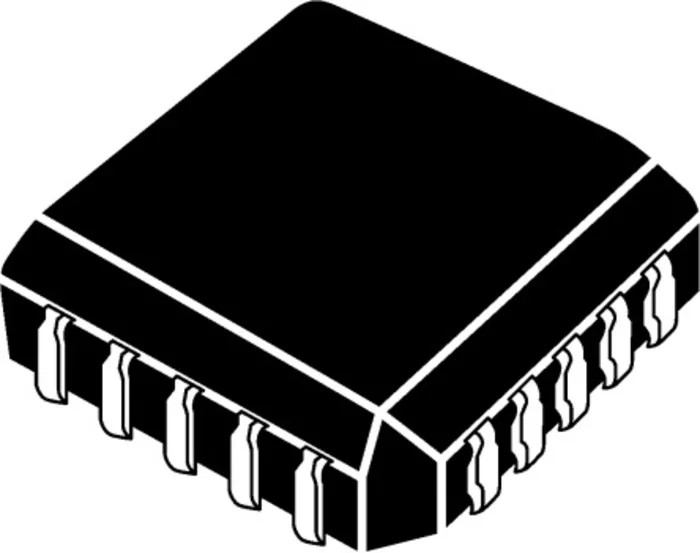

Package Type	PLCC
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	20
Maximum Supply Voltage	5V
Minimum Supply Voltage	4.5V
Maximum Propagation Delay Time	15ns
Number of Gates	150
Number of Macro Cells	8
Number of User I/Os	8
Maximum Internal Frequency	62MHz

Key Features

Provides versatile in-system programmability for flexible applications.
Supports re-programmability to allow design modifications.
Compact PLCC package with 20 pins suitable for surface mount technology.
Operates within a supply voltage range of 4.5 V to 5 V ensuring stable performance.
Operates reliably in temperatures from -40°C to 85°C for harsh environments.
Features fast maximum propagation delay time of 15 ns enhancing signal timing.
RoHS compliant, adhering to environmental and safety standards.

Product Description

Microchip ATF16V8CZ is a high-performance Simple Programmable Logic Device designed for demanding electronic circuit applications, featuring 150 logic gates and 8 macro cells. It supports up to 8 user input/output pins and offers a maximum internal frequency of 62 MHz, allowing fast operational speed.

This device ensures in-system programmability and full re-programmability support, making it ideal for rapid prototyping and iterative development processes in industrial and commercial electronics manufacturing.

Packaged in a 20-pin PLCC surface mount package, it fits compact PCB layouts while providing robust performance. The device operates at voltages between 4.5 V and 5 V, maintaining reliable functionality over an extended temperature range from -40°C to 85°C, suitable for automotive electronics, industrial controls, and consumer electronics.

The ATF16V8CZ delivers a fast propagation delay time of maximum 15 ns, enhancing timing accuracy in complex digital circuits. It complies with RoHS directives, supporting environmentally responsible manufacturing.

Offers 150 logic gates for versatile digital logic implementation. Includes 8 macro cells enabling complex logic functions. Supports flexible usage with 8 user I/O connections. Ensures easy installation with surface mount PLCC 20-pin package.

Operates at supply voltages between 4.5 V and 5 V for stable electronics integration. Works reliably in temperatures ranging -40°C to 85°C for diverse applications. Supports high-speed operations with 62 MHz maximum frequency and 15 ns delay.

Environmentally compliant with RoHS standard. Compact dimensions allow integration into dense PCB layouts. This device is suitable for industrial automation, embedded systems, consumer electronics, and other applications requiring programmable logic components.
