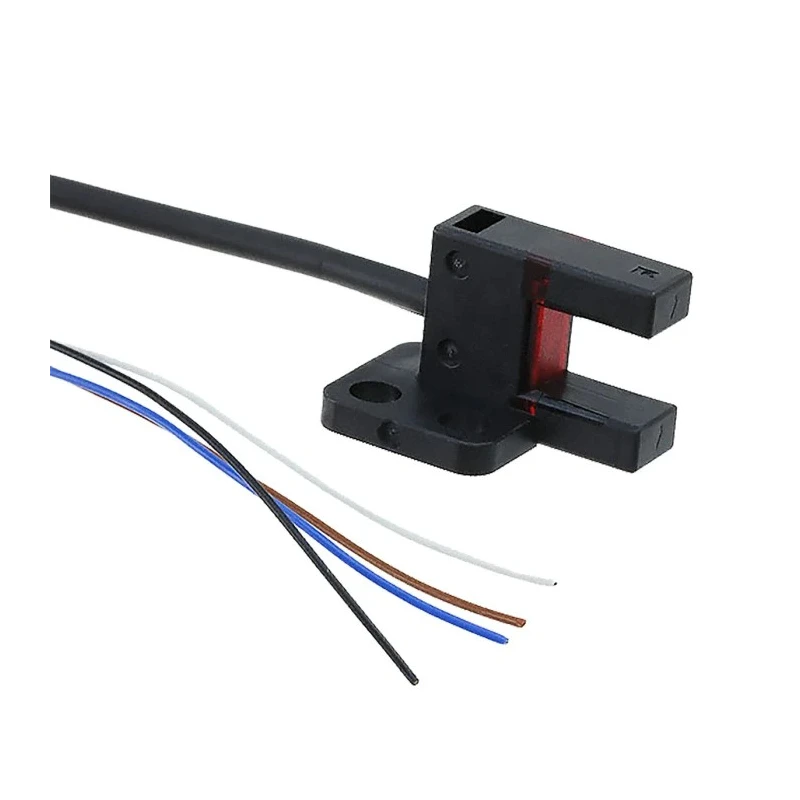

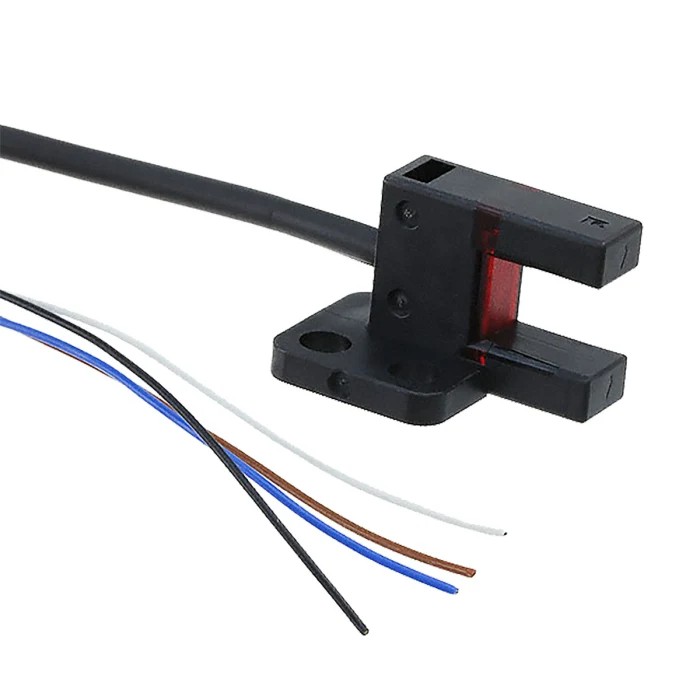

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm Detection Range PNP Output IP64 PM-F45-P

Panasonic PM-F45-P Through Beam Photoelectric Sensor is a compact and ultra-small U-shaped fork style sensor designed for precise detection in industrial automation and control applications. It features an integrated emitter and receiver within a single housing, providing reliable through beam detection with a detection range of 6 mm. The sensor includes a large operating indicator that is visible from multiple angles, allowing easy operational status monitoring.

Manufactured with polycarbonate and polybutylene terephthalate, the robust housing protects the internal electronics from impacts and vibrations, enhancing sensor durability. Its chassis mount type design enables easy installation using M3 screws.

The sensor operates on a maximum DC voltage of 24V and supports a maximum current of 50mA, with PNP type output for compatible interfacing. It incorporates reverse supply and output polarity protections alongside output short circuit protection, increasing operational safety and longevity.

Operating temperature ranges from -25°C to 55°C, with an IP64 rating to guard against dust and water ingress, making it suitable for demanding industrial environments. The infrared light source ensures accurate sensing of opaque materials. Compliance with IEC standards guarantees reliable and standardized performance.

Applications for the PM-F45-P sensor include various industrial, manufacturing, automation, and control environments where compact and precise object detection is critical. This sensor's fast response times ranging between 20 µs and 80 µs allow effective monitoring of high-speed processes.

The sensor utilizes a through beam detection type integrated within a compact fork-shaped housing. Equipped with infrared light source and PNP output for reliable switching. Supports maximum DC voltage of 24V dc and maximum current load of 50mA.

Built with durable polycarbonate and polybutylene terephthalate housing materials for robust industrial use. Features reverse polarity protection and short circuit protection to safeguard sensor electronics. Operating temperature range from -25°C to 55°C suitable for various environmental conditions.

Easy chassis mounting with M3 screws for flexible installation options. Response time with dual values 20 µs and 80 µs ensures quick and precise detection. Certified under IEC standards and manufactured in Japan assuring high quality and reliability.
