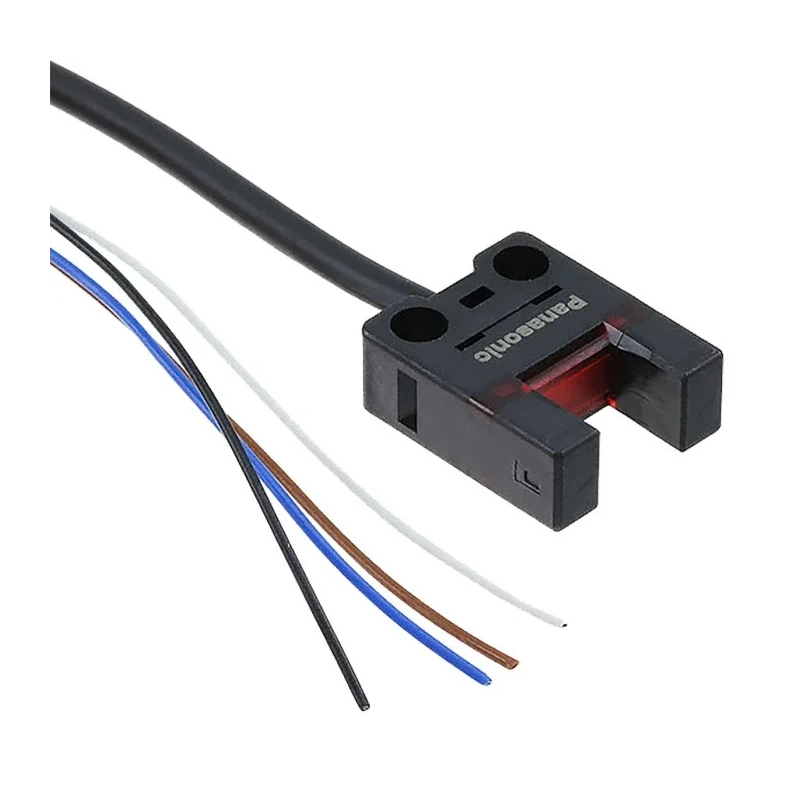

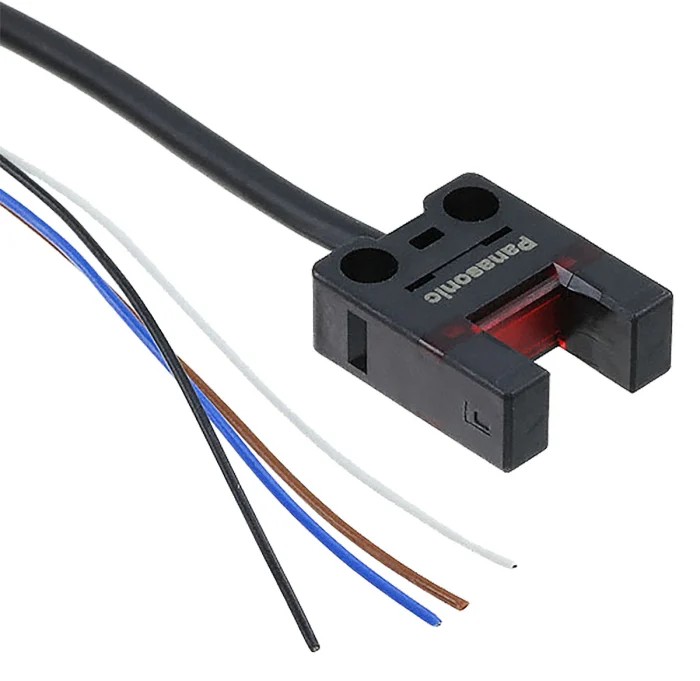

Panasonic Through Beam Photoelectric Sensor, Fork Style, 6 mm Detection Range, NPN Output, IP64, 24V DC PM-U25-R
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Response time | 20, 80μs |
| Light Source | Infrared |
| Detection range | 6 mm |
| Model | PM-U25-R |
| IP Rating | IP64 |
| Mount Type | Chassis Mount |
| Housing Material | Polybutylene Terephthalate, Polycarbonate |
| Output type | NPN |
| Series | PM-25 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50mA |
| DetectIon Type | Through Beam |
| Terminal type | Cable |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | IEC |
| Materials Detected | Opaque |
| Sensor Style | Fork |
Key Features
- Through beam detection provides reliable object sensing.
- Fork sensor design allows easy integration in automation.
- Operates at 24V DC with maximum 50mA current.
- High resistance to environmental factors with IP64 rating.
- Wide operating temperature from -25°C to 55°C for versatile applications.
- Constructed with durable polybutylene terephthalate and polycarbonate housing.
- Response time between 20 and 80 microseconds ensures fast detection.
- Includes protections for reverse polarity and output short circuit.
Product Description
Panasonic PM-U25-R Through Beam Photoelectric Sensor is an ultra-compact fork style sensor designed for precise detection tasks in automation, manufacturing, and control systems. Operating at 24V DC with a maximum current of 50mA, it uses an infrared light source to detect opaque materials within a 6 mm sensing range.
Featuring a robust IP64-rated housing made from polybutylene terephthalate and polycarbonate, this sensor offers resistance to dust and water splashes, suitable for industrial and laboratory environments. The sensor's chassis mount design with M2 / M3 screws provides easy and secure installation options.
The PM-U25-R includes important protective features such as reverse supply polarity protection, reverse output polarity protection, and output short circuit protection, enhancing reliability in harsh operating conditions.
Its ultra-small, U-shaped configuration contains both emitter and receiver within a single housing, minimizing space requirements while enabling clear operation indication visible from multiple angles. The sensor supports NPN output and is compliant with IEC standards.
Its temperature operating range from -25°C to 55°C allows usage in diverse industrial and automation scenarios. The response time of 20 to 80 microseconds supports high-speed detection needs.
Through beam detection for accurate opaque object sensing. Fork style ultra-compact design. Robust polybutylene terephthalate and polycarbonate housing. IP64 protection against dust and water splashes. Reverse polarity and short circuit output protection.
Chassis mountable with standard screws. Wide operating temperature range. Fast response times between 20 and 80 microseconds. Compatible with industrial automation and control gear.
This sensor is manufactured in Japan, ensuring high-quality standards and durability. It fits well in applications such as factory automation, conveyor monitoring, object detection, packaging machines, and robotics.
Explore more Panasonic sensors and automation products in the Electronics & Electricals section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PM-U25-R sensor has a detection range of 6 mm for opaque materials.
This model features a response time between 20 and 80 microseconds, suitable for high-speed detection needs.
It provides an NPN output type, which is commonly used in industrial applications.
The operating temperature range for this unit is from -25°C to 55°C, allowing for versatile applications in various environments.
The housing is constructed from polybutylene terephthalate and polycarbonate, providing resistance to environmental factors.
Yes, it has an IP64 rating, which provides protection against dust and water splashes.
This sensor is designed for chassis mounting and can be secured using standard M2 / M3 screws.
It uses an infrared light source for detection purposes.
It includes reverse supply polarity protection, reverse output polarity protection, and output short circuit protection to enhance reliability.
This sensor is suitable for applications in factory automation, conveyor monitoring, object detection, packaging machines, and robotics.
The maximum current rating for this sensor is 50 mA, ensuring compatibility with various automation systems.
This model is manufactured in Japan, ensuring adherence to high-quality standards.
