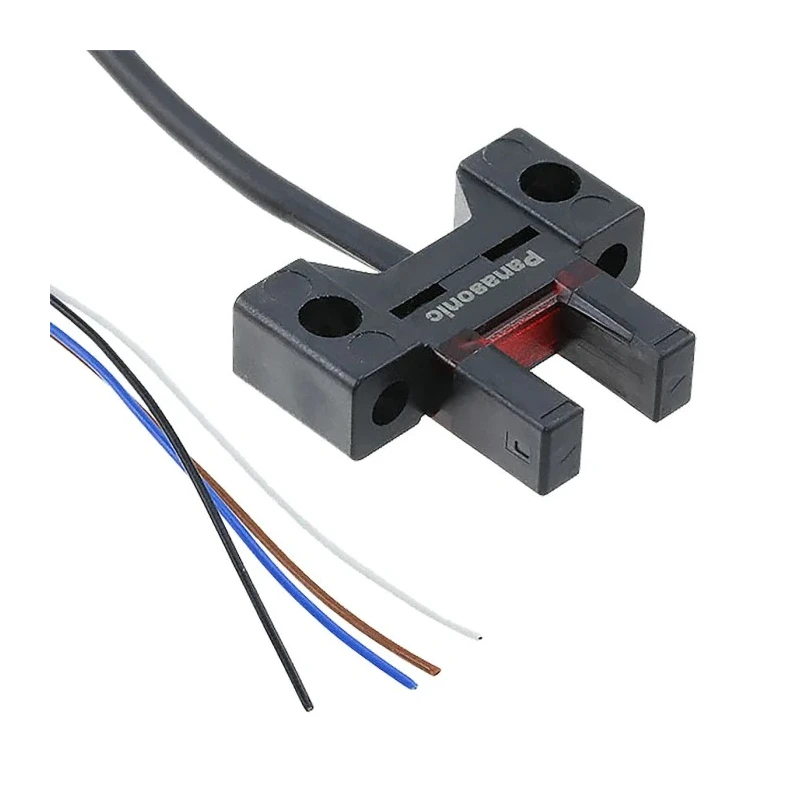

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm Detection Range PNP Output IP64 Rated PM-K45-P-C3

Panasonic PM-K45-P-C3 is an advanced through beam photoelectric sensor with fork style designed for precise detection of opaque materials within a 6 mm range. Its compact U-shaped chassis mount housing integrates emitter and receiver, facilitating easy installation in tight industrial setups. The sensor uses an infrared light source that ensures reliable material detection in automation and control gear applications.

The sensor supports PNP output type and cable terminals, operating at a maximum DC voltage of 24V, with a maximum operating current of 50mA. It features robust IP64 ingress protection, making it suitable for environments with dust and water exposure. The housing materials include polybutylene terephthalate and polycarbonate which provide strength and durability against vibrations and impacts.

Operating temperature spans from -25°C to 55°C, ensuring dependable performance in varied industrial conditions. It includes multiple protections such as reverse supply polarity, reverse output polarity, and output short circuit protection, enhancing sensor longevity and safety in automation systems.

Mounting is simplified with M3 screws, allowing secure attachment in industrial and manufacturing lines. The sensor's fast response times (20 to 80 microseconds) make it ideal for high-speed automated processes requiring precise and rapid sensing capabilities.

Features through beam detection with emitter and receiver in a single U-shaped housing. Compact and ultra-small PM-45 series chassis mount sensor. Infrared light source suitable for opaque material detection. High protection with IP64 rated housing of polybutylene terephthalate and polycarbonate.

Operating temperature range from -25°C to 55°C suitable for various environments. Reverse supply and output polarity protection ensures reliable operation. Output short circuit protection for enhanced safety. Easy mounting using M3 screws for installation convenience.

Response times adjustable between 20 μs and 80 μs. Designed for industrial automation and control gear applications.

Commonly used in industrial automation, manufacturing processes, and control systems, the Panasonic PM-K45-P-C3 sensor delivers accurate and reliable sensing performance. Its durable build and protection features make it well suited for diverse environments requiring consistent detection of opaque objects.
