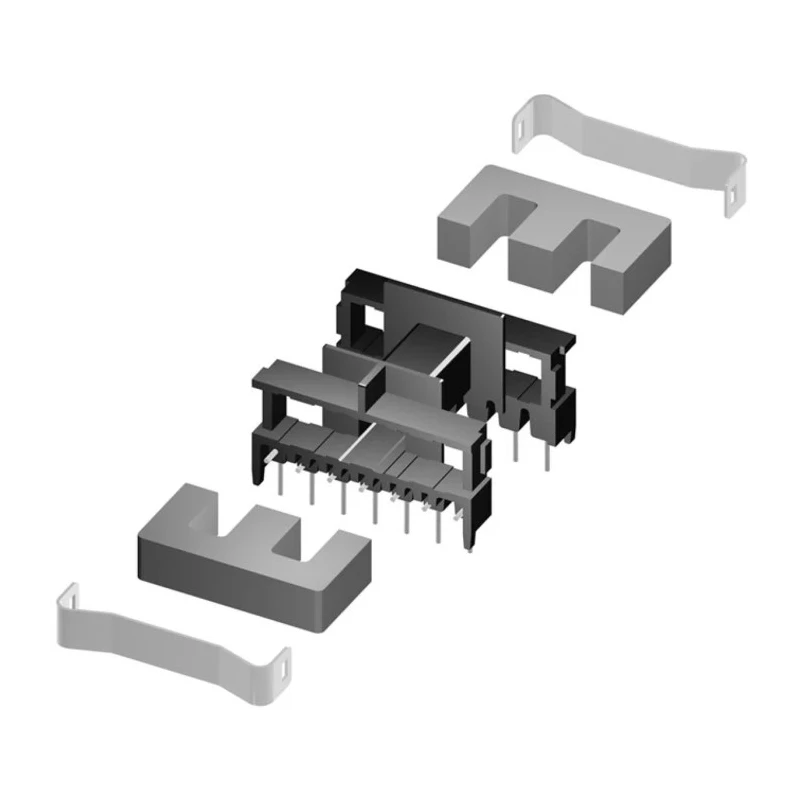

TDK Transformer Ferrite Core E 16/8/5 N87 Material 1000 nH AL Rating For Common-Mode Chokes B66307G0000X187

TDK B66307G0000X187 Transformer Ferrite Core E 16/8/5 is specifically designed for use in common-mode chokes and power transformers where high permeability cores are required. Manufactured from N87 material, this ferrite core offers a high saturation flux density and low power loss, suitable for broadband applications and miniature transformer designs.

The core dimensions are precisely 16mm in length, 8.2mm in depth, and 4.7mm in width, matching the E 16/8/5 core size standard. It features an AL rating of 1000 nH, ensuring effective inductance in the intended magnetic circuits. The maximum operating temperature is 155°C, allowing stable performance under thermal stress.

Compliant with IEC 61246 standards, this ferrite core delivers consistent quality and performance. The core is part of the B66307 series and is well-suited for industrial, electronic components manufacturing, power supply design, and electronic testing applications.

Applications include usage in common-mode noise filters, power transformers for electrical equipment, and broadband transformer coils. The E cores' compact size and magnetically efficient properties make it a reliable choice for transformer manufacturers seeking high-quality ferrite cores.

Core size is E 16/8/5 with precise dimensions for optimal magnetic performance. Constructed from N87 ferrite material providing high saturation flux density and low power loss. Maximum operating temperature rated at 155°C ensuring reliability in demanding environments.

Designed to IEC 61246 standards for quality and consistency. Suitable for common-mode chokes, broadband applications and miniature transformers. Compact core dimensions of 16mm length, 8.2mm depth, and 4.7mm width. Part of the B66307 series known for stable magnetic characteristics and durability.
