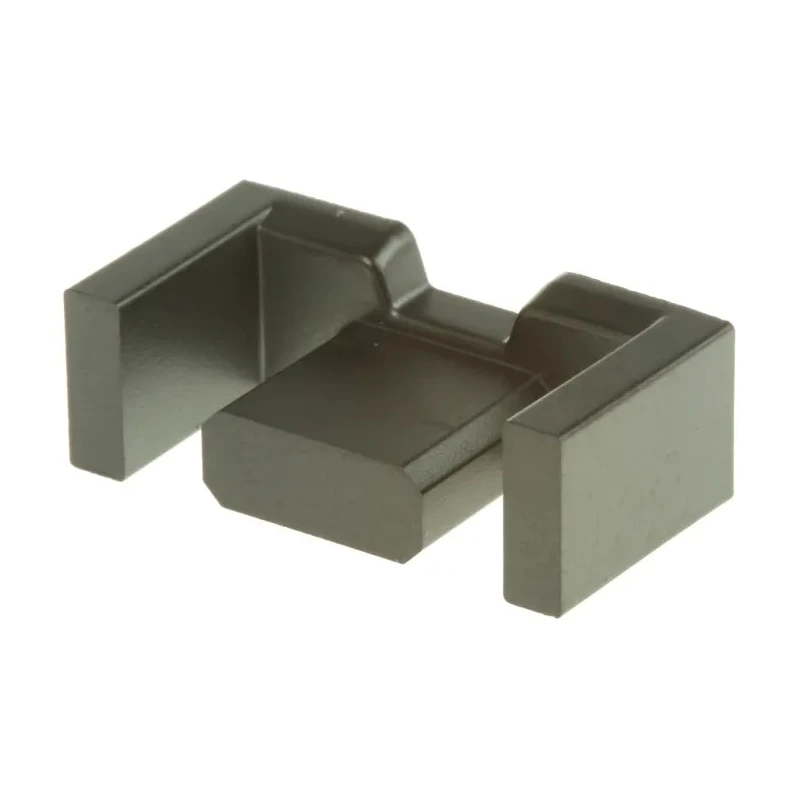

TDK Transformer Ferrite Core N87 Material EFD 20 Core Size 1200 nH AL Rating B66417G0000X187

TDK B66417G0000X187 transformer ferrite core offers a reliable solution for efficient transformer construction with a focus on DC DC converter use. Featuring a core size of EFD 20 and crafted from premium N87 material, this core delivers stable magnetic performance with an AL rating of 1200 nH. Its compact dimensions (20 mm length, 10 mm width, 6.65 mm depth) fit well in space-constrained electronic assemblies.

The core is designed to operate up to a maximum temperature of 180°C, ensuring thermal stability in demanding industrial environments. It belongs to the B66417 series, which aligns with EPCOS ferrite core product lines known for quality and consistency.

This transformer ferrite core provides excellent magnetic efficiency, suitable for various industrial and electronic applications including power supplies, telecommunications, and DC DC converters in laboratory, manufacturing, and commercial electronics sectors.

High-quality N87 ferrite material for superior magnetic properties. EFD 20 core size dimension for compact transformer construction. 1200 nH AL rating ensures consistent inductance performance. Designed specifically for use with DC DC converters.

Maximum operating temperature rating of 180°C for durability. Compact dimensions enable versatile application in electronics. B66417 series core aligns with EPCOS high standards. Explore the wide range of TDK Transformer Cores and ferrite materials available on EnvMart to enhance your power supply and transformer design projects.
