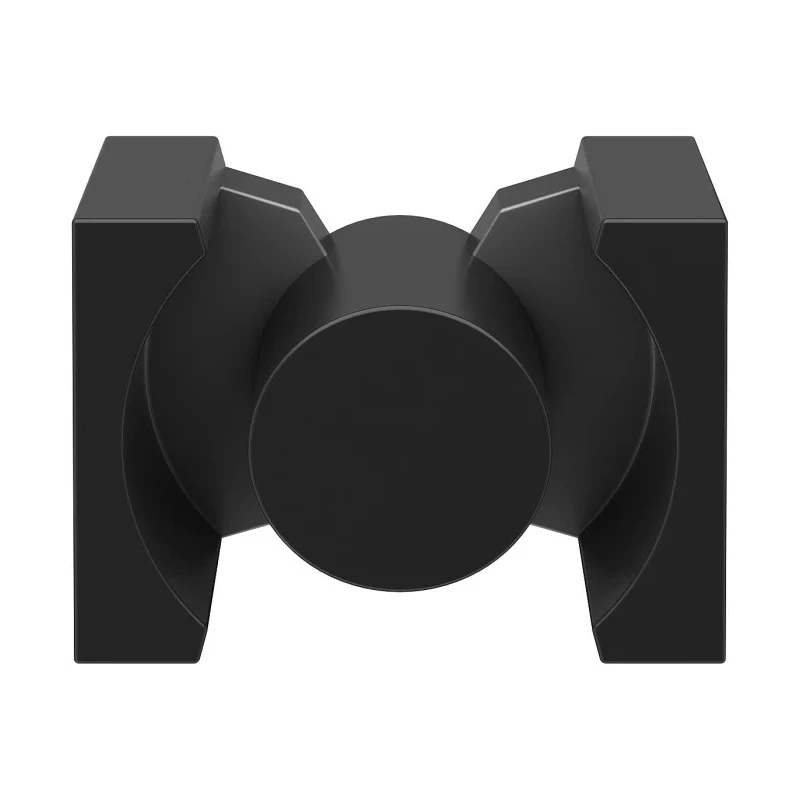

TDK Transformer Ferrite Core PQ 50/50, N87 Material, AL Rating 6500 nH, Czech Republic B65981A0000R087

TDK B65981A0000R087 Transformer Ferrite Core PQ 50/50 is engineered with N87 ferrite material, known for high magnetic permeability and low core loss, ideal for Power Transformer designs. The core features an AL rating of 6500 nH, ensuring stable inductance and efficient energy transfer in power applications.

This transformer core measures 50mm in length, 32mm in width, and 25mm in depth, forming a compact PQ 50/50 size that minimizes winding length for reduced resistance and flux leakage. The PQ shape also provides a wider outer surface area which lowers thermal resistance, allowing superior heat dissipation and increased operating reliability.

Manufactured to strict IEC 62317-13 standards, the core material and dimensional precision ensure compatibility with power transformers that require stable electrical and mechanical characteristics. Its design additionally offers enhanced magnetic shielding to reduce electromagnetic interference within transformers.

Typical industrial applications include electronics manufacturing, power supply units, and transformer assemblies in commercial and industrial power distribution systems. The core supports improved performance in both high-frequency and power transformer environments.

Core size is PQ 50/50 providing an optimized form factor for winding efficiency. Constructed from high-grade N87 ferrite material for excellent magnetic properties. AL rating of 6500 nH directly relates to stable transformer inductance.

Dimensions: 50mm length, 32mm width, 25mm depth for compactness and thermal management. Complies with IEC 62317-13 for quality and performance assurance. Reduces winding length and improves heat dissipation efficiency. Enhances magnetic shielding to protect winding against external interference.

Choose TDK transformer ferrite cores for reliable, high-performance power transformer designs. Explore the Electronics & Electricals category for more transformer solutions at EnvMart.
