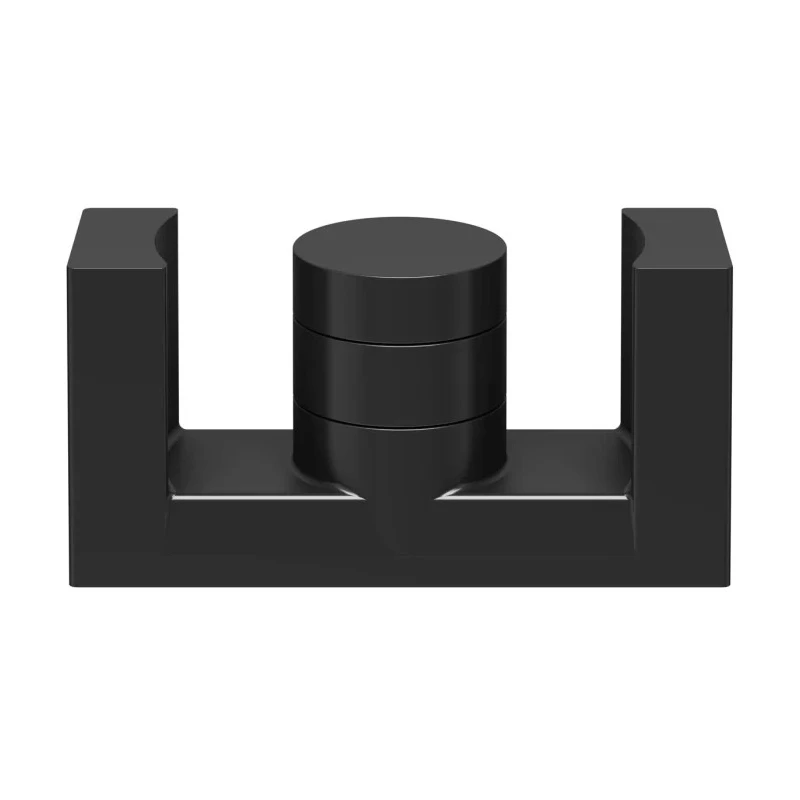

TDK Transformer Ferrite Core ETD 59/31/22 N97 Material 5500 nH, 59.8mm Length, 31.2mm Width, 22.1mm Depth B66397G0000X197

TDK B66397G0000X197 transformer ferrite core ETD 59/31/22 features high-performance N97 ferrite material with an AL rating of 5500 nH. This core is specifically designed for use in switch mode power supply (SMPS) transformers and power transformers, offering a compact volume with optimized weight and performance ratio. It meets the IEC 61185 industry standard ensuring reliability and durability.

The core dimensions measure 59.8 mm in length, 31.2 mm in width, and 22.1 mm in depth, which ensures precise fitting for transformer assemblies. Its maximum operating temperature is 180°C, making it suitable for demanding thermal environments in industrial and electronic power supply applications.

These ETD 59/31/22 cores are available in both gapped and ungapped types, allowing flexibility depending on the design requirements. The N97 ferrite material used provides excellent magnetic properties and low core losses, critical in power transformer efficiency enhancement.

The B66397 series core combines advanced material engineering and precise dimensional conformity, making it suitable for various industrial and commercial transformer manufacturing, particularly in power electronics and power supply systems.

Constructed from high-quality N97 ferrite material for optimal magnetic properties. Core size conforms to ETD 59/31/22 dimensions ensuring compact and efficient design. AL rating of 5500 nH suitable for high-frequency transformer applications.

Maximum operating temperature rated at 180°C for reliable performance under heat stress. Ideal for use in switch mode power supply (SMPS) transformers with excellent weight to performance ratio. Conforms to IEC 61185 standards for transformer core quality and reliability.

Provided by TDK series B66397 with consistent manufacturing quality. Exact dimensions: Length 59.8 mm, Width 31.2 mm, Depth 22.1 mm for precise core fitting.

This transformer ferrite core is essential for industrial manufacturing, electronics assembly, power supply fabrication, and laboratory transformer prototyping. It provides designers and engineers with reliable material properties and industry compliance to create efficient and durable transformer products.

Explore more industrial-grade Transformer Cores and components with EnvMart’s extensive electronics and electricals category, ensuring quality and performance for your projects and production needs.
