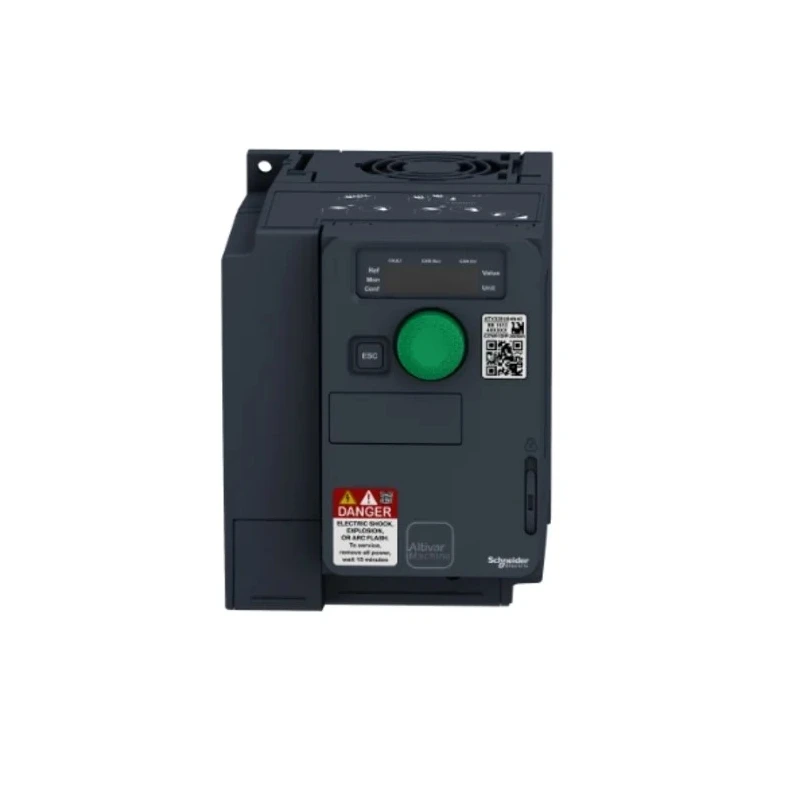

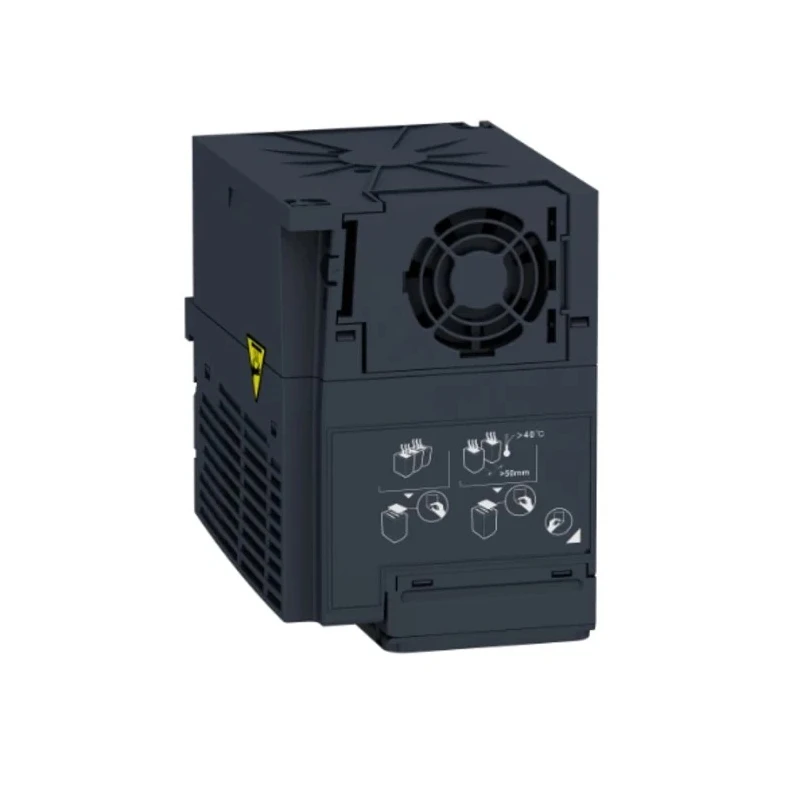

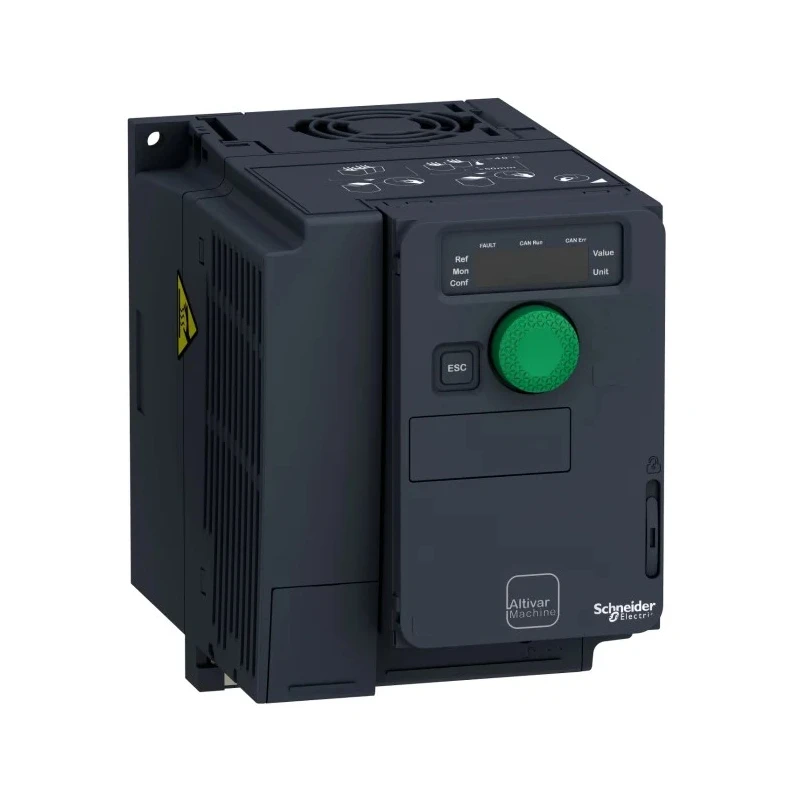

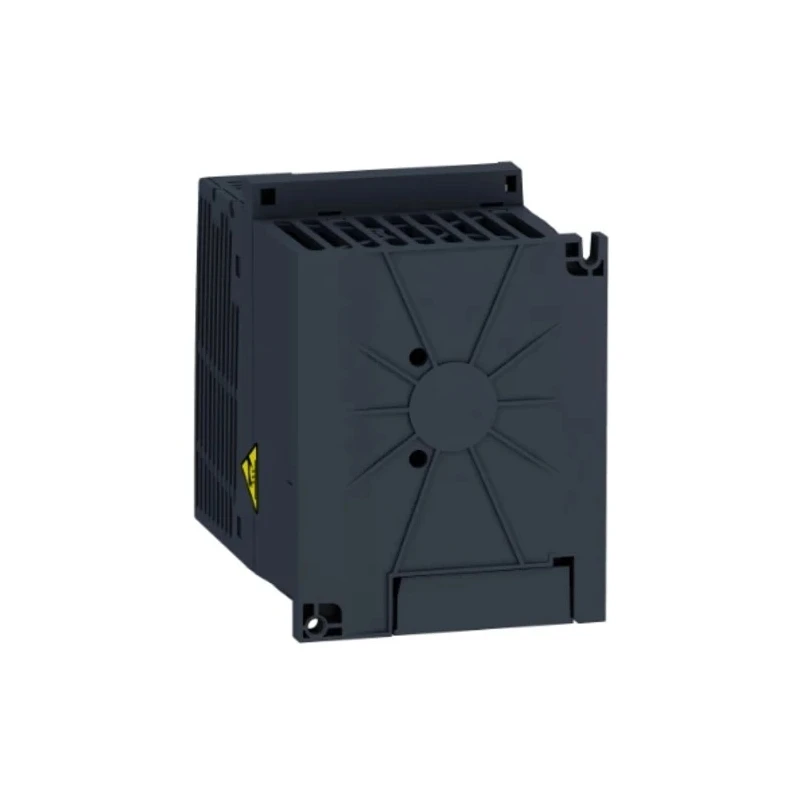

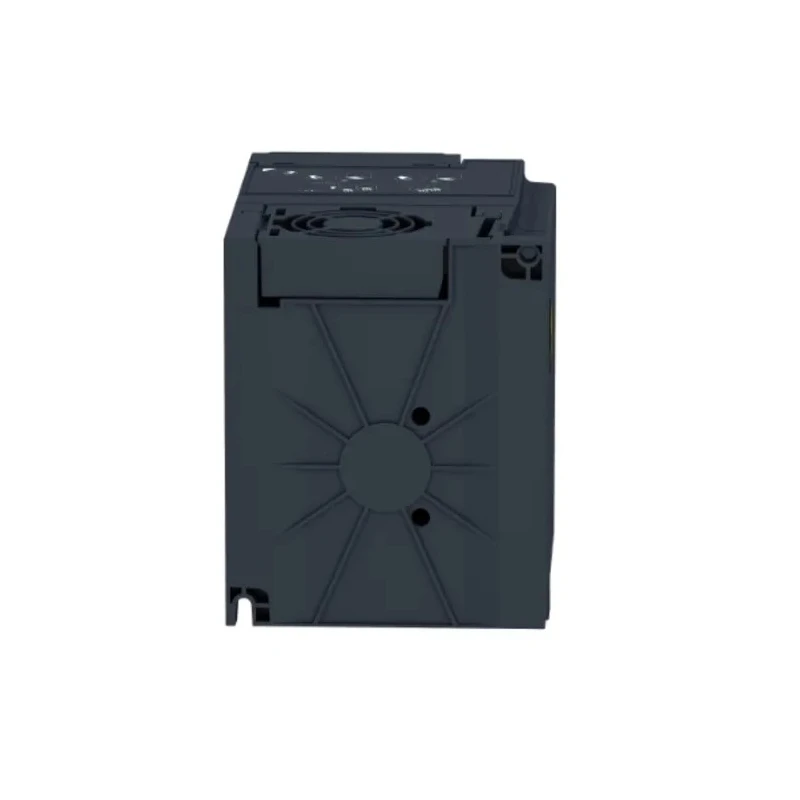

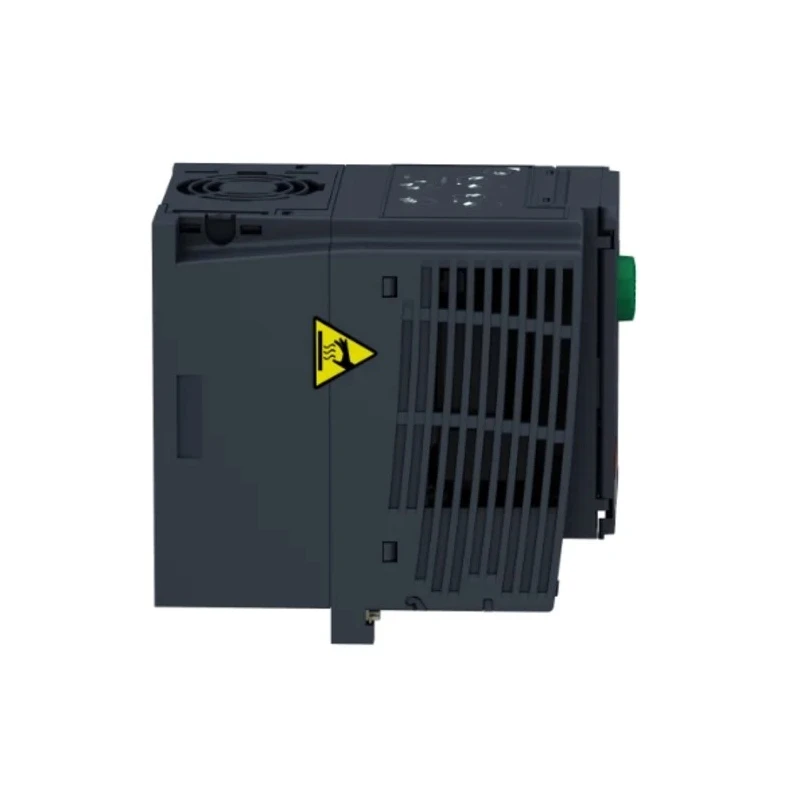

Schneider Electric Variable Speed Drive 1.1 kW 3 Phase Altivar Series ATV320U11N4C

Schneider Electric ATV320U11N4C Variable Speed Drive is a high-performance 3-phase Inverter Drive from the Altivar series, rated at 1.1 kW power and designed for use in demanding industrial environments. It provides precise control over synchronous and asynchronous motors, enabling optimized speed and torque adjustments that improve process efficiency and reduce energy consumption.

With a maximum output current of 3A and a wide output frequency range from 0.1 to 599 Hz, this drive is suitable for a broad range of machinery and automation equipment. Its compact size, with an overall width of 158mm, depth of 142mm, and length of 105mm, allows installation inside electrical cabinets and enclosures, making it highly adaptable to various industrial setups. The DIN rail mounting facilitates quick and secure attachment in control panels.

Designed for durability, the unit supports a broad operating temperature range from -10°C to +50°C without derating, maintaining reliable performance in harsh ambient conditions. The IP20 rating ensures the device is touch-proof, enhancing operator safety during maintenance and operation.

Advanced features include open-loop motor control for low-speed applications and start/stop processes, as well as PROFIBUS communication interface to streamline automation workflows. This model complies with a comprehensive set of international standards and safety regulations, including CE, CSA, cUL, UL, EN ISO 13849, and IEC certifications, assuring quality and regulatory compliance.

Typical industrial applications for the ATV320U11N4C include material-handling conveyors, automated labelling and bagging systems, and uses in the healthcare sector, supporting efficient and safe operations across diverse industries.

Supports 3-phase asynchronous and synchronous motors with a 1.1 kW rating and 3A output current. Compact form factor with DIN rail mounting and dimensions of 158mm (W) x 142mm (D) x 105mm (L). Wide temperature range operation from -10°C to 50°C ensuring use in challenging conditions.

PROFIBUS connectivity for enhanced automation and communication capabilities. IP20 rating for touch-proof protection enhancing workplace safety. Compliant with international standards such as CE, UL, IEC for quality and safety assurance.
