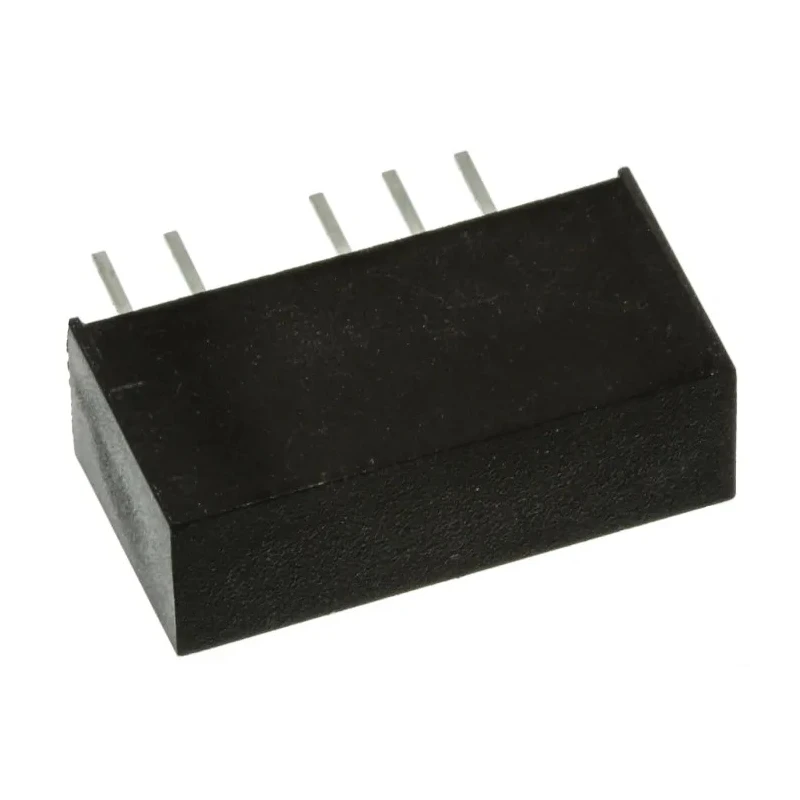

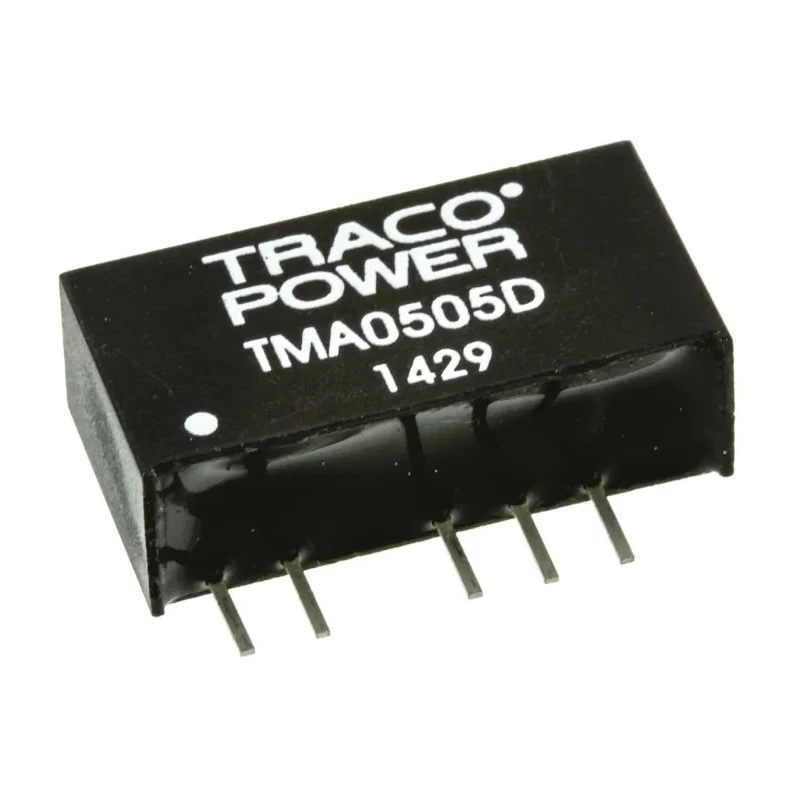

TRACOPOWER Isolated DC/DC Converter Dual Output ±5 V 100 mA, 5V DC Input 1 W SIP PCB Mount TMA 0505D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMA DC/DC Converter, 5V, -5 V/ 100 mA |
| Brand | TRACOPOWER |
| Efficiency | 72% |
| Length | 19.5mm |
| Model | TMA 0505D |
| Depth | 10.2mm |
| Mount Type | PCB |
| Series | TMA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 5000000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5V dc |
| Minimum Input Voltage | 0V |
| Number of Pins | 6 |
| Output Voltage 1 | 5, -5V |
| Output Current 1 | 100mA |
| Output Voltage Adjustment Range | 0/5 V |
| Isolation Voltage | 1kV dc |
Key Features
- Operates with a 5 V DC input voltage range of 4.5 to 5.5 V.
- Provides dual outputs of +5 V and -5 V with a maximum output current of 100 mA on each output.
- Features a compact SIP6 package designed for PCB mounting to save board space.
- Offers high efficiency of approximately 72% to optimize energy consumption.
- Ensures robust operation across a temperature range from -40°C to +85°C.
- Includes 1 kV DC input/output isolation voltage for enhanced safety in applications.
- Designed for use in automation systems, instrumentation, telecommunications, and medical equipment.
- Built-in limited short circuit protection with automatic recovery capability.
Product Description
TRACOPOWER TMA 0505D is a high-efficiency isolated DC/DC converter designed to deliver dual output voltages of +5 V and -5 V at 100 mA maximum current per output, supporting numerous low voltage electronic applications.
This converter operates with a 5 V DC input voltage, compatible within a 4.5 V to 5.5 V range, making it ideal for power distribution in compact PCB-mounted setups. The device is housed in a SIP6 package measuring approximately 19.5 mm in length and 10.2 mm in depth, which conserves board space and facilitates integration into electronic circuits.
Efficiency reaches up to 72%, optimizing energy usage and reducing heat generation. The unit maintains reliable operation over a wide temperature range from -40°C to +85°C, allowing use in diverse environmental conditions from industrial automation to medical instrumentation.
The TMA 0505D features a 1 kV DC isolation voltage between input and output, ensuring safe operation in critical applications. Additional benefits include limited short circuit protection with automatic recovery and a long mean time between failures (MTBF) rated at 5 million hours.
Operates with a wide input voltage range of 4.5 to 5.5 V DC. Delivers dual ±5 V outputs with 100 mA current capacity per output. Compact SIP6 package designed for PCB mount applications. High efficiency of 72% to minimize power losses.
Wide operating temperature from -40°C to +85°C for versatile environments. Provides 1 kV DC input-output isolation for enhanced safety. Includes limited short circuit protection with automatic recovery. Rated MTBF of 5,000,000 hours for long-term reliability.
Suitable for use in automation, telecommunications, instrumentation, and medical equipment.
This product is ideal for industrial, laboratory, telecommunications, medical, and manufacturing applications requiring stable dual voltage power supplies with safety isolation. TRACOPOWER offers reliable components engineered to meet demanding operational conditions.
Explore similar DC/DC Converters and power supply solutions at EnvMart for your next project or industrial application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a 5 V DC input voltage range of 4.5 to 5.5 V.
It provides dual outputs of +5 V and -5 V, with a maximum output current of 100 mA on each output.
The efficiency of this unit is approximately 72%, optimizing energy consumption.
It maintains reliable operation across a temperature range from -40°C to +85°C.
This model is housed in a compact SIP6 package designed for PCB mounting.
It features a 1 kV DC input/output isolation voltage for enhanced safety in applications.
Yes, it includes limited short circuit protection with automatic recovery capability.
The MTBF is rated at 5 million hours, indicating long-term reliability.
It measures approximately 19.5 mm in length and 10.2 mm in depth.
This converter is designed for use in automation systems, instrumentation, telecommunications, and medical equipment.
The maximum output power of the TMA 0505D is 1 W.
This model features two outputs.
