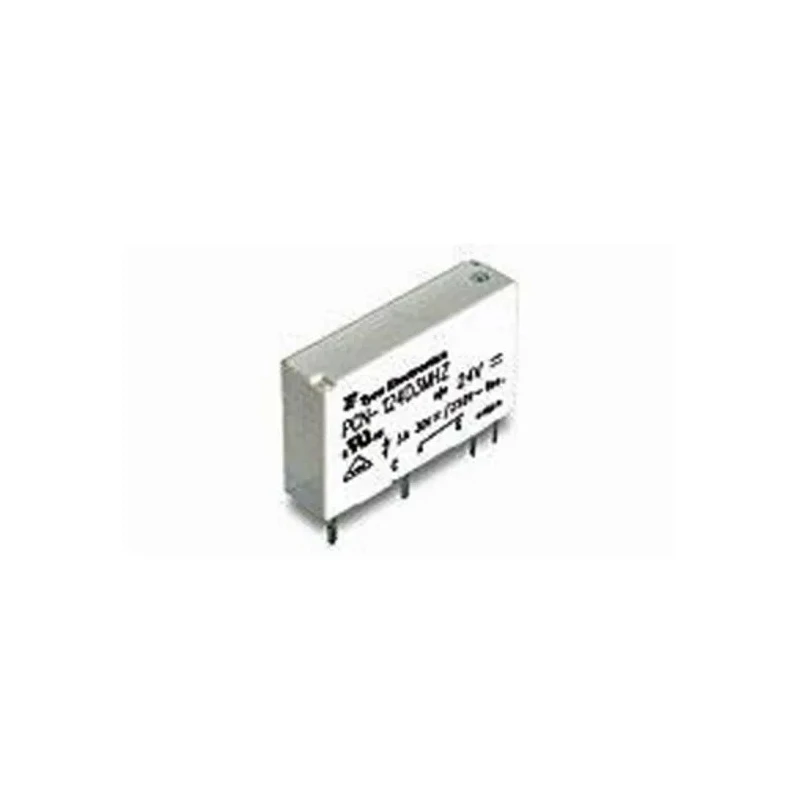

TE Connectivity PCB Power Relay, 5V DC Coil Voltage, 5A Switching Current, SPST Contact, Solder Terminal PCN-105D3MHZ,001B

TE Connectivity PCN-105D3MHZ,001B is a high-quality PCB power relay designed for reliable switching operations in electrical and industrial applications. Featuring a 5V DC coil voltage and capable of switching currents up to 5A, this SPST contact relay is suitable for precise control tasks on printed circuit boards.

The relay incorporates a solder terminal type, making it ideal for PCB mounting in compact electronic assemblies. With coil resistance of 208 ohms and coil power consumption at an efficient 120mW, it offers low power draw ensuring longer operational life.

Operating temperatures range from -40°C to +70°C, allowing it to function well in harsh environmental conditions found in industrial and automation systems. The relay supports switching voltages of up to 125V DC and 125V AC, suitable for a wide array of electrical loads.

Built with silver alloy contact material, the relay ensures excellent conductivity and durability for consistent performance over extended cycles. Its physical dimensions are compact with 20mm length, 12.5mm height, and 5mm width, facilitating easy integration into electronics systems.

Safety is enhanced with an 8mm creepage and clearance distance, protecting against electrical arcing and improving overall device reliability. This power relay complies with RoHS environmental standards, making it a responsible choice for sustainable practices.

The PCN series relay is engineered to meet strict global safety certifications, including UL, CSA, and VDE approvals. Typical applications include industrial automation, power control, signal conditioning, and general electronics where precise and reliable switching is critical.

Manufactured in China under rigorous quality controls, this TE Connectivity relay offers dependable performance for demanding electronic control environments. PCB mountable Power Relay with 5V DC coil voltage. 5A switching current with SPST contact configuration.

Low coil power consumption at 120mW and coil resistance of 208 ohms. Operating temperature range: -40°C to +70°C. Switching voltage rating up to 125V DC and 125V AC. Silver alloy contacts for reliable conductivity and durability.

Compact dimensions suitable for tight PCB layouts. RoHS compliant and safety approved (UL, CSA, VDE). Creepage and clearance distances for enhanced electrical safety. Ideal for industrial, automation, and electrical control applications.
