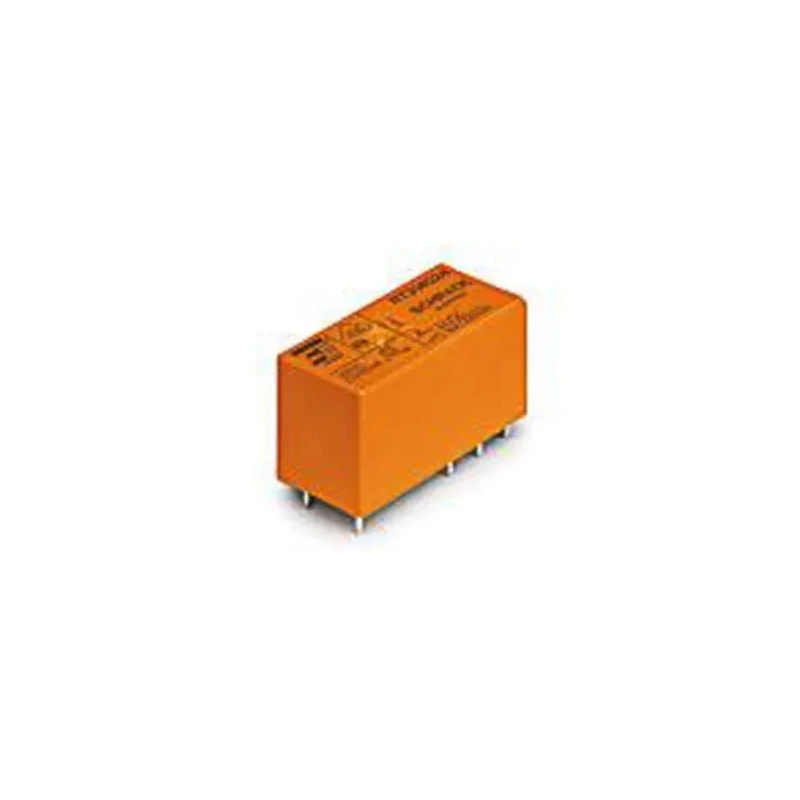

TE Connectivity PCB Power Relay 12V dc Coil 16A Switching Current SPST 2-1393240-7
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | UL E214025, IEC 60335-1, VDE Cert. No. 40007571, cCSAus 1142018 |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Operates with a 12V dc coil voltage providing reliable actuation.
- Supports a switching current of 16 amperes for effective load control.
- Single Pole Single Throw (SPST) contact configuration for simple on/off switching.
- Designed for PCB mounting with solder terminal type ensuring secure connections.
- Wide operating temperature range from -40°C to 85°C suitable for various environments.
- High switching AC voltage capacity up to 400V ac for versatile applications.
- Compact dimensions of 29mm length, 15.7mm height, and 12.7mm width optimize PCB space.
- Constructed with silver alloy contacts for durability and low contact resistance.
Product Description
TE Connectivity 2-1393240-7 PCB Power Relay is a high-quality miniature power relay designed for PCB mounting applications, featuring a 12V dc coil and a 16A switching current capacity with SPST contact configuration.
The relay belongs to the MSR series known for robust performance including high inrush current capability and reinforced insulation suitable for demanding electronic circuits.
Its compact design measures 29 x 12.7 x 15.7 mm, making it suitable for space-sensitive PCB layouts. The relay terminals are designed for solder mounting, ensuring a secure mechanical and electrical connection.
Constructed with silver alloy contacts, it guarantees low contact resistance and long service life. The coil resistance of 360 ohms limits current draw to 400mW, promoting efficient power usage.
It supports operational temperatures ranging from -40°C to +85°C, enabling reliable operation in industrial, commercial, and automotive environments. The relay meets various international certification standards including UL, IEC, VDE, and cCSAus, reflecting compliance with safety and performance requirements.
Operates with a 12V dc coil voltage providing reliable actuation. Supports a switching current of 16 amperes for effective load control. Single Pole Single Throw (SPST) contact configuration for simple on/off switching. Designed for PCB mounting with solder terminal type ensuring secure connections.
Wide operating temperature range from -40°C to 85°C suitable for various environments. High switching AC voltage capacity up to 400V ac for versatile applications. Compact dimensions of 29mm length, 15.7mm height, and 12.7mm width optimize PCB space.
Constructed with silver alloy contacts for durability and low contact resistance. Coil resistance of 360Ω consuming 400mW coil power for energy efficiency. Certified to UL E214025, IEC 60335-1, VDE, and cCSAus standards ensuring quality and safety.
This power relay is ideal for applications in industrial automation, electronic control systems, HVAC controls, and other electronic devices requiring reliable switching performance.
Explore the full range of Power Relays and related products at EnvMart for high-quality components optimized for professional applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of 16 amperes, allowing for effective load control in various applications.
It operates with a coil voltage of 12V dc, providing reliable actuation for connected circuits.
The relay features a Single Pole Single Throw (SPST) contact configuration, suitable for simple on/off switching applications.
This unit has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, optimizing PCB space.
It can handle a maximum switching AC voltage of 400V ac, making it versatile for various applications.
The relay operates effectively within a temperature range of -40°C to +85°C, suitable for diverse environments.
It is designed with solder terminals, ensuring secure mechanical and electrical connections on the PCB.
The contacts are constructed from silver alloy, which helps provide low contact resistance and durability.
The coil resistance is 360 ohms, which limits the current draw to promote efficient power usage.
It is certified to several international standards, including UL E214025, IEC 60335-1, VDE, and cCSAus, ensuring compliance with safety and performance requirements.
It is ideal for use in industrial automation, electronic control systems, HVAC controls, and other electronic devices requiring reliable switching performance.
The coil power consumption is 400mW, which contributes to its energy efficiency during operation.
