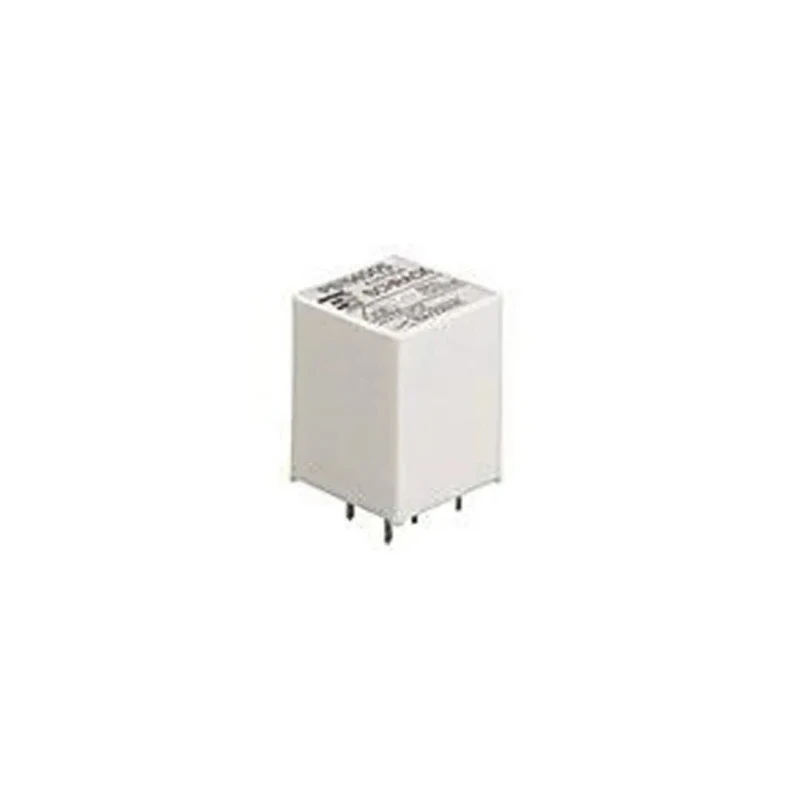

TE Connectivity PB Series PCB Power Relay 12V DC Coil 10A Switching Current SPST PB134012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 29.00 x 12.70 x 15.70 mm |
| Height | 20mm |
| Length | 15mm |
| Model | PB134012 |
| Width | 15mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | PB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 400Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 360mW |
Key Features
- Designed for PCB mounting with a solder terminal type.
- Operates reliably between -40°C and 85°C temperature range.
- Switching AC voltage rating of up to 400V AC.
- Compact dimensions of 29.00 x 12.70 x 15.70 mm for space-saving installations.
- Coil resistance of 400Ω and coil power consumption of 360mW for efficient operation.
- Silver alloy contact material ensures high conductivity and durability.
- Meets RoHS compliance standards.
- Manufactured in Austria ensuring quality and reliability.
Product Description
TE Connectivity PB134012 is a high-quality PB Series PCB Power Relay designed for precise switching applications in electrical and automation systems. Featuring a 12V DC coil with a low coil power rating of 360mW, this relay provides efficient performance and is optimized for PCB mounting with solder terminals for secure connections.
This power relay has a single-pole single-throw (SPST) contact configuration, delivering a switching current capacity of 10A and a switching AC voltage rating of up to 400V AC, making it suitable for a wide range of industrial, commercial, and electronic applications.
Engineered to operate reliably under harsh environmental conditions, it supports a minimum operating temperature of -40°C and a maximum of 85°C. The relay dimensions are compact at 29.00 x 12.70 x 15.70 mm, allowing easy integration into tight PCB layouts.
The contact material is a silver alloy, providing excellent conductivity and wear resistance to extend relay lifespan. RoHS compliant, this relay meets international environmental standards, making it an ideal solution for modern electronic designs.
Manufactured in Austria, the PB134012 relay reflects TE Connectivity's commitment to quality and rigorous manufacturing standards. Designed for PCB mounting with solder terminals for secure installation. 10A switching current capacity suitable for diverse electrical loads.
12V DC coil voltage with 360mW coil power consumption ensures energy efficiency. Wide operating temperature range from -40°C to 85°C for versatile use. Compact size supports integration in space-constrained applications.
Silver alloy contacts provide durability and excellent electrical performance. Compliance with RoHS environmental standards. Manufactured in Austria ensuring premium quality construction.
This product is well-suited for use in industrial automation, electrical equipment, manufacturing controls, HVAC systems, and other electronic control applications requiring a reliable power relay solution.
Explore other Power Relays and industrial electrical components at EnvMart to meet all your automation and control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 10A, making it suitable for various electrical loads.
The PB134012 operates with a 12V DC coil and has a coil power consumption of 360mW.
The relay has compact dimensions of 29.00 x 12.70 x 15.70 mm, facilitating easy integration into space-constrained applications.
It operates reliably between -40°C and 85°C, making it suitable for harsh environmental conditions.
This unit features a single-pole single-throw (SPST) contact configuration.
The relay can switch AC voltages of up to 400V AC, allowing it to handle various applications.
The contacts are made from silver alloy, which ensures high conductivity and durability.
This model is designed for PCB mounting and features solder terminals for secure connections.
Yes, the PB134012 meets RoHS compliance standards, ensuring it adheres to environmental regulations.
It is manufactured in Austria, reflecting high manufacturing standards and quality assurance.
The coil resistance of this relay is 400Ω, which contributes to its efficient operation.
This relay is suitable for use in industrial automation, electrical equipment, manufacturing controls, and HVAC systems.
