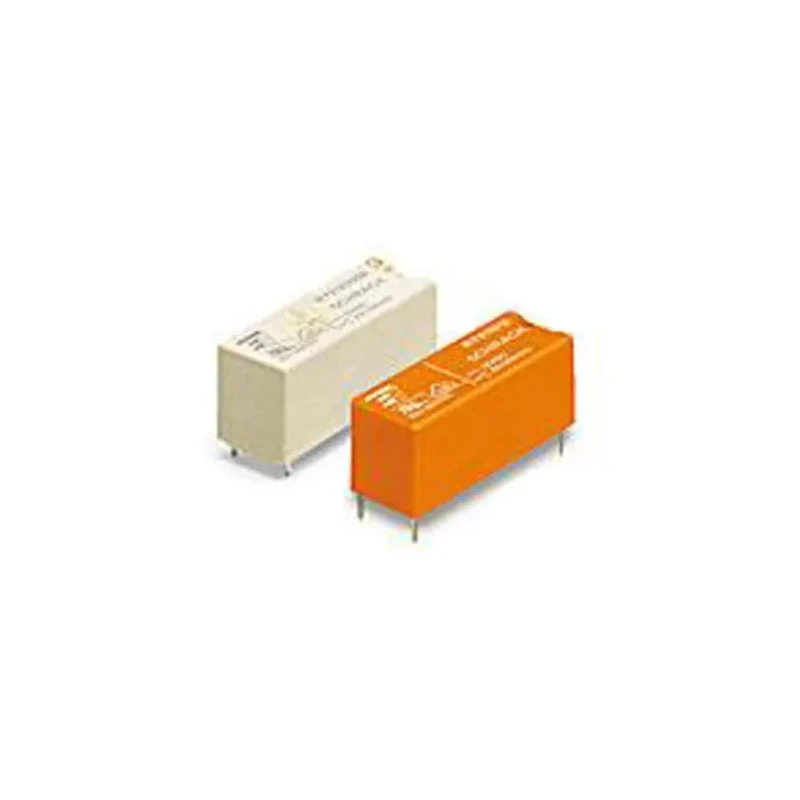

TE Connectivity PCB Power Relay 5V DC Coil 8A Switching Current SPDT RY612005

TE Connectivity RY612005 PCB Power Relay is a robust and compact component designed for various electrical and automation applications. Featuring a 5V DC coil and a Single Pole Double Throw (SPDT) contact configuration, this relay efficiently handles switching currents up to 8A and AC voltages up to 400V. The relay is mounted on printed circuit boards (PCB) using solder terminals, providing reliable electrical connections.

Designed for durability, the device operates within a temperature range from -40°C to 70°C, making it suitable for industrial, laboratory, domestic automation, and HVAC systems. Its coil resistance is 112 ohms with a power consumption of 223mW, ensuring efficient coil operation. The contact material used is silver alloy, which offers excellent conductivity and wear resistance for long service life.

The relay dimensions are meticulously engineered with a length of 28.5mm, width of 10.1mm, and height of 12.3mm, facilitating compact PCB integration. The product conforms to international standards including IEC 60335-1, UL E214025, and has VDE certification, underscoring its compliance and safety reliability.

This power relay is designed for PCB mounting with solder-type terminals. Built to operate reliably between -40°C and 70°C. Coil resistance is 112 ohms with coil power consumption of 223mW. It supports switching AC voltage up to 400V AC.

The contact material is silver alloy ensuring durability and conductivity. Compact dimensions include length 28.5mm, width 10.1mm, and height 12.3mm. Complies with IEC 60335-1, UL E214025, and VDE certification standards.

Ideal for applications in automation, interface circuits, domestic systems, security lighting, and heating systems. Manufactured in the Czech Republic ensuring high quality standards.

This TE Connectivity relay is part of the RT series (specifically RY II series) known for through-hole mounting and flux-proof pin configurations, enhancing reliability in demanding environments. It is especially suitable for industrial automation, home appliances, and security devices requiring precise and durable switching control.
