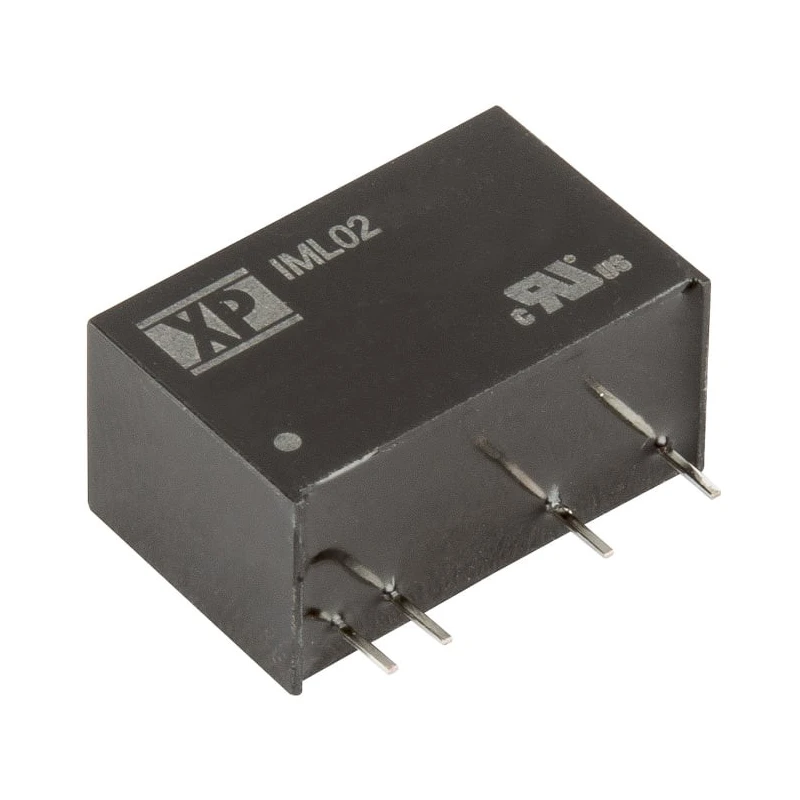

XP Power Isolated DC/DC Converter SIP7 Package 3V, -3 V Output, 300 mA, 13.2V DC Max Input 2 W IML02
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IML02 DC/DC Converter, 3V, -3 V/ 300 mA |
| Brand | XP Power |
| Efficiency | 75% |
| Length | 19.5mm |
| Model | IML02 |
| Depth | 12.5mm |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | IML02 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2500000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 13.2V dc |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 3, -3V |
| Output Current 1 | 300mA |
| Output Voltage Adjustment Range | ±5 V |
| Isolation Voltage | 4kV ac |
Key Features
- Features a space-efficient SIP7 package for easy PCB integration.
- Operates reliably over a wide temperature range from -40°C to +85°C.
- Supports input voltage range between 10.8 V and 13.2 V DC.
- Offers high isolation voltage of 4000 V AC and meets 1 x MOPP at 250 V AC for safety.
- Maintains 75% efficiency ensuring energy-efficient performance.
- Designed for medical and industrial applications requiring isolation and dual outputs.
- Includes industry-standard protection features for robustness and reliability.
Product Description
XP Power IML02 is an isolated DC/DC Converter designed for applications requiring dual output voltages of 3 V and -3 V at an output current of 300 mA with a maximum output power of 2 W. Housed in a SIP7 package, this converter integrates easily on PCB layouts and provides high reliability at operating temperatures ranging from -40°C to +85°C.
The converter supports a DC input voltage range of 10.8 V minimum to 13.2 V maximum, making it suitable for a variety of DC supply sources. The device achieves a high isolation voltage of 4000 V AC and complies with 1 x MOPP safety requirements at 250 V AC, ensuring compliance with stringent medical and industrial safety standards.
The efficiency of 75% ensures reduced power loss and better thermal performance. With 7 pins and compact dimensions, it is optimized for space-constrained applications. The IML02 series is constructed to deliver consistent performance with MTBF of 2,500,000 hours indicating high reliability.
The converter includes standard industry protection features to safeguard against electrical faults, making it a robust choice for medical equipment, laboratory instruments, industrial machinery, and other applications requiring isolated dual outputs.
Features a space-efficient SIP7 package. Wide operating temperature range from -40°C to +85°C. Supports DC input voltage range of 10.8 V to 13.2 V. High isolation voltage of 4000 V AC and 1 x MOPP at 250 V AC. 75% efficiency for energy savings.
Compact physical dimensions optimize space usage. High reliability with MTBF of 2.5 million hours. Suitable for medical and industrial applications.
This device is manufactured in Taiwan, Province Of China, and is ideal for applications in medical devices, industrial automation, test equipment, and other scenarios where isolated dual-output DC/DC conversion is critical. Browse the Electronics & Electricals category at EnvMart for similar high-quality converters and power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of 3 V and -3 V.
The maximum input voltage for the IML02 is 13.2 V DC.
It has an efficiency rating of 75%, ensuring reduced power loss during operation.
The IML02 operates reliably over a wide temperature range from -40°C to +85°C.
This converter features two outputs.
The isolation voltage is 4000 V AC, which meets safety requirements for medical applications.
The maximum output power of this model is 2 W.
It supports through-hole mounting, making it suitable for PCB integration.
The dimensions are 19.5 mm in length, 12.5 mm in depth, and 9.8 mm in width.
The mean time between failures (MTBF) for the IML02 is 2,500,000 hours, indicating high reliability.
It supports an input voltage range from 10.8 V to 13.2 V DC.
It is designed for medical and industrial applications requiring isolation and dual outputs.
