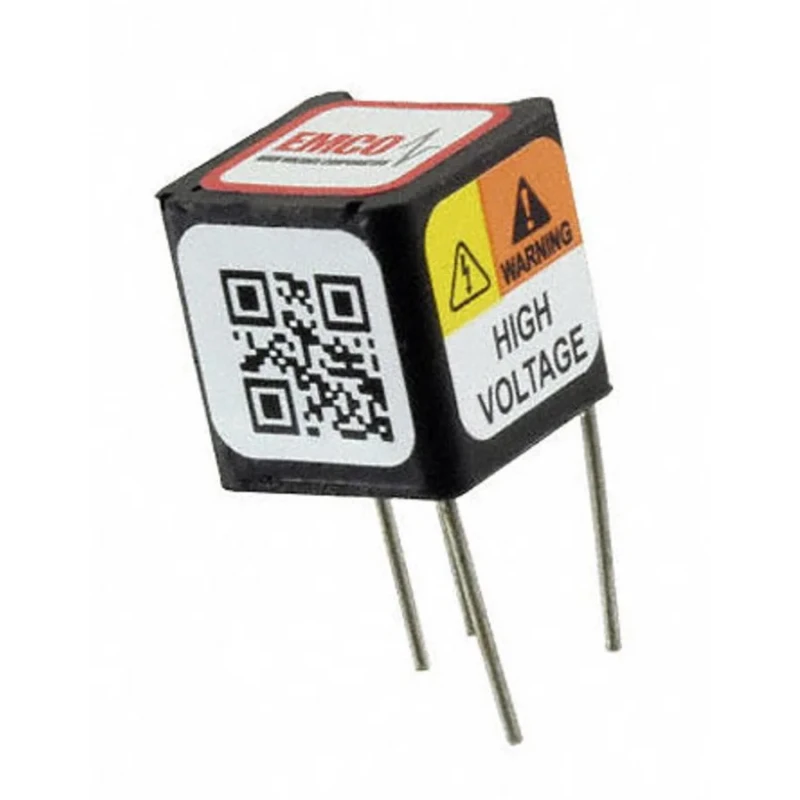

XP Power Isolated DC to High Voltage DC Converter Through Hole 0.5W 5V dc Input 100V dc Output Q01-5
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power Q DC/DC Converter, 100V dc/ 5 mA, 5V dc I |
| Brand | XP Power |
| Length | 12.7mm |
| Model | Q01-5 |
| Depth | 12.7mm |
| Gross Weight | 4.3g |
| Width | 12.7mm |
| Mount Type | Through Hole |
| Series | Q |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| MTBF | 3000000h |
| Number of outputs | 1 |
| Ripple and Noise | 1% Pk-Pk |
| Maximum Output Power | 0.5W |
| Maximum Input Voltage | 5V dc |
| Minimum Input Voltage | 0V dc |
| Output Voltage 1 | 100V dc |
| Output Current 1 | 5mA |
| Isolation Voltage | 500V dc |
Key Features
- The ultra miniature case ensures reliability in compact electronic systems.
- Input voltage range from 0V dc minimum to 5V dc maximum supports precise control.
- Output current is rated at 5mA with an output power of 0.5 watts.
- Operating temperature range from -25 °C to a maximum of 70 °C.
- Provides 500V dc isolation voltage for safety and noise reduction.
- Low ripple and noise at 1% peak-to-peak enhances signal integrity.
- Includes short circuit protection and low leakage current features.
- Designed for applications such as avalanche photodiodes, photomultiplier tubes, piezo devices, and electrophoresis.
Product Description
XP Power Q01-5 DC/DC Converter is a highly reliable and ultra miniature isolated DC to high voltage DC converter designed for demanding industrial and electronic applications. Featuring a through-hole mount, this 0.5 watt converter operates efficiently with a 5V dc input to deliver a 100V dc output current up to 5mA. It supports a wide temperature range from -25 °C to 70 °C, ensuring stable performance in varied environmental conditions.
The converter exhibits excellent isolation at 500V dc, protecting circuits from noise and potential damage. It features low ripple and noise levels of 1% peak-to-peak, maintaining signal clarity and system reliability. Short circuit protection and low leakage current enhance durability and safety during operation.
This product's ultra miniature case size allows it to be integrated in compact electronic equipment, saving space without compromising performance. Typical applications include avalanche photodiodes, photomultiplier tubes, piezoelectric devices, electrophoresis instruments, sustaining ion pumps, printers, igniters, capacitor charging, and similar specialized industrial uses.
The Q Series converter requires no external components for operation, simplifying design and reducing development time. The ultra miniature case provides a compact solution for high voltage conversion. Input voltage range from 0V dc to 5V dc allows flexible operation.
Output current rated at 5mA with 0.5W power output. 500V dc isolation voltage ensures electrical safety and noise reduction. Low ripple and noise enhances overall signal stability. Operating temperature from -25 °C to 70 °C suits diverse environments.
Through-hole mounting provides robust PCB installation. Applications span across industrial, laboratory, and electronic instrumentation sectors. Explore XP Power DC/DC Converters for superior performance in power supplies and voltage conversion needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 0V dc to 5V dc.
It provides a maximum output voltage of 100V dc and an output current of 5mA.
The operating temperature range is from -25 °C to a maximum of 70 °C.
This converter has a maximum output power of 0.5 watts.
It features a through-hole mounting type, allowing for robust PCB installation.
The Q01-5 offers an isolation voltage of 500V dc, ensuring safety and noise reduction.
It has low ripple and noise levels of 1% peak-to-peak, which enhances signal integrity.
The dimensions of this model are 12.7mm x 12.7mm x 12.7mm, and it weighs 4.3g.
This model is designed for applications such as avalanche photodiodes, photomultiplier tubes, and electrophoresis instruments.
Yes, it includes short circuit protection and low leakage current features for enhanced safety during operation.
The MTBF for this model is rated at 3,000,000 hours.
The country of origin for this converter is the United States.
