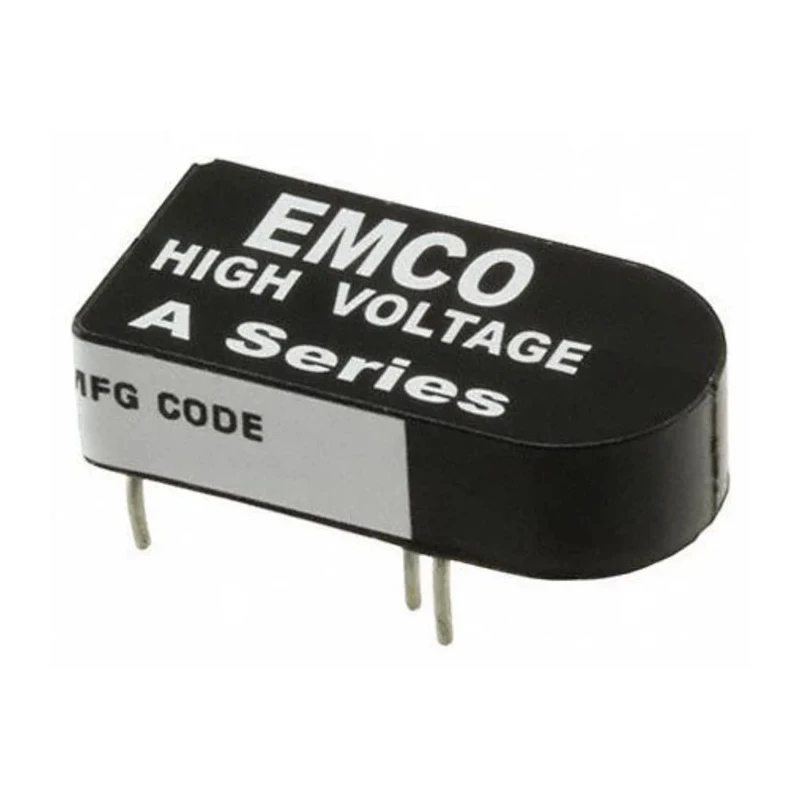

XP Power A DC/DC Converter 1kV DC 1mA Output, 12V DC Input, Through Hole, 1W, Operating Temp -25°C to 75°C A10P-12

XP Power A10P-12 DC/DC Converter delivers an isolated output voltage of 1kV DC at 1mA current with a compact through hole mount form factor, making it ideal for circuit board integration in electronic systems.

Operating from a 0V to 12V DC input range, this 1W power converter operates reliably across a wide temperature range from -25°C to a maximum of 75°C. The unit features galvanic isolation with a 500V rating, providing safety and noise reduction in sensitive electronics.

Its low ripple and noise of 0.79% peak-to-peak ensures a clean power output suitable for critical instrumentation such as avalanche photodiodes, photomultiplier tubes, electrophoresis devices, piezoelectric systems, and sustaining ion pumps.

Equipped with a quasi-sinewave oscillator and low leakage control pin, it operates efficiently without requiring external components or minimum load, and includes 1 minute minimum short circuit protection for robustness.

With a mean time between failures (MTBF) of 1,862,000 hours, this converter ensures dependable long-term operation in industrial, laboratory, and medical environments. This product is manufactured in the United States and complies with RoHS standards, suitable for use in designs requiring restricted hazardous substances.

Ultra miniature size with 23.37mm length and 11.43mm width. Galvanic isolation and low ripple output for noise sensitive applications. Wide temperature operating range from -25°C to 75°C. High reliability with 1,862,000 hours MTBF.

Applications in photomultiplier tubes, piezoelectric devices, and medical instrumentation.

XP Power DC/DC Converters are recognized for their compact design and reliability in power management for specialized industrial and scientific applications. Explore EnvMart’s electronics converters for more precision components.
