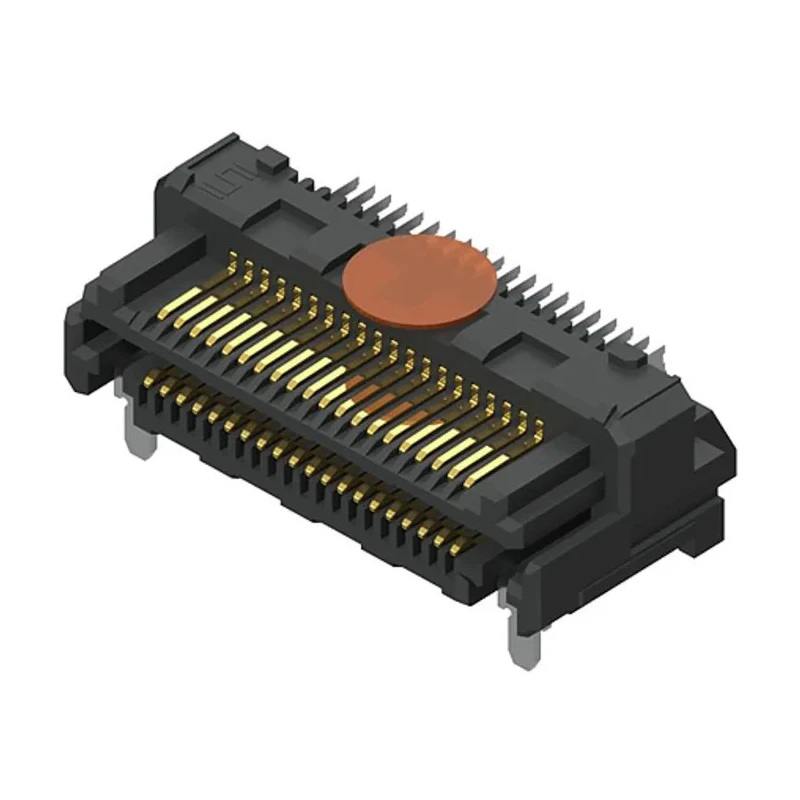

Samtec LSHM Series Right Angle Surface PCB Header, 60 Contact, 0.5 mm Pitch, 2 Row, Shrouded LSHM-130-01-L-DH-A-N-K-TR

Samtec LSHM-130-01-L-DH-A-N-K-TR is a high-performance, right angle surface mount PCB header featuring 60 contacts with a 0.5 mm pitch arranged in 2 rows. Designed with a shrouded, hermaphroditic style, this board-to-board connector is ideal for applications requiring dense, high-speed, and reliable electrical connections.

The housing is crafted from liquid crystal polymer, providing excellent mechanical strength and thermal stability for operation from -55°C up to 125°C. The phosphor bronze contacts are gold plated to ensure low resistance and long-term performance at currents up to 1.9 A. This connector supports voltages of 160 and 226V AC, enabling robust operation in demanding electronic environments.

Featuring a slim, ruggedized design, the LSHM series connectors provide high-speed data transfer rates up to 23 Gbit/s for vertical mounts and 19 Gbit/s for horizontal mounts, facilitated by razor beam contacts with undercut retention notches that produce a secure audible click when mated.

This series is well suited for industrial, telecommunications, computing, and other electronic systems where reliable, fine-pitch, high-density connections are critical. The self-mating hermaphroditic design reduces the need for mating hardware and lowers inventory complexity.

High-density, right-angle board-to-board connector with 60 contacts. Liquid crystal polymer housing for durability and thermal stability. Gold-plated phosphor bronze contacts for excellent conductivity. Operates efficiently across wide temperature range and voltage ratings.

Slim, ruggedized design supports high speed up to 23 Gbit/s. Shrouded and hermaphroditic configuration simplifies inventory management. Suitable for industrial, telecommunications, and computing applications. Explore more in the PCB Headers category for suitable high-performance electronic connection solutions.
