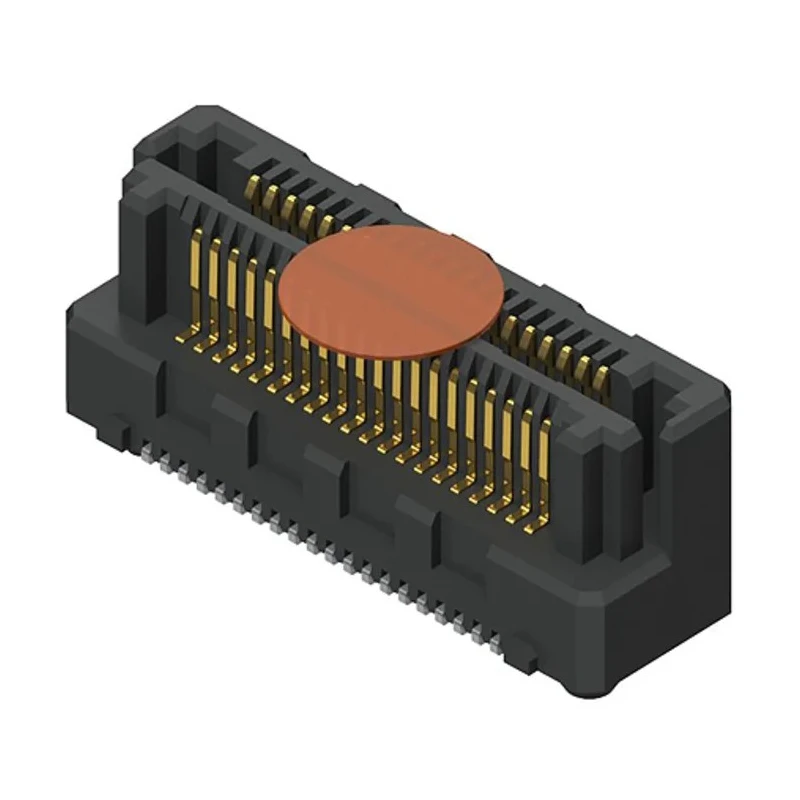

Samtec LSHM Series Straight Surface PCB Header 60 Contacts 0.5 mm Pitch 2 Row Shrouded LSHM-130-04.0-L-DV-A-N-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec LSHM Series Straight Surface PCB Header 60 Contacts 0.5 mm Pitch 2 Row Shrouded LSHM-130-04.0-L-DV-A-N-K-TR

Name: Samtec LSHM Series Straight Surface PCB Header 60 Contacts 0.5 mm Pitch 2 Row Shrouded LSHM-130-04.0-L-DV-A-N-K-TR
Brand: Samtec
SKU: 141520
Price: 7.19 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	160, 226V ac
Brand	Samtec
Orientation	Straight
Current	2A
Model	LSHM-130-04.0-L-DV-A-N-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	LSHM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	60
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

High-speed board-to-board hermaphroditic SMT connector strips.
Features a slim, ruggedized 0.5 mm pitch design for high density.
Shrouded male contacts made of phosphor bronze with gold plating.
Supports up to 2 Amp current with a maximum operating temperature of 125°C.
Designed for surface mount on PCBs with hermaphroditic self-mating style.
High mating/unmating force with audible click indication for secure connection.
Applicable in high-speed, high-density parallel, perpendicular, and coplanar systems.
Operating temperature range from -55°C to 125°C for durability.

Product Description

Samtec LSHM-130-04.0-L-DV-A-N-K-TR is a straight surface mount PCB header designed for high-speed board-to-board connections. It features 60 contacts arranged in 2 rows with a fine 0.5 mm pitch and a shrouded housing made from liquid crystal polymer. This product is engineered for demanding industrial and electronic applications requiring reliable and dense interconnections.

The LSHM series connectors use hermaphroditic SMT connector strips with razor beam contacts plated in gold over phosphor bronze, ensuring excellent electrical conductivity and corrosion resistance. The self-mating design reduces inventory needs and provides flexibility with multiple stack heights from 5 mm to 12 mm when combined with other LSHM series connectors.

The connector supports a nominal current of 2A, and is capable of operating over a wide temperature range from -55°C to 125°C, making it suitable for use in harsh environmental conditions. The high mating and unmating force provides a secure and reliable connection, with an audible click confirming proper engagement.

Applications include industrial, manufacturing, and high-speed electronic communication systems where dense, board-level interconnections are critical. The connector’s surface mount allows easy integration onto printed circuit boards in commercial and industrial electronic devices.

High-speed, high density up to 23 Gbit/s data rates. Slim ruggedized design for space-saving PCB layouts. Hermaphroditic design reduces inventory costs and simplifies mating. Razor beam gold-plated contacts for reliable electrical performance.

Wide operating temperature range of -55°C to 125°C ensures durability. Supports standard surface mount PCB assembly processes. Shrouded male contact for protection and secure fit.

Samtec’s LSHM series connectors are widely used in industrial electronics, telecommunications, computing, and aerospace applications. Browse more high-quality PCB Headers and connectors in the Electronics Components category at EnvMart for your project needs.
